SKU: HK2220-MB

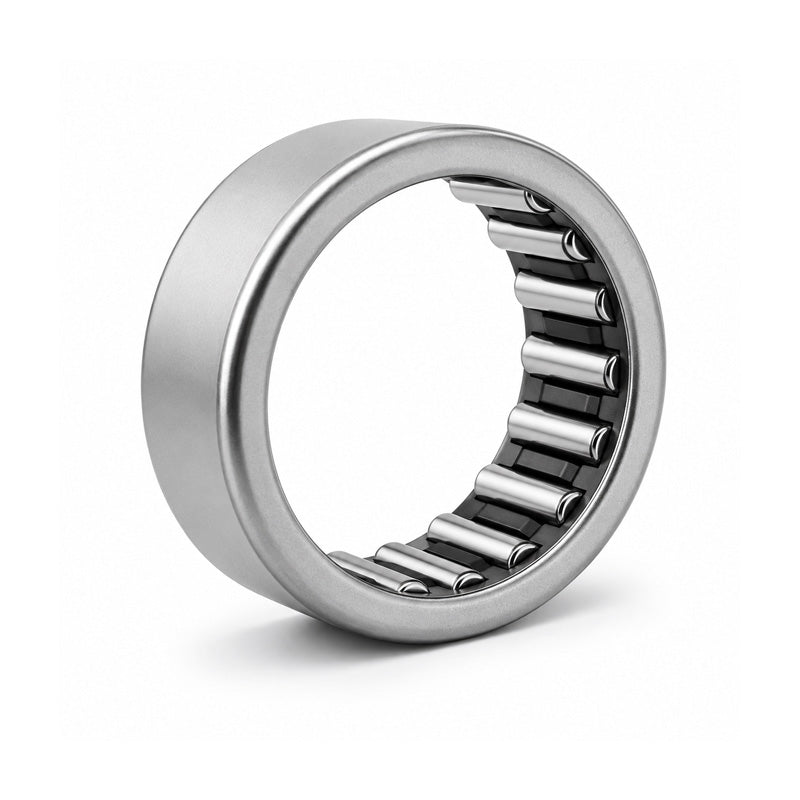

Major Brand HK2220 Drawn Cup Type Needle Roller Bearing with Two Open Ends 22x28x20mm
- Regular price
- €7.99 ex VAT
- Sale price
- €7,99
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€7.11
19
€6.71
29
€6.63
39
€6.55
49
€6.47
74
€6.39
99
€5.99
199
€5.91
249
€5.83
499
€5.75
999
€5.59
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 22mm |
| D | = | 28mm |
| C | = | 20mm |
| Dynamic load | = | 15700 N |
| Static load | = | 29000 N |
| Fatigue load limit Pu | = | 3450 N |
| Speed in grease | = | 8000 rpm |
| Speed in oil | = | 12000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 23mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR17x22x23 |
| Seal | = | G/SD22x28x4 |
| Weight | = | 26 g |
