SKU: HK3512-MB

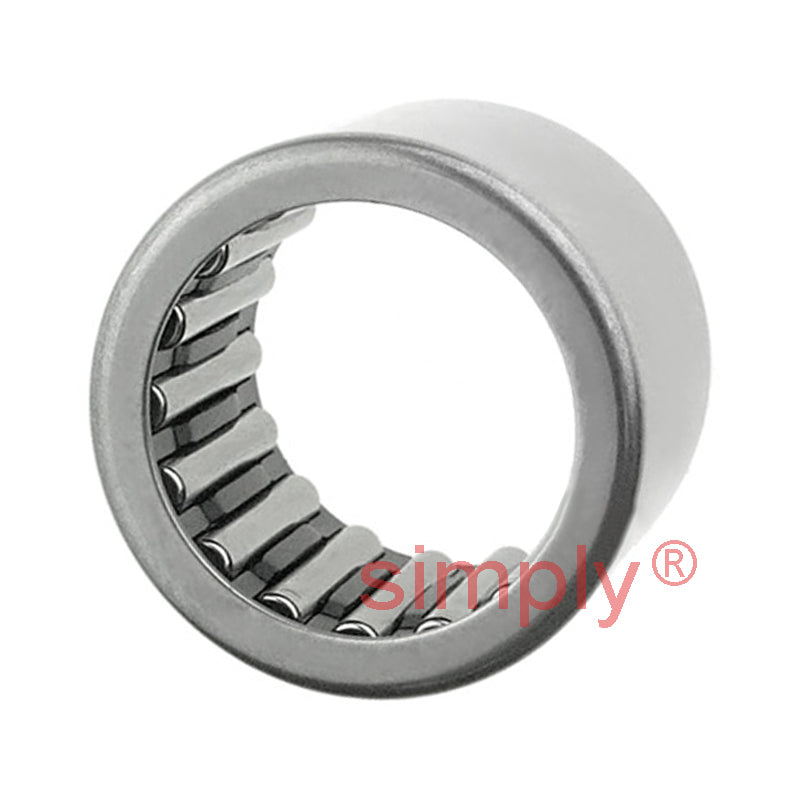

Major Brand HK3512 Drawn Cup Type Needle Roller Bearing with Two Open Ends 35x42x12mm
- Regular price
- €9.64 ex VAT
- Sale price
- €9,64
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€8.58
19
€8.10
29
€8.00
39
€7.90
49
€7.81
74
€7.71
99
€7.23
199
€7.13
249
€7.04
499
€6.94
999
€6.75
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 35mm |
| D | = | 42mm |
| C | = | 12mm |
| Dynamic load | = | 12500 N |
| Static load | = | 21600 N |
| Fatigue load limit Pu | = | 2450 N |
| Speed in grease | = | 5600 rpm |
| Speed in oil | = | 8000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 37mm |
| ra max | = | 0.8mm |
| Seal | = | G/SD35x42x4 |
| Weight | = | 27 g |
