SKU: HK4018RS-MB

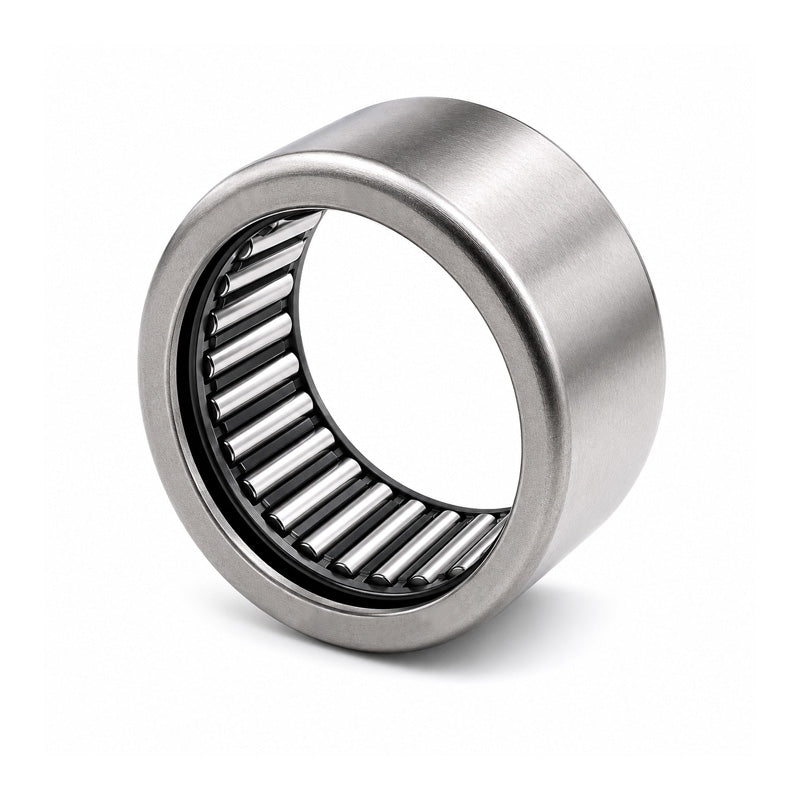

Major Brand HK4018RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 40x47x18mm
- Regular price
- €16.01 ex VAT
- Sale price
- €16,01
- Regular price
-
In stock
Quantity Price Breaks
10
€14.25
19
€13.45
29
€13.29
39
€13.13
49
€12.97
74
€12.81
99
€12.01
199
€11.85
249
€11.69
499
€11.53
999
€11.21
SKU:
HK4018RS-MB
Major Brand HK4018RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 40x47x18mm
- Regular price
- €16.01 ex VAT
- Sale price
- €16,01
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 40mm |
| D | = | 47mm |
| C | = | 18mm |
| Dynamic load | = | 19000 N |
| Static load | = | 39000 N |
| Fatigue load limit Pu | = | 4550 N |
| Speed in grease | = | 4500 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 42mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR35x40x20.5 |
| Weight | = | 45 g |
