SKU: HK4518RS-MB

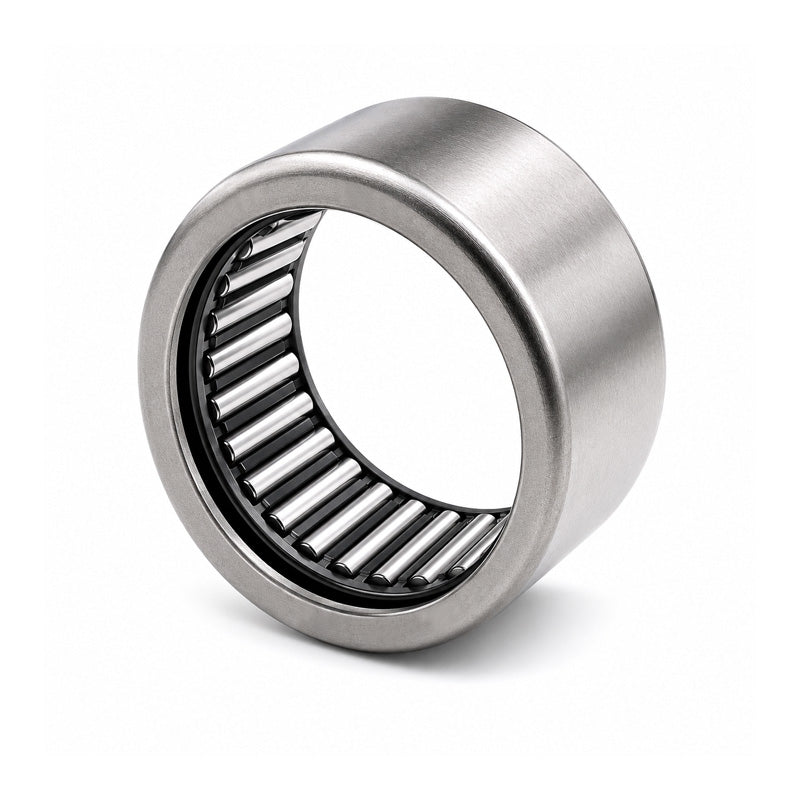

Major Brand HK4518RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 45x52x18mm
- Regular price
- €17.92 ex VAT
- Sale price
- €17,92
- Regular price
-
In stock
Quantity Price Breaks
10
€15.95
19
€15.05
29
€14.87
39
€14.69
49
€14.52
74
€14.34
99
€13.44
199
€13.26
249
€13.08
499
€12.90
999
€12.54
SKU:
HK4518RS-MB
Major Brand HK4518RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 45x52x18mm
- Regular price
- €17.92 ex VAT
- Sale price
- €17,92
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 45mm |
| D | = | 52mm |
| C | = | 18mm |
| Dynamic load | = | 20500 N |
| Static load | = | 43000 N |
| Fatigue load limit Pu | = | 5100 N |
| Speed in grease | = | 4300 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 47mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR40x45x20.5 |
| Weight | = | 50 g |
