SKU: HMV-126-EBF-HN-SNR

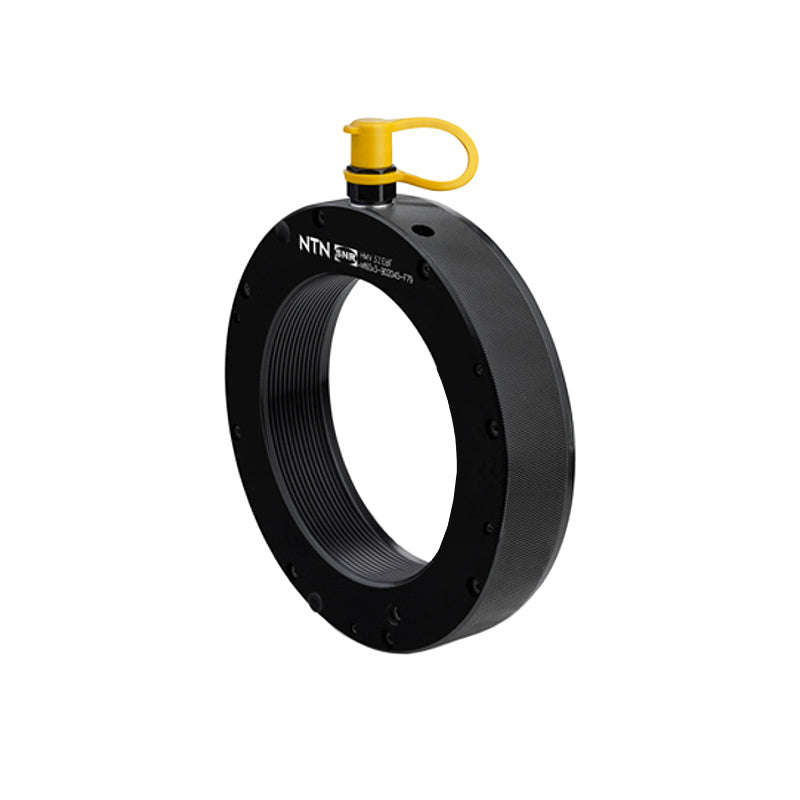

SNR HMV126 Metric Hydraulic Nut with Tr630x6 Thread - Allow 2-3 Days
- Regular price
- €8.690.94 ex VAT
- Sale price
- €8.690,94
- Regular price
-
Not in stock
Quantity Price Breaks
3
€7.734.94
5
€7.300.39
9
€7.213.48
19
€7.126.57
49
€7.039.66
74
€6.952.75
99
€6.518.21
199
€6.431.30
249
€6.344.39
499
€6.257.48
999
€6.083.66
SKU:
HMV-126-EBF-HN-SNR
SNR HMV126 Metric Hydraulic Nut with Tr630x6 Thread - Allow 2-3 Days
- Regular price
- €8.690.94 ex VAT
- Sale price
- €8.690,94
- Regular price
-
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.

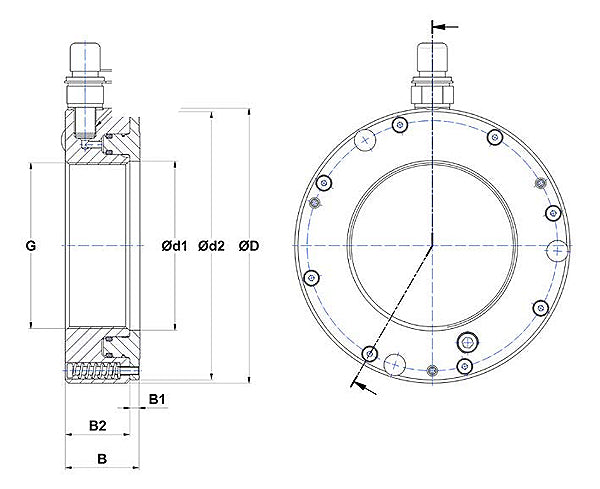

Technical
| HMV | = | HMV126 |
| Thread G | = | Tr630x6 |
| Outside Diameter D | = | 782mm |
| Total Width B | = | 88mm |
| Piston Diameter max. d2 | = | 776mm |
| Permitted Piston Stroke | = | 23mm |
| Flange Width B1 | = | 14mm |
| Body Width B2 | = | 74mm |
| Diameter d1 | = | 632mm |
| Piston Surface Area | = | 72850mm2 |
| Weight | = | 110.2kg |
