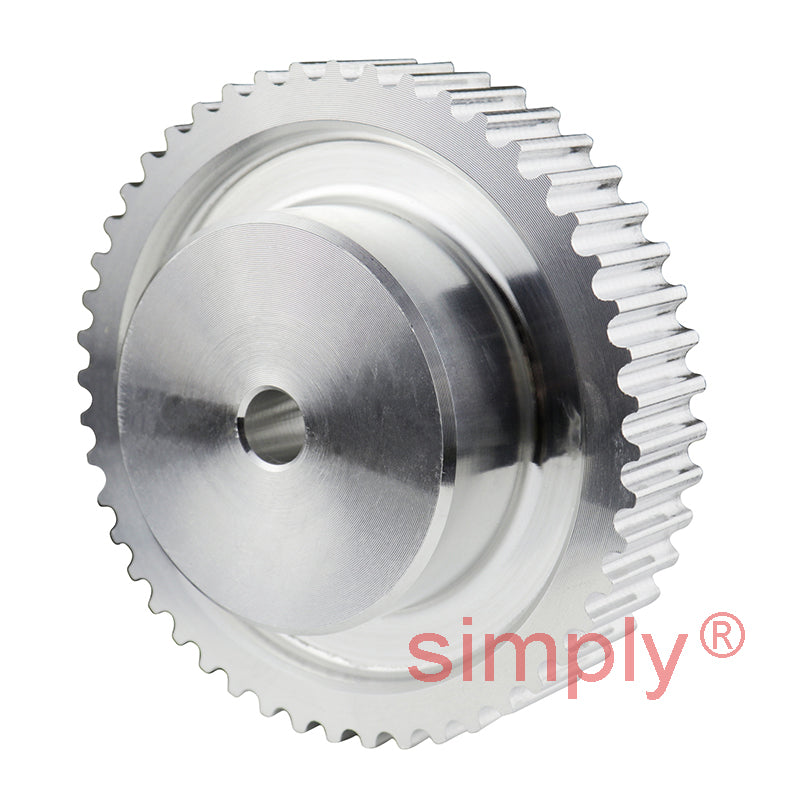

P192-14M-85 - 14mm Pitch 192 Tooth Flangeless HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

SKU: HP192-14M-85

P192-14M-85 - 14mm Pitch 192 Tooth Flangeless HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

€1.085.19 ex VAT
€1.085,19
ex VAT
Equivalent to: 19214M85
Not in stock

Quantity Price Breaks

3 €965.82
5 €911.56
9 €900.71
19 €889.86
49 €879.00
74 €868.15
99 €813.89
199 €803.04
249 €792.19
499 €781.34
999 €759.63
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
P192-14M-85 - 14mm Pitch 192 Tooth Flangeless HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts
SKU: HP192-14M-85

P192-14M-85 - 14mm Pitch 192 Tooth Flangeless HTD Type Cast Iron Pilot Bore Timing Pulley for 85mm Wide Belts

€1.085.19 ex VAT
€1.085,19
ex VAT

Description

HTD Pilot Bore Timing Pulley: High Torque Drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

Technical

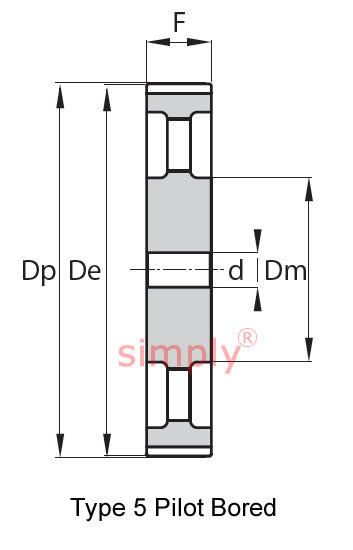

--- = Pulley Dimensions
Pitch = 14mm
Number of Teeth = 192
Type = 5 Pilot Bore
Dp = 855.62mm
De = 852.82mm
= Dm
165mm = F
102mm = L
102mm = Pilot Bore - nominal
32mm = Weight
50.00kg = N/A
