SKU: HRC130B-MB
Major Branded HRC130B-MB HRC Coupling Single Flange Pilot Bored Max Bore 60mm
- Regular price
- €25.47 ex VAT
- Sale price
- €25,47
- Regular price
-
Quantity Price Breaks
Major Branded HRC130B-MB HRC Coupling Single Flange Pilot Bored Max Bore 60mm
- Regular price
- €25.47 ex VAT
- Sale price
- €25,47
- Regular price
-
Description

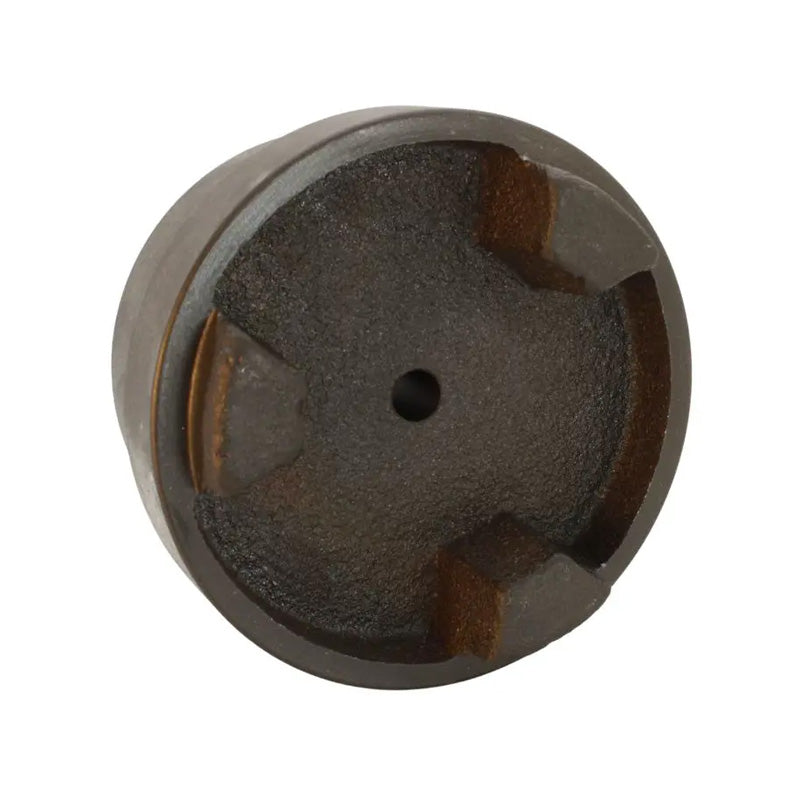

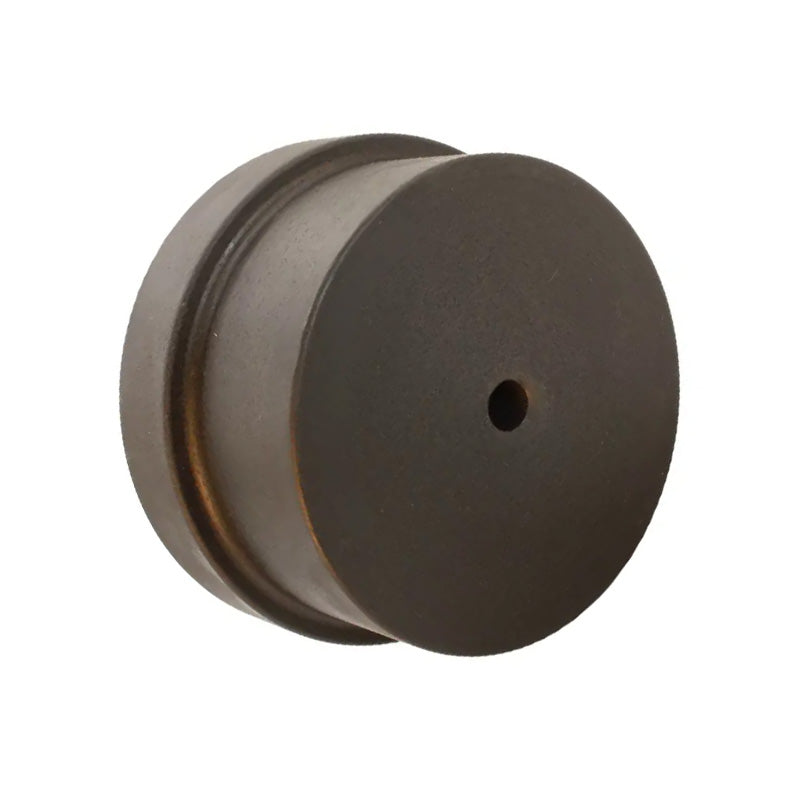

Branded HRC Coupling Single Pilot Bored: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight-edge methods. The shaft connection is "fail-safe" due to the interacting dog design.
These coupling flanges have pilot bores and will require machining to your application requirements.
Please Note: The diameter of the pilot bore is approximate and can vary between brands.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
Technical

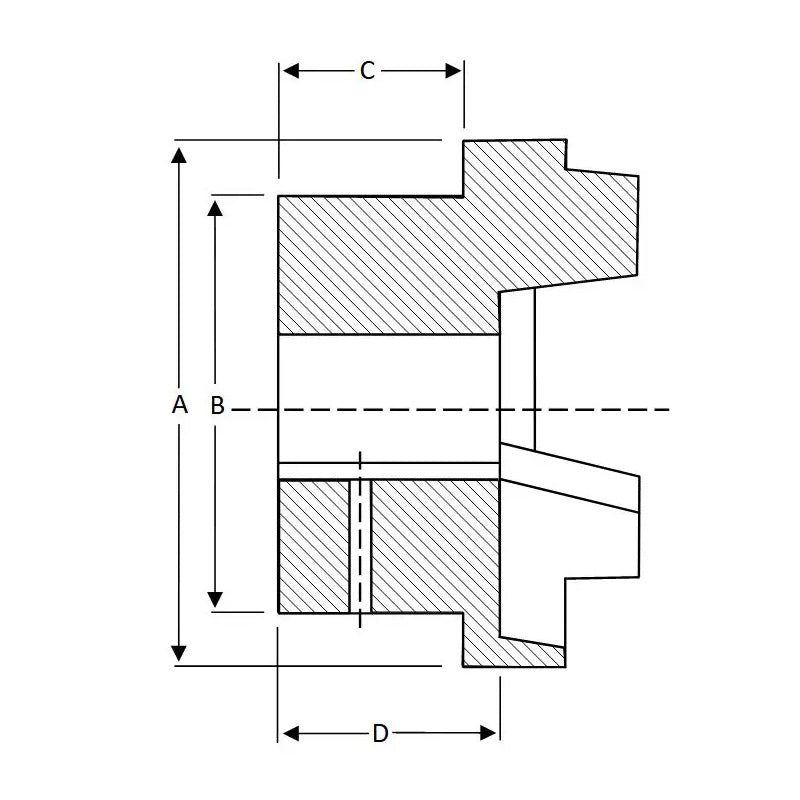

| Nominal Torque | = | 315 Nm |
| Overall Diameter A | = | 130mm |
| Hub Diameter B | = | 105mm |
| Assembled Length F | = | 53.5mm |
| Insert Bore Dia E | = | 50mm |
| Insert Width G | = | 36.5mm |
| Parallel Misalignment | = | 0.4mm |
| Weight | = | 4kg |
| L width | = | 131.5mm< |
| sup> | = | 3< |
| /sup> | = | |
| Max Bore | = | 60mm |
| Pilot Bore (Approx) | = | 15mm |
| Keyway Screw Size | = | M10mm |
| Shoulder Width D | = | 39mm |
| Hub Width C | = | 47.5mm |
| Max Power at 100 rpm | = | 3.3 kW |
| Max Power at 200 rpm | = | 6.6 kW |
| Max Power at 400 rpm | = | 13.2 kW |
| Max Power at 600 rpm | = | 19.8 kW |
| Max Power at 720 rpm | = | 23.8 kW |
| Max Power at 800 rpm | = | 26.4 kW |
| Max Power at 960 rpm | = | 31.7 kW |
| Max Power at 1200 rpm | = | 39.6 kW |
| Max Power at 1440 rpm | = | 47.5 kW |
| Max Power at 1600 rpm | = | 52.8 kW |
| Max Power at 1800 rpm | = | 59.4 kW |
| Max Power at 2000 rpm | = | 66 kW |
| Max Power at 2200 rpm | = | 72.6 kW |
| Max Power at 2400 rpm | = | 79.2 kW |
| Max Power at 2600 rpm | = | 85.8 kW |
| Max Power at 2880 rpm | = | 95 kW |
| Max Power at 3000 rpm | = | 99 kW |
| Max Power at 3600 rpm | = | 118 kW |
| Nominal Torque (Nm) | = | 315 Nm |
| Max Torque | = | 720 Nm |
