SKU: HRC150B-MB

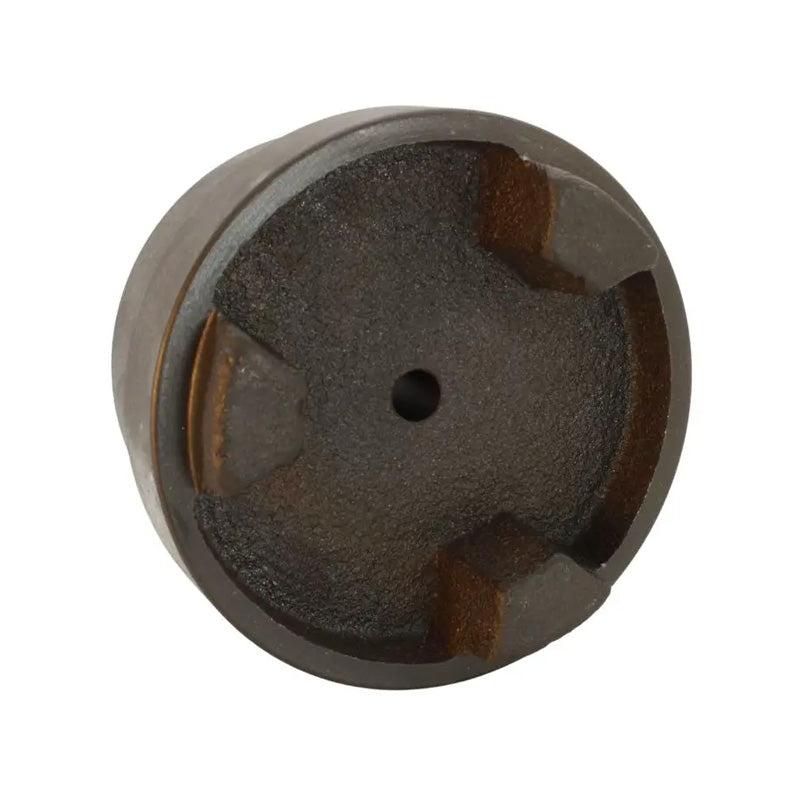

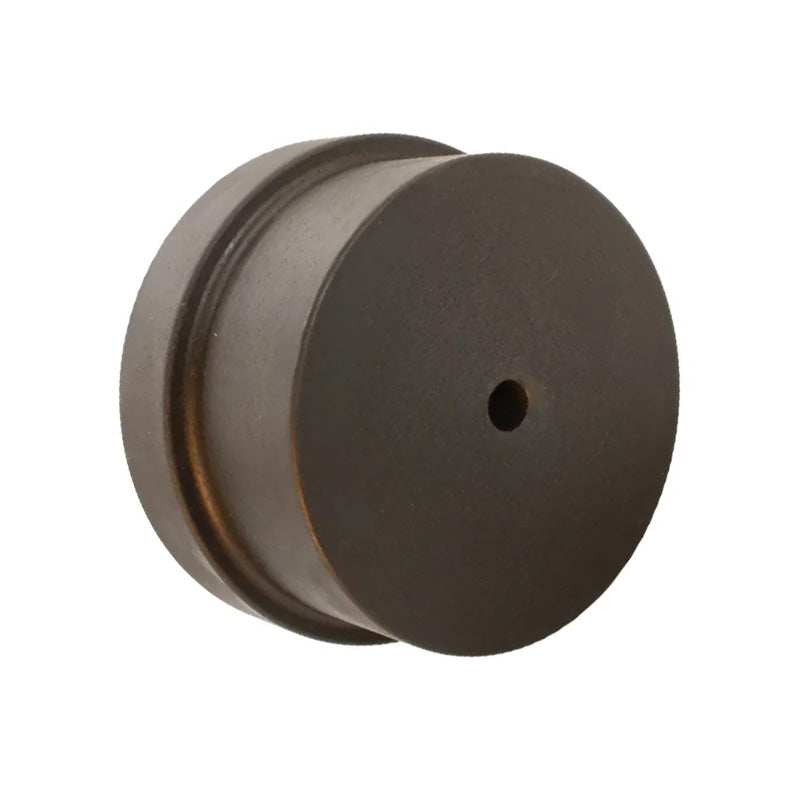

Major Branded HRC150B-MB HRC Coupling Single Flange Pilot Bored Max Bore 70mm
- Regular price
- €33.22 ex VAT
- Sale price
- €33,22
- Regular price
-
Quantity Price Breaks
Major Branded HRC150B-MB HRC Coupling Single Flange Pilot Bored Max Bore 70mm
- Regular price
- €33.22 ex VAT
- Sale price
- €33,22
- Regular price
-
Description
Branded HRC Coupling Single Pilot Bored: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight-edge methods. The shaft connection is "fail-safe" due to the interacting dog design.
These coupling flanges have pilot bores and will require machining to your application requirements.
Please Note: The diameter of the pilot bore is approximate and can vary between brands.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
Technical

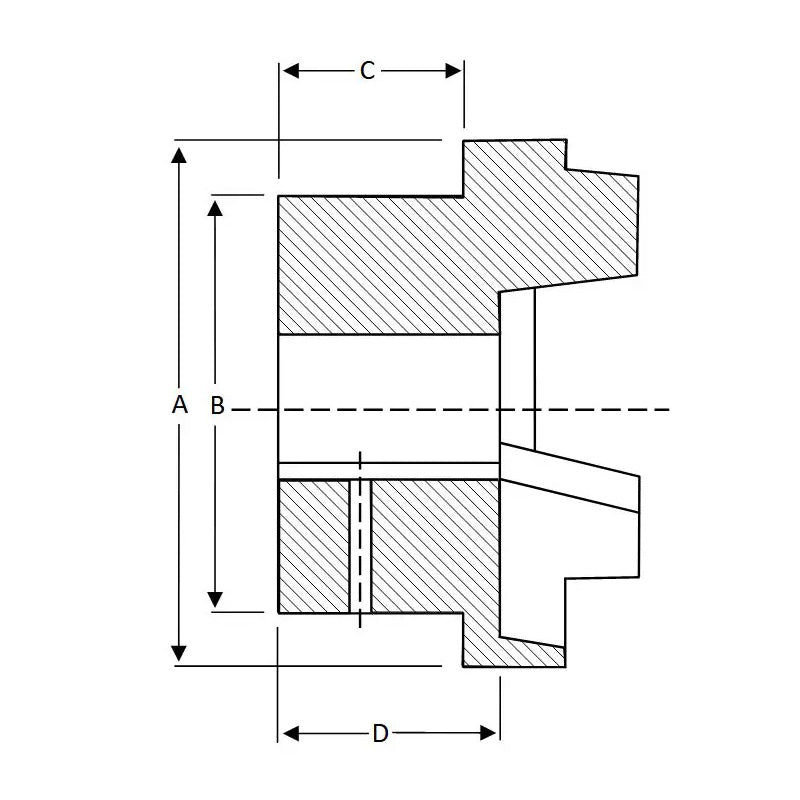

| Nominal Torque | = | 600 Nm |
| Overall Diameter A | = | 150mm |
| Hub Diameter B | = | 115mm |
| Assembled Length F | = | 60.5mm |
| Insert Bore Dia E | = | 62mm |
| Insert Width G | = | 40.5mm |
| Parallel Misalignment | = | 0.4mm |
| Weight | = | 6kg |
| L width | = | 152.5mm< |
| sup> | = | 3< |
| /sup> | = | |
| Max Bore | = | 70mm |
| Pilot Bore (Approx) | = | 20mm |
| Keyway Screw Size | = | M10mm |
| Shoulder Width D | = | 46mm |
| Hub Width C | = | 56.5mm |
| Max Power at 100 rpm | = | 6.28 kW |
| Max Power at 200 rpm | = | 12.6 kW |
| Max Power at 400 rpm | = | 25.1 kW |
| Max Power at 600 rpm | = | 37.7 kW |
| Max Power at 720 rpm | = | 45.2 kW |
| Max Power at 800 rpm | = | 50.3 kW |
| Max Power at 960 rpm | = | 60.3 kW |
| Max Power at 1200 rpm | = | 75.4 kW |
| Max Power at 1440 rpm | = | 90.5 kW |
| Max Power at 1600 rpm | = | 101 kW |
| Max Power at 1800 rpm | = | 113 kW |
| Max Power at 2000 rpm | = | 126 kW |
| Max Power at 2200 rpm | = | 138 kW |
| Max Power at 2400 rpm | = | 151 kW |
| Max Power at 2600 rpm | = | 163 kW |
| Max Power at 2880 rpm | = | 181 kW |
| Max Power at 3000 rpm | = | 188 kW |
| Max Power at 3600 rpm | = | 226 kW |
| Nominal Torque (Nm) | = | 600 Nm |
| Max Torque | = | 1500 Nm |
