SKU: HRC180B-MB
Major Branded HRC180B-MB HRC Coupling Single Flange Pilot Bored Max Bore 80mm
- Regular price
- €47.34 ex VAT
- Sale price
- €47,34
- Regular price
-
Quantity Price Breaks
Major Branded HRC180B-MB HRC Coupling Single Flange Pilot Bored Max Bore 80mm
- Regular price
- €47.34 ex VAT
- Sale price
- €47,34
- Regular price
-
Description
Branded HRC Coupling Single Pilot Bored: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight-edge methods. The shaft connection is "fail-safe" due to the interacting dog design.
These coupling flanges have pilot bores and will require machining to your application requirements.
Please Note: The diameter of the pilot bore is approximate and can vary between brands.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.

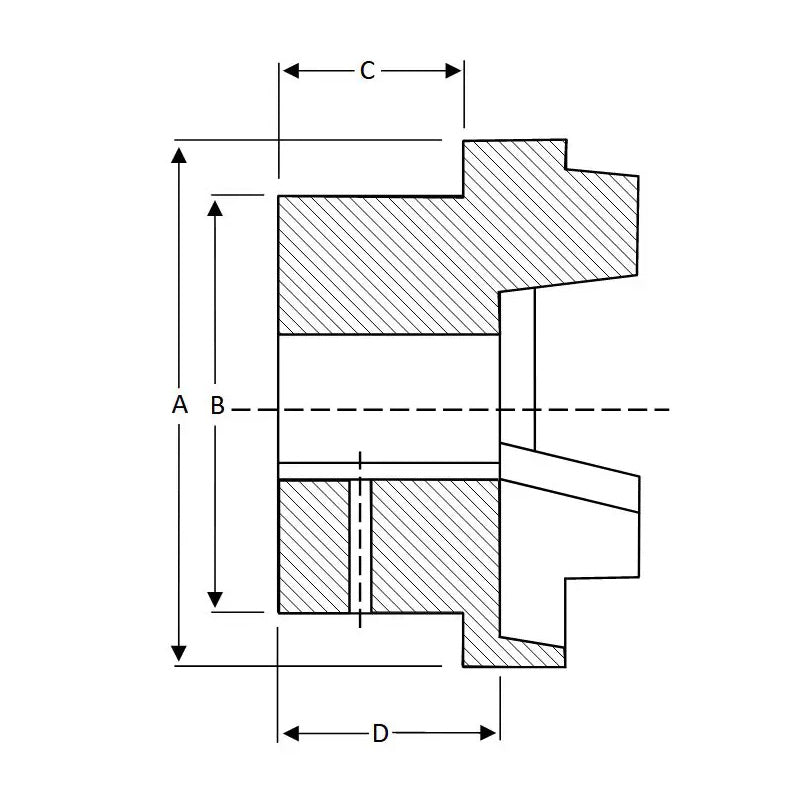

Technical
| Nominal Torque | = | 950 Nm |
| Overall Diameter A | = | 180mm |
| Hub Diameter B | = | 125mm |
| Assembled Length F | = | 73.5mm |
| Insert Bore Dia E | = | 77mm |
| Insert Width G | = | 49.5mm |
| Parallel Misalignment | = | 0.4mm |
| Weight | = | 9kg |
| L width | = | 189.5mm< |
| sup> | = | 3< |
| /sup> | = | |
| Max Bore | = | 80mm |
| Pilot Bore (Approx) | = | 25mm |
| Keyway Screw Size | = | M10mm |
| Shoulder Width D | = | 58mm |
| Hub Width C | = | 70.5mm |
| Max Power at 100 rpm | = | 9.95 kW |
| Max Power at 200 rpm | = | 19.9 kW |
| Max Power at 400 rpm | = | 39.8 kW |
| Max Power at 600 rpm | = | 59.7 kW |
| Max Power at 720 rpm | = | 71.6 kW |
| Max Power at 800 rpm | = | 79.6 kW |
| Max Power at 960 rpm | = | 95.5 kW |
| Max Power at 1200 rpm | = | 119 kW |
| Max Power at 1440 rpm | = | 143 kW |
| Max Power at 1600 rpm | = | 159 kW |
| Max Power at 1800 rpm | = | 179 kW |
| Max Power at 2000 rpm | = | 199 kW |
| Max Power at 2200 rpm | = | 219 kW |
| Max Power at 2400 rpm | = | 239 kW |
| Max Power at 2600 rpm | = | 259 kW |
| Max Power at 2880 rpm | = | 286 kW |
| Max Power at 3000 rpm | = | 298 kW |
| Nominal Torque (Nm) | = | 950 Nm |
| Max Torque | = | 2350 Nm |
