SKU: HRC230B+HRC230B+HRC230I-FRAS-MB
Major Branded HRC230B Coupling Assembly Pilot Bored Nominal 25mm Max Bore 100mm with Fire Resistant Antistatic (F.R.A.S) Insert
- Regular price
- €197.78 ex VAT
- Sale price
- €197,78
- Regular price
-
Quantity Price Breaks
Major Branded HRC230B Coupling Assembly Pilot Bored Nominal 25mm Max Bore 100mm with Fire Resistant Antistatic (F.R.A.S) Insert
- Regular price
- €197.78 ex VAT
- Sale price
- €197,78
- Regular price
-
Description
Branded HRC Coupling Assembly Pilot Bored with Fire Resistant Antistatic (F.R.A.S) Insert: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.

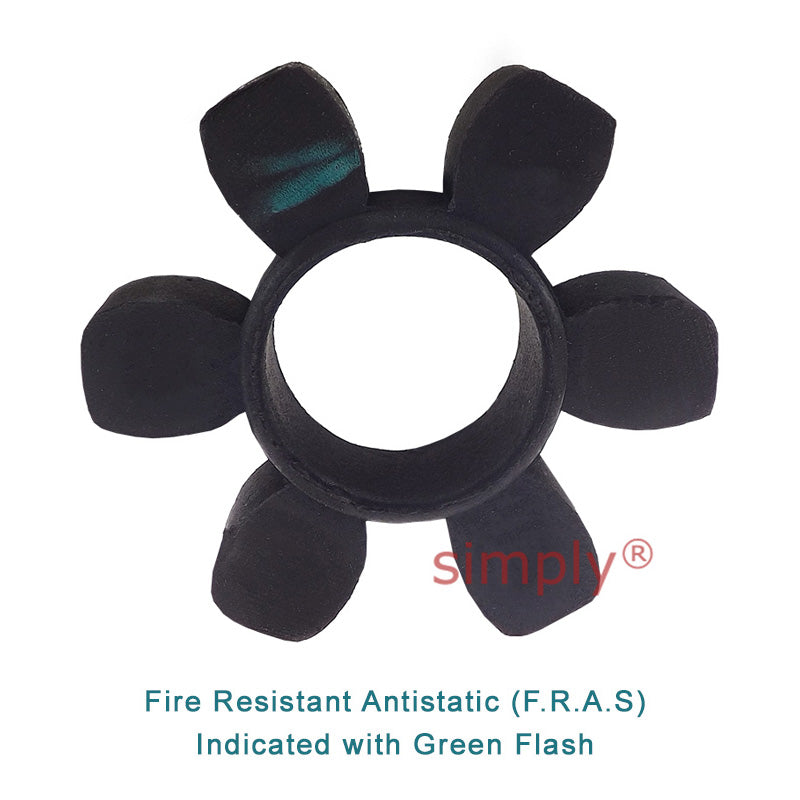

Supplied as a complete coupling assembly. The assembly comprises of 2 coupling flanges and a matching chloroprene rubber fire resistance and anti-static properties (F.R.A.S) insert (Indicated with a Green Flash). The coupling is the B type which has pilot bores and will require machining to your application requirements.
Technical
| Nominal Torque | = | 2000 Nm |
| Overall Diameter A | = | 225mm |
| Hub Diameter B | = | 155mm |
| Assembled Length F | = | 85.5mm |
| Insert Bore Dia E | = | 99mm |
| Insert Width G | = | 59.5mm |
| Parallel Misalignment | = | 0.5mm |
| Assembly Weight | = | 38.865kg |
| L width | = | 239.5mm< |
| sup> | = | 3< |
| /sup> | = | |
| B Type - Max Bore | = | 100mm |
| B Type - Pilot Bore | = | 25mm |
| B Type - Keyway Screw Size | = | M12mm |
| B Type - Shoulder Width D | = | 77mm |
| B Type - Hub Width C | = | 90.5mm |
| Max Power at 100 rpm | = | 20.9 kW |
| Max Power at 200 rpm | = | 41.9 kW |
| Max Power at 400 rpm | = | 83.8 kW |
| Max Power at 600 rpm | = | 126 kW |
| Max Power at 720 rpm | = | 151 kW |
| Max Power at 800 rpm | = | 168 kW |
| Max Power at 960 rpm | = | 201 kW |
| Max Power at 1200 rpm | = | 251 kW |
| Max Power at 1440 rpm | = | 302 kW |
| Max Power at 1600 rpm | = | 335 kW |
| Max Power at 1800 rpm | = | 377 kW |
| Max Power at 2000 rpm | = | 419 kW |
| Max Power at 2200 rpm | = | 461 kW |
| Max Power at 2400 rpm | = | 503 kW |
| Max Power at 2600 rpm | = | 545 kW |
| Nominal Torque (Nm) | = | 2000 Nm |
| Max Torque | = | 5000 Nm |
