SKU: HRC230F+HRC230H+HRC230I-FRAS-MB
Major Branded HRC230F/HRC230H Coupling Assembly Inner/Outer Facing Taper Bores Max Bush Bore 75mm / 3 inch with Fire Resistant Antistatic (F.R.A.S) Insert
- Regular price
- €128.30 ex VAT
- Sale price
- €128,30
- Regular price
-
Quantity Price Breaks
Major Branded HRC230F/HRC230H Coupling Assembly Inner/Outer Facing Taper Bores Max Bush Bore 75mm / 3 inch with Fire Resistant Antistatic (F.R.A.S) Insert
- Regular price
- €128.30 ex VAT
- Sale price
- €128,30
- Regular price
-
Description
Branded HRC Coupling Assembly Inner/Outer Facing Taper Bores with Fire Resistant Antistatic (F.R.A.S) Insert: These semi-elastic couplings are designed for general use purpose use and they permit quick and easy assembly by means for a tapered locking bush fixing. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.

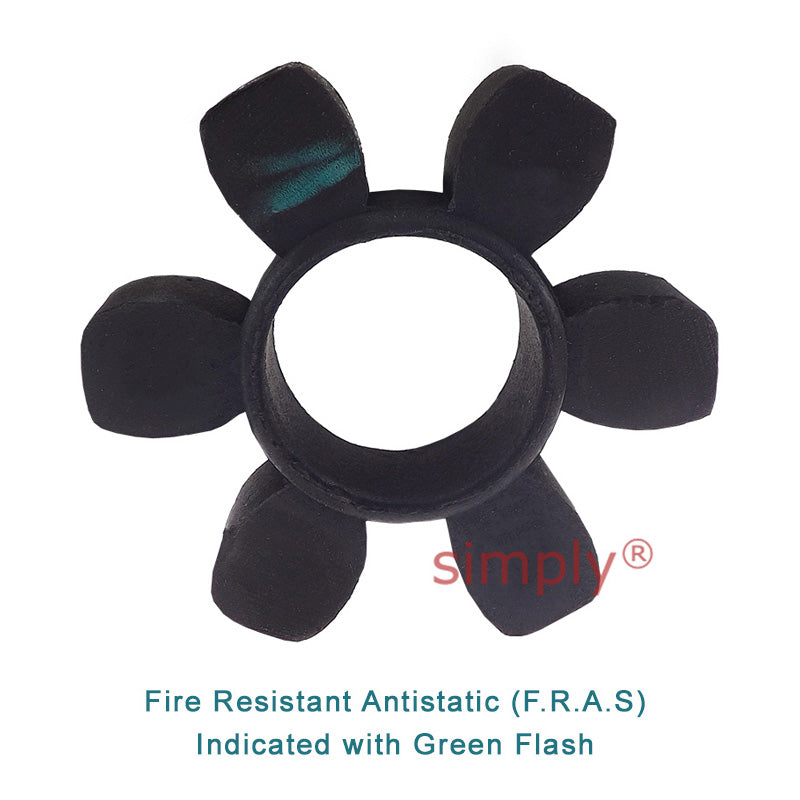

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 coupling flanges and a matching chloroprene rubber fire resistance and anti-static properties (F.R.A.S) insert (Indicated with a Green Flash). The coupling is the F type where the taper bores are inner facing and the larger diameter of the taper is on the same side of the coupling as the rubber drive element and an H type where the taper bores are outer facing.
Technical
| Nominal Torque | = | 2000 Nm |
| Overall Diameter A | = | 225mm |
| Hub Diameter B | = | 155mm |
| Assembled Length F | = | 85.5mm |
| Insert Bore Dia E | = | 99mm |
| Insert Width G | = | 59.5mm |
| Parallel Misalignment | = | 0.5mm |
| Assembly Weight | = | 19.515kg |
| L width | = | 164.5mm< |
| sup> | = | 1< |
| /sup> | = | |
| F Type - Bush Size | = | 3020 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+3020" |
| > | = | [Click Here]< |
| /a> | = | |
| F Type - Max Bore | = | 75mm |
| F Type - Max Bore | = | 3 inch |
| F Type - Shoulder Width D | = | 39.5mm |
| F Type - Hub Width C | = | 52.5mm |
| H Type - Bush Size | = | 3020 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+3020" |
| > | = | [Click Here]< |
| /a> | = | |
| H Type - Max Bore | = | 75mm |
| H Type - Max Bore | = | 3 inch |
| H Type - Shoulder Width D | = | 39.5mm |
| H Type - Hub Width C | = | 52.5mm |
| Max Power at 100 rpm | = | 20.9 kW |
| Max Power at 200 rpm | = | 41.9 kW |
| Max Power at 400 rpm | = | 83.8 kW |
| Max Power at 600 rpm | = | 126 kW |
| Max Power at 720 rpm | = | 151 kW |
| Max Power at 800 rpm | = | 168 kW |
| Max Power at 960 rpm | = | 201 kW |
| Max Power at 1200 rpm | = | 251 kW |
| Max Power at 1440 rpm | = | 302 kW |
| Max Power at 1600 rpm | = | 335 kW |
| Max Power at 1800 rpm | = | 377 kW |
| Max Power at 2000 rpm | = | 419 kW |
| Max Power at 2200 rpm | = | 461 kW |
| Max Power at 2400 rpm | = | 503 kW |
| Max Power at 2600 rpm | = | 545 kW |
| Nominal Torque (Nm) | = | 2000 Nm |
| Max Torque | = | 5000 Nm |
