SKU: HRC280B-MB
Major Branded HRC280B-MB HRC Coupling Single Flange Pilot Bored Max Bore 115mm
- Regular price
- €148.79 ex VAT
- Sale price
- €148,79
- Regular price
-
Quantity Price Breaks
Major Branded HRC280B-MB HRC Coupling Single Flange Pilot Bored Max Bore 115mm
- Regular price
- €148.79 ex VAT
- Sale price
- €148,79
- Regular price
-
Description
Branded HRC Coupling Single Pilot Bored: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight-edge methods. The shaft connection is "fail-safe" due to the interacting dog design.
These coupling flanges have pilot bores and will require machining to your application requirements.
Please Note: The diameter of the pilot bore is approximate and can vary between brands.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.

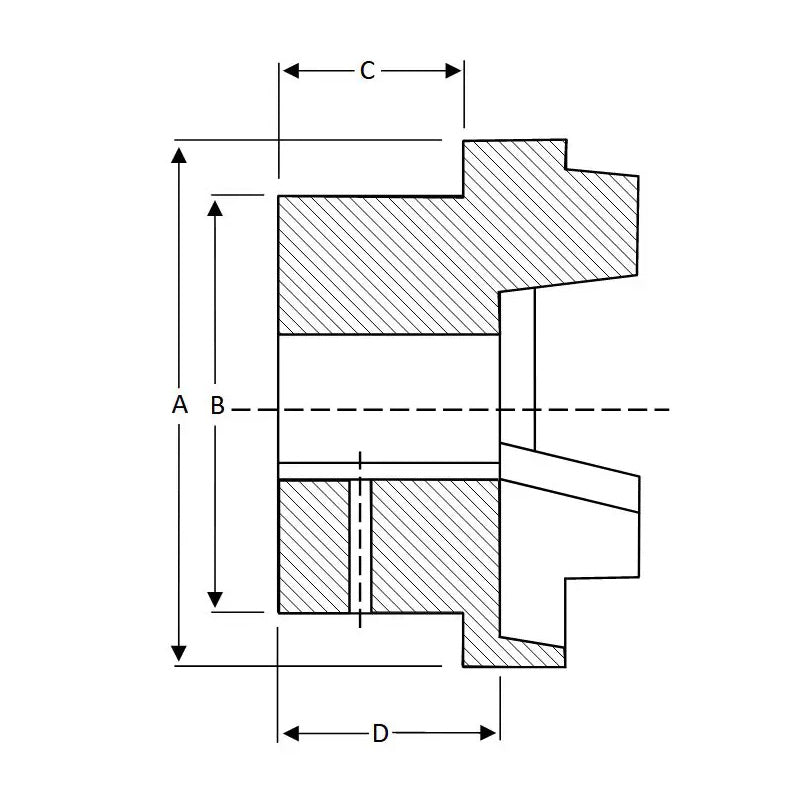

Technical
| Nominal Torque | = | 3150 Nm |
| Overall Diameter A | = | 275mm |
| Hub Diameter B | = | 206mm |
| Assembled Length F | = | 105.5mm |
| Insert Bore Dia E | = | 119mm |
| Insert Width G | = | 74.5mm |
| Parallel Misalignment | = | 0.5mm |
| Weight | = | 33.5kg |
| L width | = | 285.5mm< |
| sup> | = | 3< |
| /sup> | = | |
| Max Bore | = | 115mm |
| Pilot Bore (Approx) | = | 30mm |
| Keyway Screw Size | = | M16mm |
| Shoulder Width D | = | 90mm |
| Hub Width C | = | 105.5mm |
| Max Power at 100 rpm | = | 33 kW |
| Max Power at 200 rpm | = | 65 kW |
| Max Power at 400 rpm | = | 132 kW |
| Max Power at 600 rpm | = | 198 kW |
| Max Power at 720 rpm | = | 238 kW |
| Max Power at 800 rpm | = | 264 kW |
| Max Power at 960 rpm | = | 317 kW |
| Max Power at 1200 rpm | = | 396 kW |
| Max Power at 1440 rpm | = | 475 kW |
| Max Power at 1600 rpm | = | 528 kW |
| Max Power at 1800 rpm | = | 594 kW |
| Max Power at 2000 rpm | = | 660 kW |
| Max Power at 2200 rpm | = | 726 kW |
| Nominal Torque (Nm) | = | 3150 Nm |
| Max Torque | = | 7200 Nm |
