SKU: HRC70B-MB
Major Branded HRC70B-MB HRC Coupling Single Flange Pilot Bored Max Bore 32mm
- Regular price
- €8.79 ex VAT
- Sale price
- €8,79
- Regular price
-
Quantity Price Breaks
Major Branded HRC70B-MB HRC Coupling Single Flange Pilot Bored Max Bore 32mm
- Regular price
- €8.79 ex VAT
- Sale price
- €8,79
- Regular price
-
Description

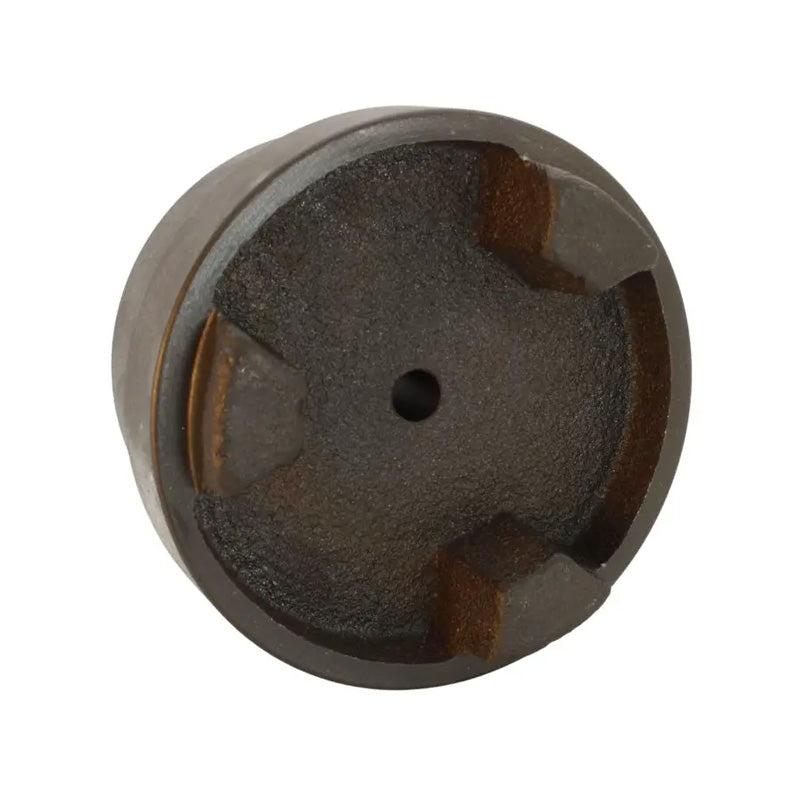

Branded HRC Coupling Single Pilot Bored: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight-edge methods. The shaft connection is "fail-safe" due to the interacting dog design.
These coupling flanges have pilot bores and will require machining to your application requirements.
Please Note: The diameter of the pilot bore is approximate and can vary between brands.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
Technical

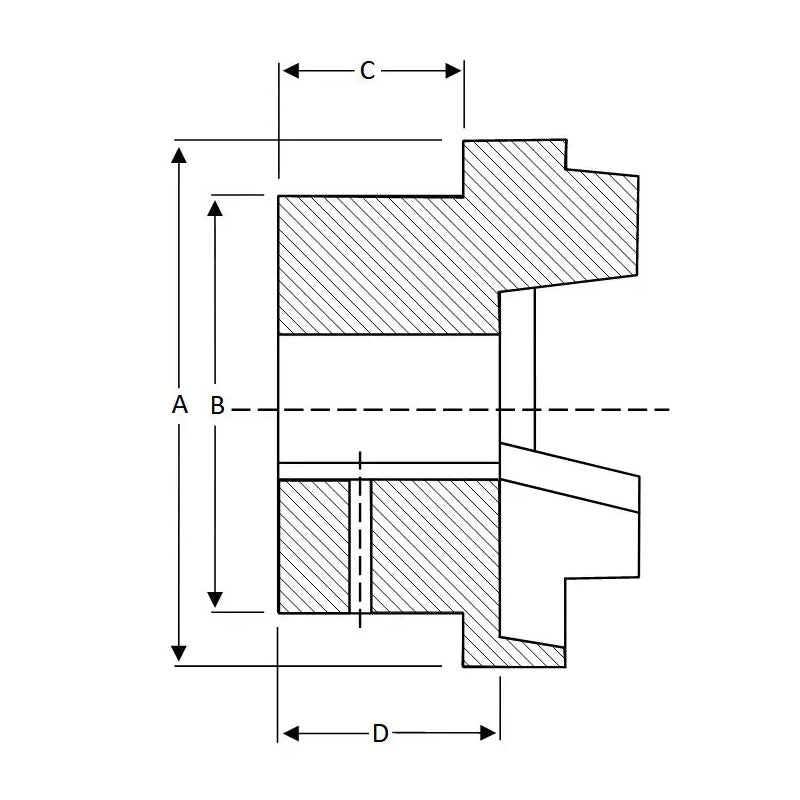

| Nominal Torque | = | 31 Nm |
| Overall Diameter A | = | 69mm |
| Hub Diameter B | = | 60mm |
| Assembled Length F | = | 25.5mm |
| Insert Bore Dia E | = | 31mm |
| Insert Width G | = | 18.5mm |
| Parallel Misalignment | = | 0.3mm |
| Weight | = | 0.6kg |
| L width | = | 65.5mm< |
| sup> | = | 3< |
| /sup> | = | |
| Max Bore | = | 32mm |
| Pilot Bore (Approx) | = | 8mm |
| Keyway Screw Size | = | M6mm |
| Shoulder Width D | = | 20mm |
| Hub Width C | = | 23.5mm |
| Max Power at 100 rpm | = | 0.33 kW |
| Max Power at 200 rpm | = | 0.66 kW |
| Max Power at 400 rpm | = | 1.32 kW |
| Max Power at 600 rpm | = | 1.98 kW |
| Max Power at 720 rpm | = | 2.37 kW |
| Max Power at 800 rpm | = | 2.64 kW |
| Max Power at 960 rpm | = | 3.17 kW |
| Max Power at 1200 rpm | = | 3.96 kW |
| Max Power at 1440 rpm | = | 4.75 kW |
| Max Power at 1600 rpm | = | 5.28 kW |
| Max Power at 1800 rpm | = | 5.94 kW |
| Max Power at 2000 rpm | = | 6.6 kW |
| Max Power at 2200 rpm | = | 7.26 kW |
| Max Power at 2400 rpm | = | 7.92 kW |
| Max Power at 2600 rpm | = | 8.58 kW |
| Max Power at 2880 rpm | = | 9.5 kW |
| Max Power at 3000 rpm | = | 9.9 kW |
| Max Power at 3600 rpm | = | 11.9 kW |
| Nominal Torque (Nm) | = | 31.5 Nm |
| Max Torque | = | 72 Nm |
