SKU: HRC90F+HRC90B+HRC90I-FRAS-MB
Major Branded HRC90F/HRC90B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 28mm / 1-1/8 inch with Fire Resistant Antistatic (F.R.A.S) Insert
- Regular price
- €31.01 ex VAT
- Sale price
- €31,01
- Regular price
-
Quantity Price Breaks
Major Branded HRC90F/HRC90B Coupling Assembly Inner Facing Taper Bore/Pilot Bored Max Bush Bore 28mm / 1-1/8 inch with Fire Resistant Antistatic (F.R.A.S) Insert
- Regular price
- €31.01 ex VAT
- Sale price
- €31,01
- Regular price
-
Description
Branded HRC Coupling Assembly Inner Facing Taper Bore/Pilot Bored with Fire Resistant Antistatic (F.R.A.S) Insert: These semi-elastic couplings are designed for general use purpose use and they permit quick and easy assembly by means for a tapered locking bush fixing. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.

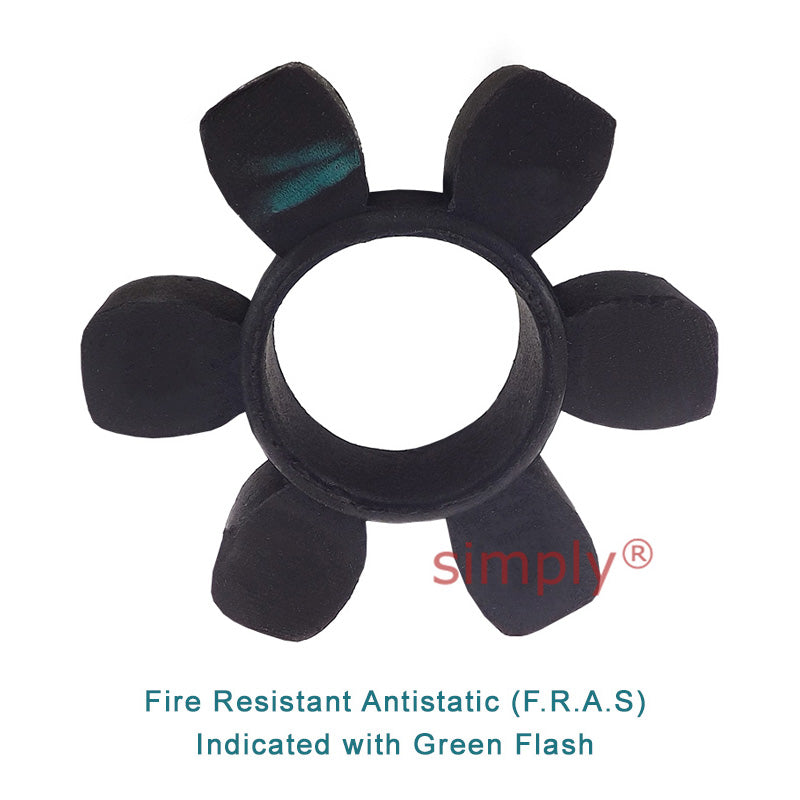

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 coupling flanges and a matching chloroprene rubber fire resistance and anti-static properties (F.R.A.S) insert (Indicated with a Green Flash). The coupling is the F type where the taper bores are inner facing and a B type which has pilot bores and will require machining to your application requirements.
Technical
| Nominal Torque | = | 80 Nm |
| Overall Diameter A | = | 85mm |
| Hub Diameter B | = | 70mm |
| Assembled Length F | = | 30.5mm |
| Insert Bore Dia E | = | 32mm |
| Insert Width G | = | 22.5mm |
| Parallel Misalignment | = | 0.3mm |
| Assembly Weight | = | 1.863kg |
| L width | = | 76.5mm< |
| sup> | = | 2< |
| /sup> | = | |
| F Type - Bush Size | = | 1108 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+1108" |
| > | = | [Click Here]< |
| /a> | = | |
| F Type - Max Bore | = | 28mm |
| F Type - Max Bore | = | 1-1/8 inch |
| F Type - Shoulder Width D | = | 19.5mm |
| F Type - Hub Width C | = | 23.5mm |
| B Type - Max Bore | = | 42mm |
| B Type - Pilot Bore | = | 10mm |
| B Type - Keyway Screw Size | = | M6mm |
| B Type - Shoulder Width D | = | 26mm |
| B Type - Hub Width C | = | 30.5mm |
| Max Power at 100 rpm | = | 0.84 kW |
| Max Power at 200 rpm | = | 1.68 kW |
| Max Power at 400 rpm | = | 3.35 kW |
| Max Power at 600 rpm | = | 5.03 kW |
| Max Power at 720 rpm | = | 6.03 kW |
| Max Power at 800 rpm | = | 6.7 kW |
| Max Power at 960 rpm | = | 8.04 kW |
| Max Power at 1200 rpm | = | 10.1 kW |
| Max Power at 1440 rpm | = | 12.1 kW |
| Max Power at 1600 rpm | = | 13.4 kW |
| Max Power at 1800 rpm | = | 15.1 kW |
| Max Power at 2000 rpm | = | 16.8 kW |
| Max Power at 2200 rpm | = | 18.4 kW |
| Max Power at 2400 rpm | = | 20.1 kW |
| Max Power at 2600 rpm | = | 21.8 kW |
| Max Power at 2880 rpm | = | 24.1 kW |
| Max Power at 3000 rpm | = | 25.1 kW |
| Max Power at 3600 rpm | = | 30.1 kW |
| Nominal Torque (Nm) | = | 80 Nm |
| Max Torque | = | 180 Nm |
