SKU: HT40-14M-40F

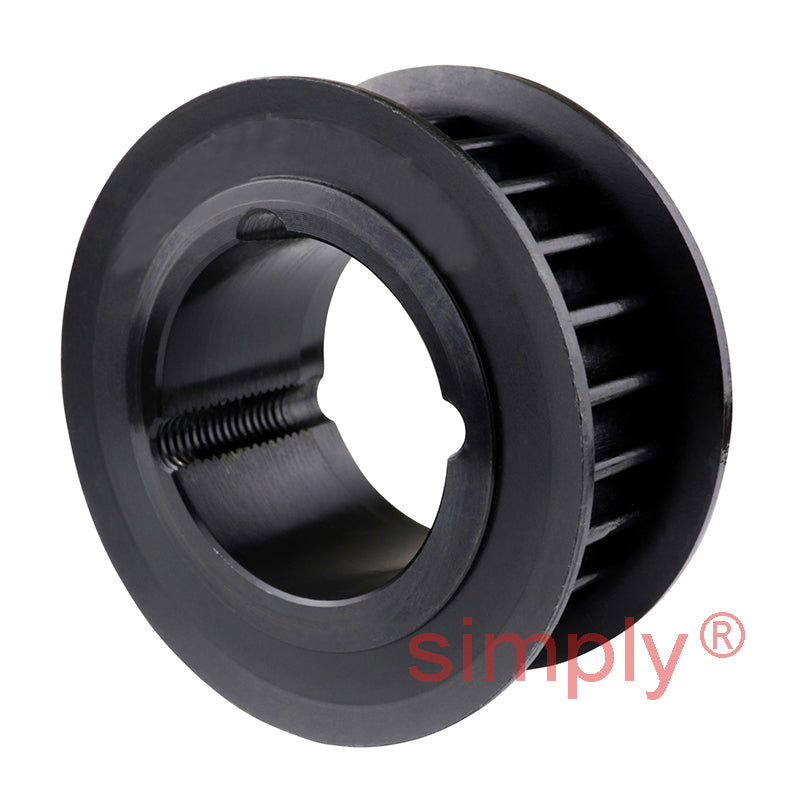

TL40-14M-40F - 14mm Pitch 40 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 40mm Wide Belts
- Regular price
- €90.39 ex VAT
- Sale price
- €90,39
- Regular price
-
Not in stock
Quantity Price Breaks
3
€80.45
5
€75.93
9
€75.02
19
€74.12
49
€73.22
74
€72.31
99
€67.79
199
€66.89
249
€65.98
499
€65.08
999
€63.27
SKU:
HT40-14M-40F
TL40-14M-40F - 14mm Pitch 40 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 40mm Wide Belts
- Regular price
- €90.39 ex VAT
- Sale price
- €90,39
- Regular price
-
Description
HTD Taper Bore Timing Pulleys: High torque drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical
| --- | = | Pulley Dimensions |
| Pitch | = | 14mm |
| Number of Teeth | = | 40 |
| Type | = | 3F Taper Bore |
| Bush | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=0& | = | keywords=2517+tapered+locking+bush " |
| > | = | 2517 Click Here< |
| /a> | = | |
| Dp | = | 178.25mm |
| De | = | 175.49mm |
| Df | = | 188mm |
| = | Di | |
| 138mm | = | F |
| 54mm | = | S |
| 45mm | = | P |
| 4.5mm | = | Weight |
| 6.00kg | = | N/A |
