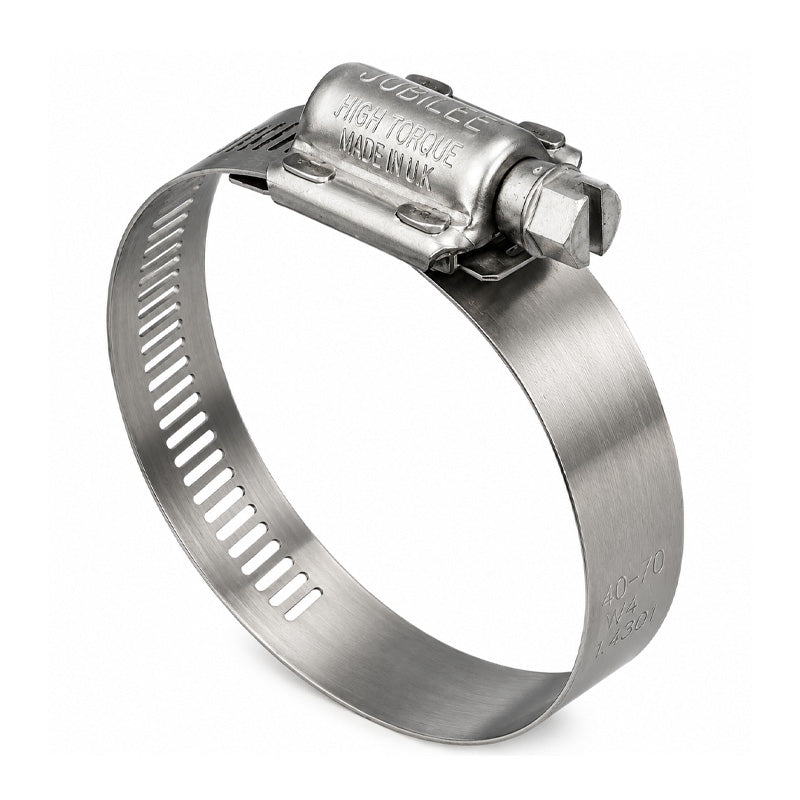

HT520 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 490mm - 520mm Band Width 16mm

SKU: HT520-JUB

HT520 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 490mm - 520mm Band Width 16mm

€15.92 ex VAT
€15,92
ex VAT
In stock

Quantity Price Breaks

3 €14.17
5 €13.37
9 €13.21
19 €13.05
49 €12.90
74 €12.74
99 €11.94
199 €11.78
249 €11.62
499 €11.46
999 €11.14
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
HT520 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 490mm - 520mm Band Width 16mm
SKU: HT520-JUB

HT520 304 Stainless Steel High Torque Jubilee Clip Adjustment Range 490mm - 520mm Band Width 16mm

€15.92 ex VAT
€15,92
ex VAT

Description

304 Stainless Steel High Torque Jubilee Clips: Jubilee® High Torque Clips are heavy duty and offer better sealing at lower torques. Suitable where clamp force needs to be high such as metal poles, plastic or reinforced hoses. Not suitable for soft hoses.
Benefits: High torque tightening.

Technical

Adjustment Range = 490mm - 520mm
Adjustment Range = 19-5/16 - 20-1/2 inch
Band Width (+/- 0.1) = 16mm
Band Thickness (+/- 0.1) = 0.7mm
Recommended Torque = 11.9Nm
Maximum Torque = 17Nm
Maximum Pressure = n/a Psi
