SKU: JM205149/110/Q-SKF

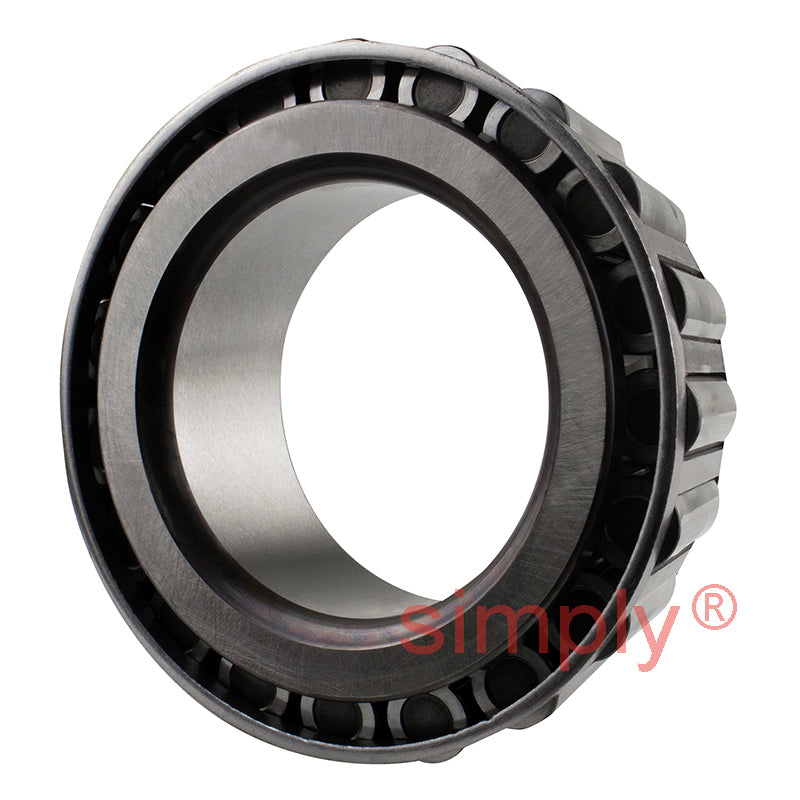

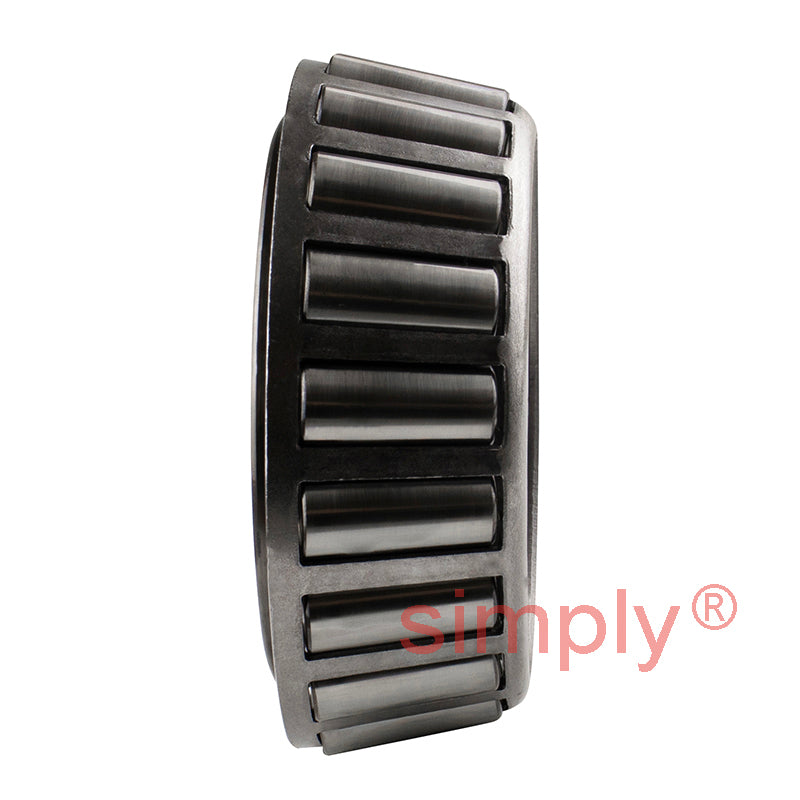

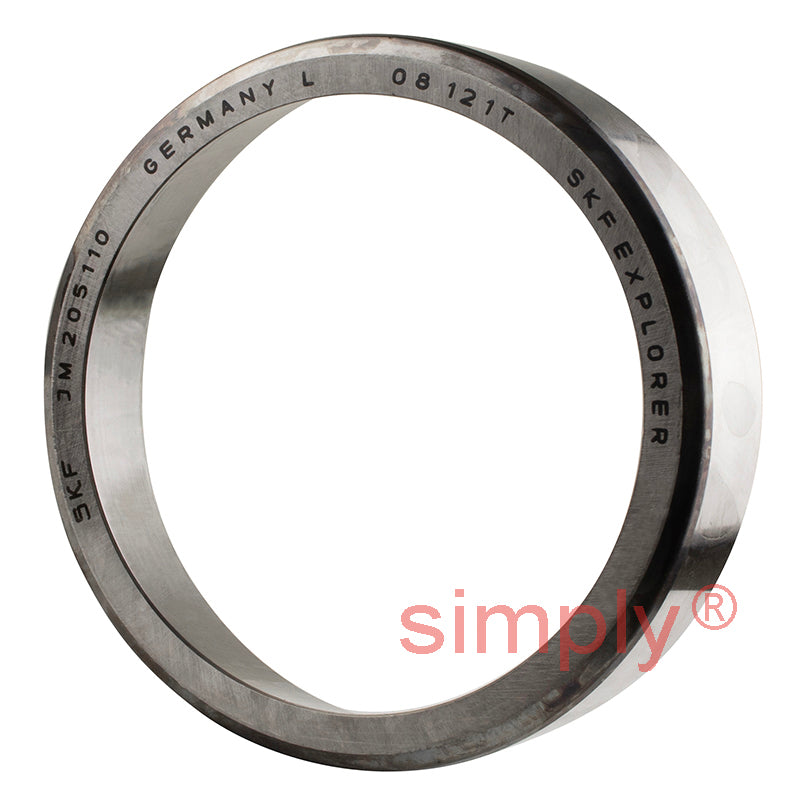

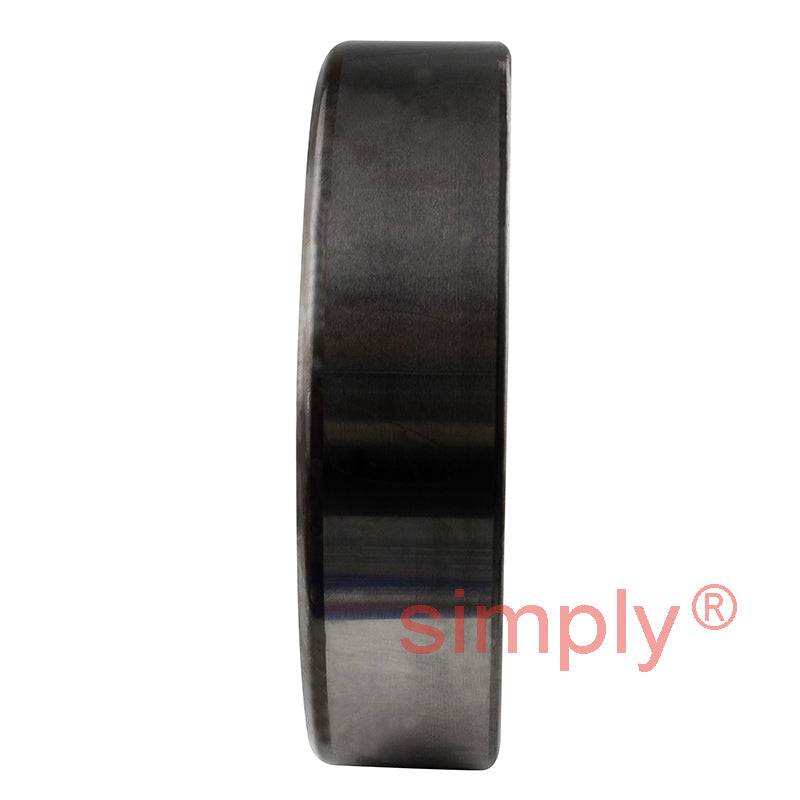

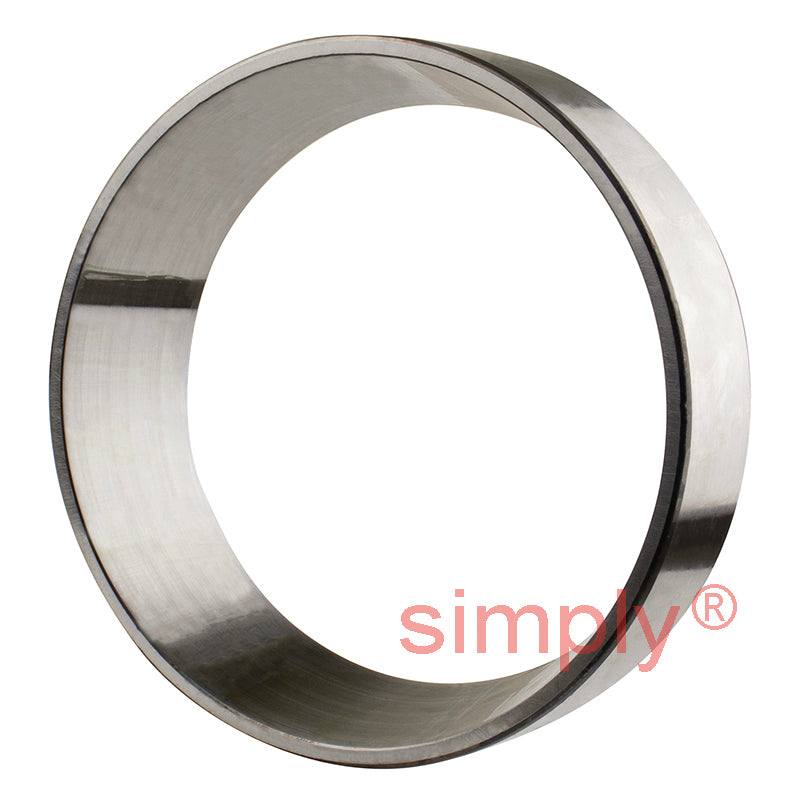

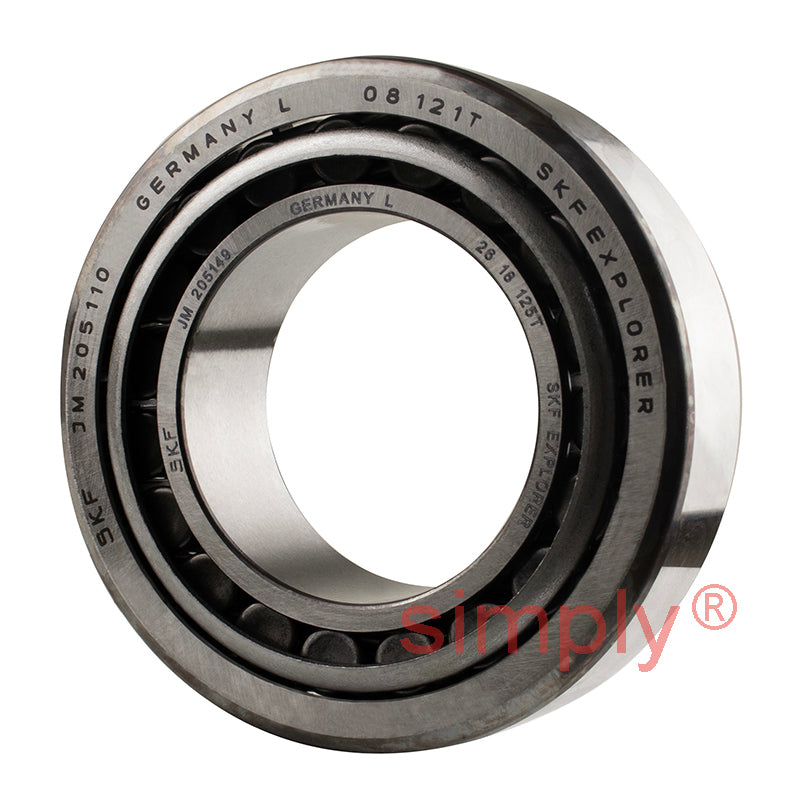

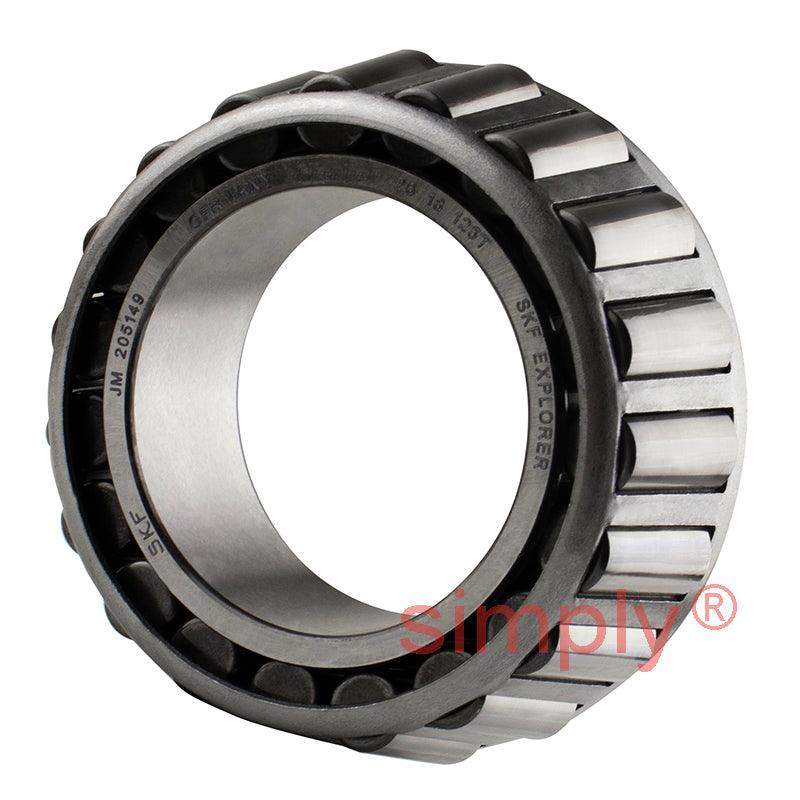

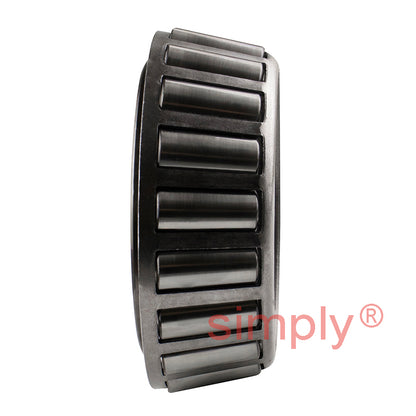

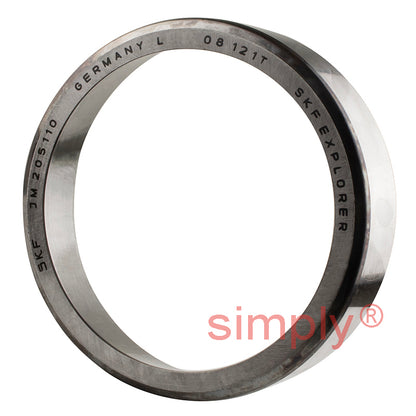

SKF JM205149110Q Metric Single Row Taper Roller Bearing 50x90x28mm
- Regular price
- €90.23 ex VAT
- Sale price
- €90,23
- Regular price
-
In stock
Quantity Price Breaks
10
€80.30
19
€75.79
29
€74.89
39
€73.99
49
€73.09
74
€72.18
99
€67.67
199
€66.77
249
€65.87
499
€64.97
999
€63.16
SKU:
JM205149/110/Q-SKF
SKF JM205149110Q Metric Single Row Taper Roller Bearing 50x90x28mm
- Regular price
- €90.23 ex VAT
- Sale price
- €90,23
- Regular price
-
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
Technical
| d | = | 50mm |
| D | = | 90mm |
| T | = | 28mm |
| Dynamic load | = | 106 kN |
| Static load | = | 140 kN |
| Fatigue load limit Pu | = | 16 kN |
| Reference speed | = | 5300 rpm |
| Limiting speed | = | 8000 rpm |
| Weight | = | 0.75 kg |
| d1 | = | 68.7mm |
| B | = | 28mm |
| C | = | 23mm |
| r1r2 min | = | 3mm |
| r3r4 min | = | 2.5mm |
| a | = | 20mm |
| da max | = | 58mm |
| db min | = | 64mm |
| Da min | = | 78mm |
| Da max | = | 78mm |
| Db min | = | 85mm |
| Ca min | = | 5mm |
| Cb min | = | 5mm |
| ra max | = | 2.5mm |
| rb max | = | 2mm |
| Calculation factor e | = | 0.33 |
| Calculation factor Y | = | 1.8 |
| Calculation factor Y0 | = | 1 |
