SKU: JSC022SS316-JUB
JSC022SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 20mm - 22mm Band Width 18mm
- Regular price
- €15.92 ex VAT
- Sale price
- €15,92
- Regular price
-
Not in stock
Quantity Price Breaks
3
€14.17
5
€13.37
9
€13.21
19
€13.05
49
€12.90
74
€12.74
99
€11.94
199
€11.78
249
€11.62
499
€11.46
999
€11.14
SKU:
JSC022SS316-JUB
JSC022SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 20mm - 22mm Band Width 18mm
- Regular price
- €15.92 ex VAT
- Sale price
- €15,92
- Regular price
-
Description

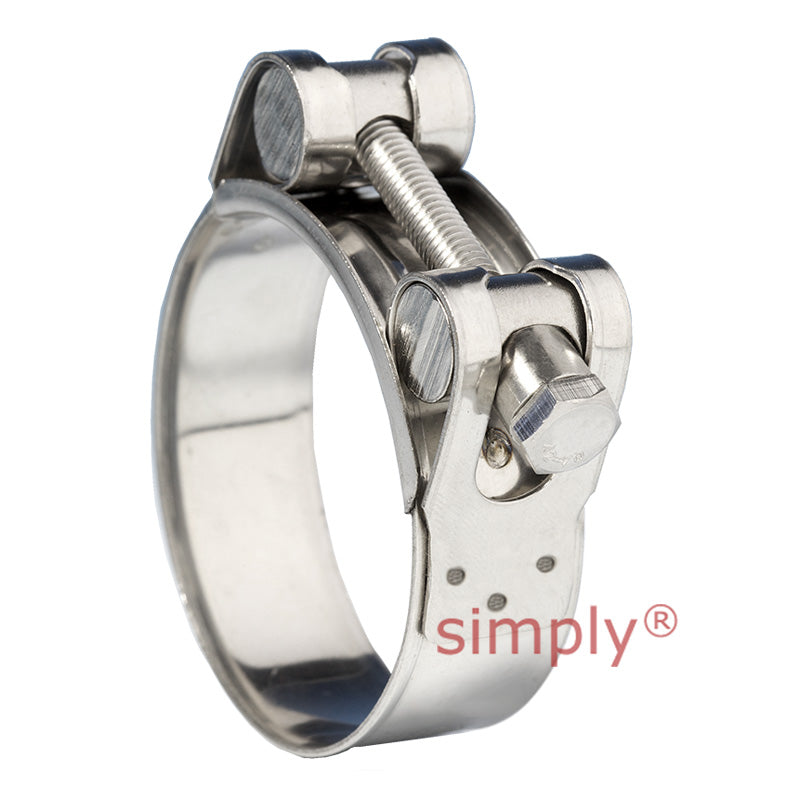

316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 20mm - 22mm |
| Band Width (+/- 0.1) | = | 18mm |
| Band Thickness (+/- 0.1) | = | 0.6mm |
| Recommended Torque | = | 4.5Nm |
| Maximum Torque | = | 6Nm |
| Screw Head | = | 8mm |
