SKU: JSC174SS316-JUB

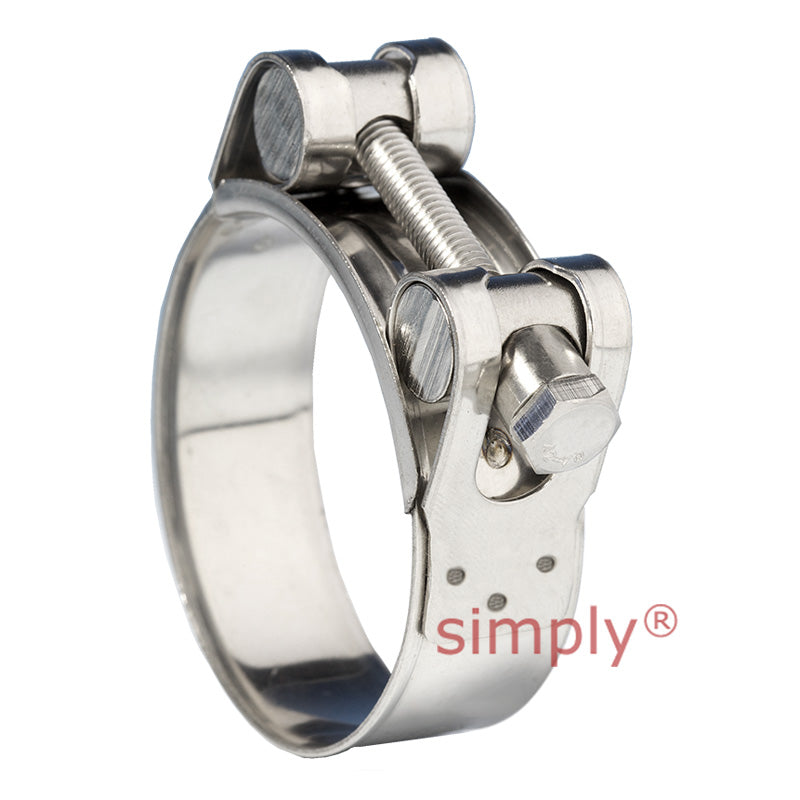

JSC174SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 162mm - 174mm Band Width 25mm
- Regular price
- €25.37 ex VAT
- Sale price
- €25,37
- Regular price
-
Not in stock
Quantity Price Breaks
3
€22.58
5
€21.31
9
€21.06
19
€20.80
49
€20.55
74
€20.30
99
€19.03
199
€18.77
249
€18.52
499
€18.27
999
€17.76
SKU:
JSC174SS316-JUB
JSC174SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 162mm - 174mm Band Width 25mm
- Regular price
- €25.37 ex VAT
- Sale price
- €25,37
- Regular price
-
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 162mm - 174mm |
| Band Width (+/- 0.1) | = | 25mm |
| Band Thickness (+/- 0.1) | = | 1.5mm |
| Recommended Torque | = | 18.5Nm |
| Maximum Torque | = | 25Nm |
| Screw Head | = | 13mm |
