SKU: JUM-02-25

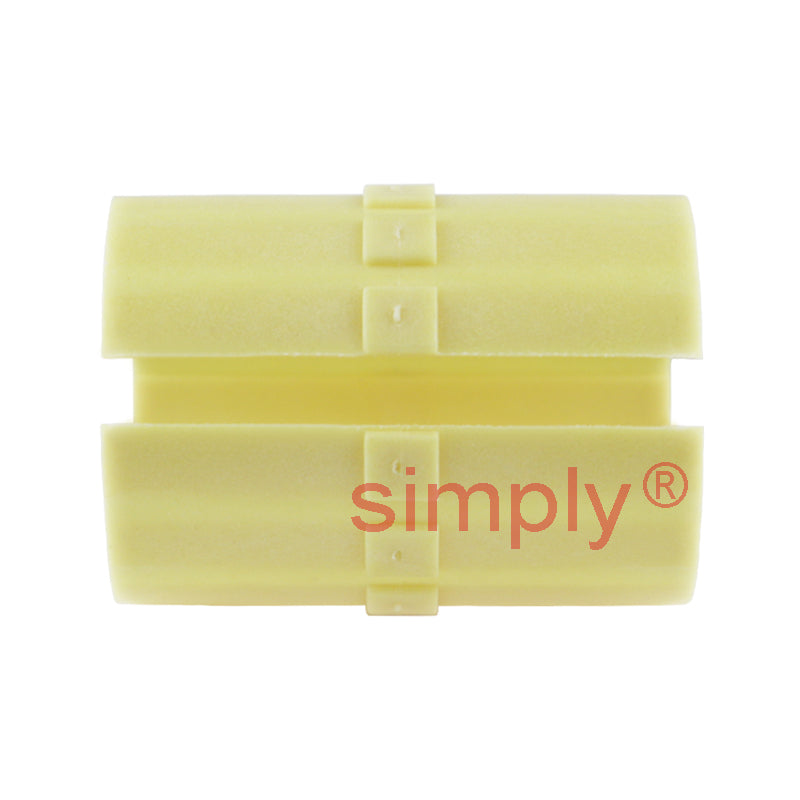

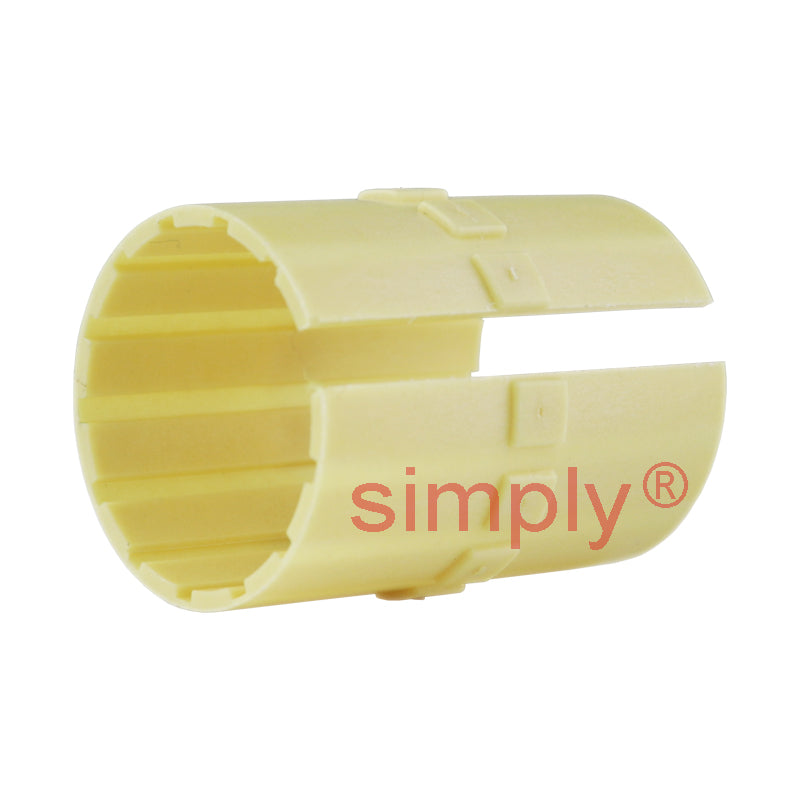

Igus drylin R JUM-02-25 Linear Slide Bearing 25x28x39mm
- Regular price
- €21.45 ex VAT
- Sale price
- €21,45
- Regular price
-
In stock
Quantity Price Breaks
10
€19.09
19
€18.02
29
€17.80
39
€17.59
49
€17.37
74
€17.16
99
€16.09
199
€15.87
249
€15.66
499
€15.44
999
€15.02
SKU:
JUM-02-25
Igus drylin R JUM-02-25 Linear Slide Bearing 25x28x39mm
- Regular price
- €21.45 ex VAT
- Sale price
- €21,45
- Regular price
-

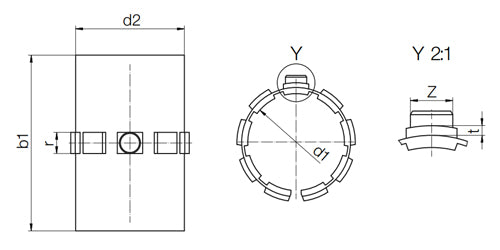

Technical
| d1 | = | 25mm |
| d2 | = | 28mm |
| b1 | = | 39mm |
| r | = | 5mm |
| t | = | 0.8mm |
| z | = | 4mm |
| di | = | 28mm |
| B | = | 40mm |
| r1 | = | 5mm |
| t1 | = | 1mm |
| f1 | = | 2mm |
| Z1 | = | 4.1mm |
| d1 Tolerance | = | +0.030 +0.070mm |
| di Tolerance | = | H7 |
| B Tolerance | = | h10 |
| r1 Tolerance | = | +0.05mm |
| t1 Tolerance | = | +0.1mm |
| f1 Tolerance | = | +0.5mm |
| z1 Tolerance | = | 0.2mm |
| Max. long-term application temperature | = | 90 deg C |
| Lower application temperature | = | -50 deg C |
