SKU: K16x24x20-MB

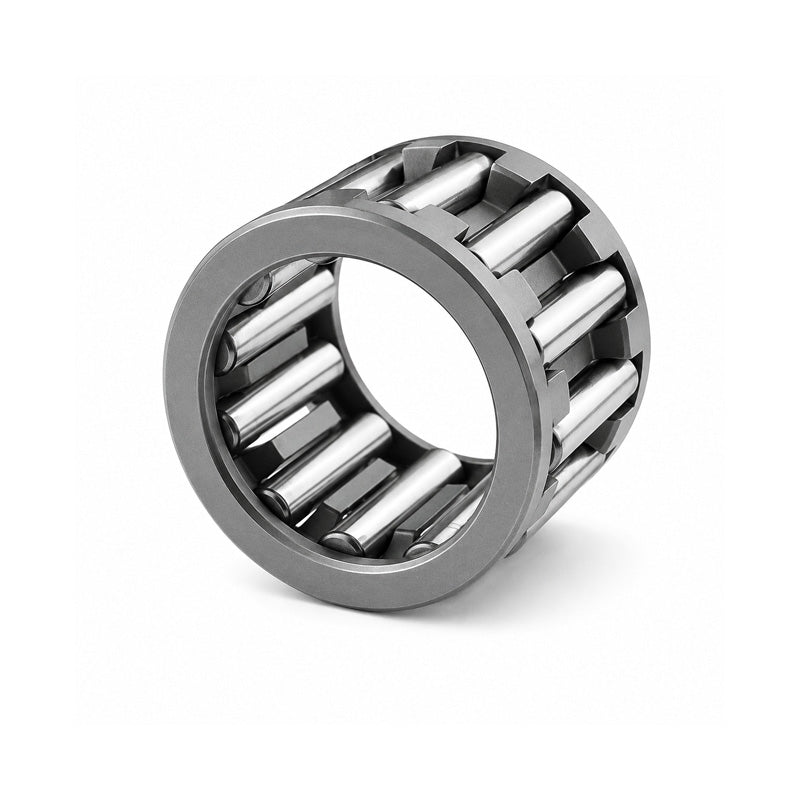

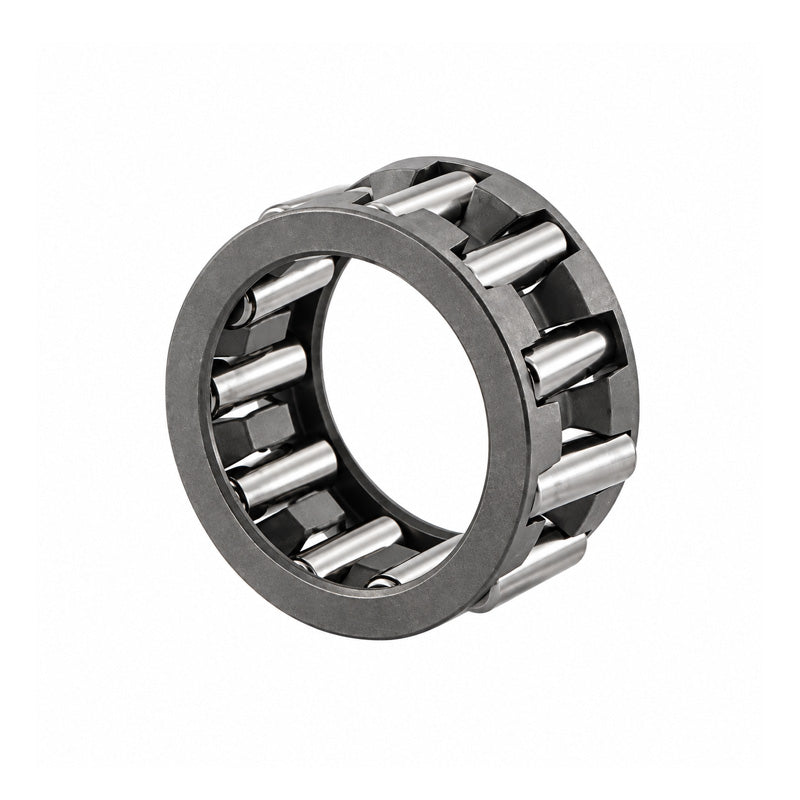

Major Brand K16x24x20 Needle Roller Cage Assembly 16x24x20mm
- Regular price
- €19.70 ex VAT
- Sale price
- €19,70
- Regular price
-
In stock
Quantity Price Breaks
10
€17.53
19
€16.55
29
€16.35
39
€16.15
49
€15.96
74
€15.76
99
€14.78
199
€14.58
249
€14.38
499
€14.18
999
€13.79
SKU:
K16x24x20-MB
Major Brand K16x24x20 Needle Roller Cage Assembly 16x24x20mm
- Regular price
- €19.70 ex VAT
- Sale price
- €19,70
- Regular price
-
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Technical
| Fw | = | 16mm |
| Ew | = | 24mm |
| U | = | 20mm |
| Dynamic load | = | 20500 N |
| Static load | = | 23600 N |
| Fatigue load limit Pu | = | 2900 N |
| Speed in grease | = | 15000 rpm |
| Speed in oil | = | 22000 rpm |
| Seal | = | G/SD16x24x3 |
| Weight | = | 22 g |
