SKU: K3x5x9TN-MB

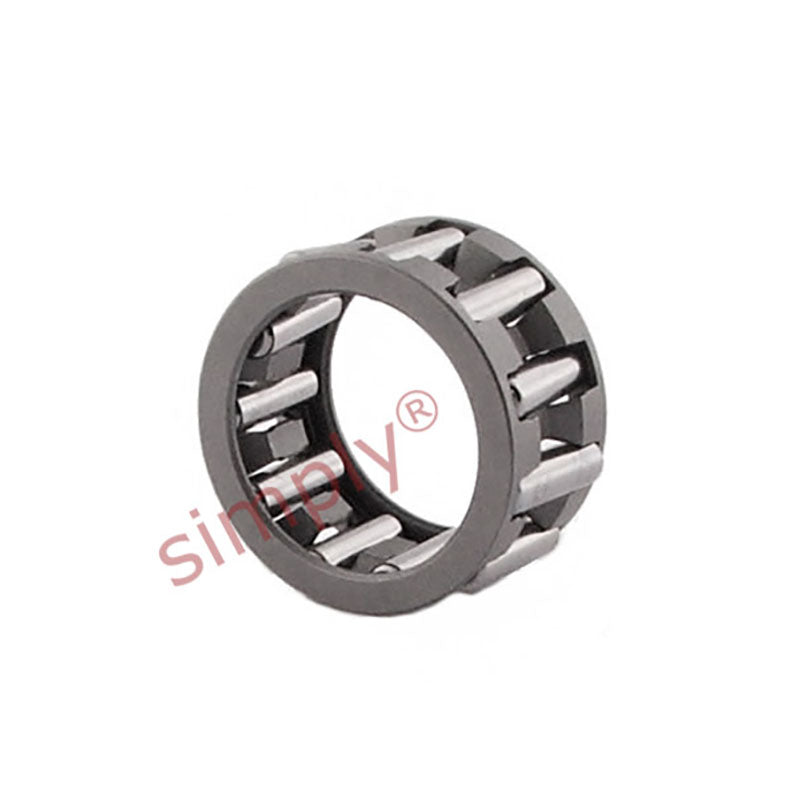

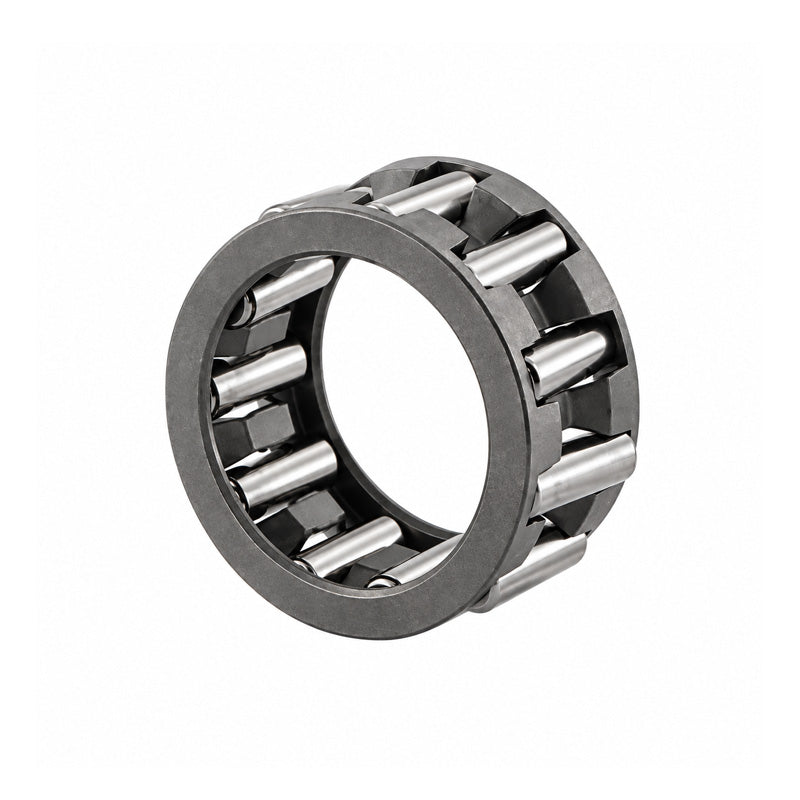

Major Brand K3x5x9TN Needle Roller Cage Assembly 3x5x9mm
- Regular price
- €5.12 ex VAT
- Sale price
- €5,12
- Regular price
-
In stock
Quantity Price Breaks
10
€4.56
19
€4.30
29
€4.25
39
€4.20
49
€4.15
74
€4.10
99
€3.84
199
€3.79
249
€3.74
499
€3.69
999
€3.58
SKU:
K3x5x9TN-MB
Major Brand K3x5x9TN Needle Roller Cage Assembly 3x5x9mm
- Regular price
- €5.12 ex VAT
- Sale price
- €5,12
- Regular price
-
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Technical
| Fw | = | 3mm |
| Ew | = | 5mm |
| U | = | 9mm |
| Dynamic load | = | 1720 N |
| Static load | = | 1630 N |
| Fatigue load limit Pu | = | 170 N |
| Speed in grease | = | 28000 rpm |
| Speed in oil | = | 40000 rpm |
| Weight | = | 0.4 g |
