SKU: KCRM-06.MH

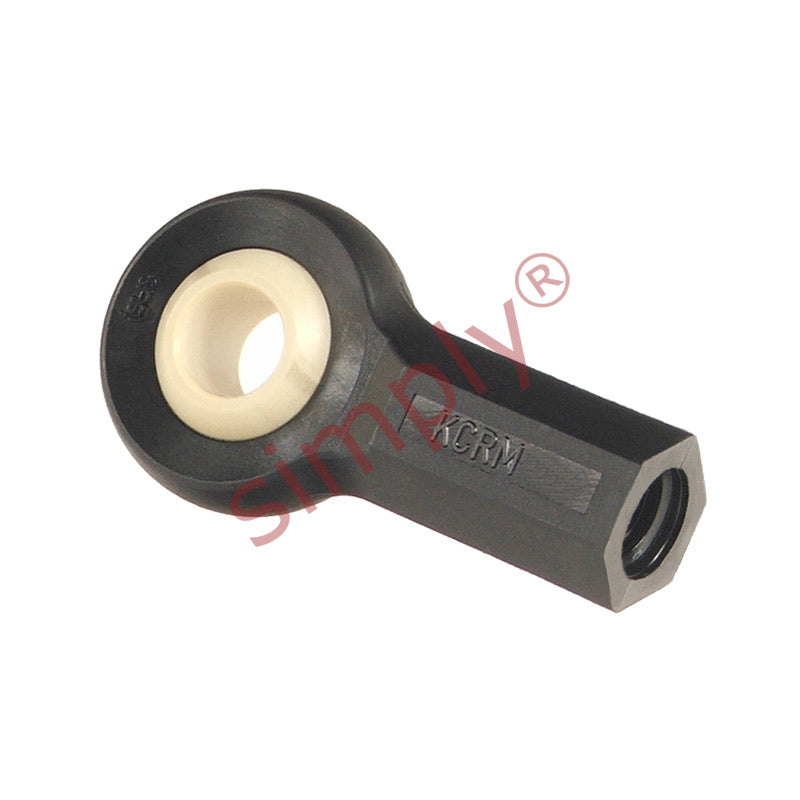

igubal KCRM06MH Right Hand Female Plastic Rod End 6mm Bore M6 Thread with Metal Insert - Allow 2-3 Days
- Regular price
- €15.40 ex VAT
- Sale price
- €15,40
- Regular price
-
Not in stock
Quantity Price Breaks
5+
€15.25
10+
€14.63
20+
€14.32
50+
€13.86
100+
€13.55
500+
€12.78
1000+
€10.78
SKU:
KCRM-06.MH
igubal KCRM06MH Right Hand Female Plastic Rod End 6mm Bore M6 Thread with Metal Insert - Allow 2-3 Days
- Regular price
- €15.40 ex VAT
- Sale price
- €15,40
- Regular price
-
Description
|
IGUS igubal® KCRM - MH series right hand female thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint, they are very smooth and have no dirt traps and have high dampening qualities. They have a very high resistance to corrosion and chemicals. The MH version has a stainless steel sleeve inserted through the spherical ball for enhanced torque and prevents over tightening of the bolt through the ball. Materials: Ball material iglidur® W300, Housing igumid G Operating Temperature Range: Long term application temperature of 90 Deg C (up to 110 Deg C short term) Uses: They are suitable for rotary, oscillating and linear movements and are light weight. Tolerances: They are manufactured in accordance to DIN ISO 12240 Benefits: Smooth design has no dirt traps, Compensation of misalignment, Light weight, Excellent corrosion resistance, Hexagonal shaped body to accommodate a spanner to assist in fitting |
