SKU: KGBA50100PPAS-INA

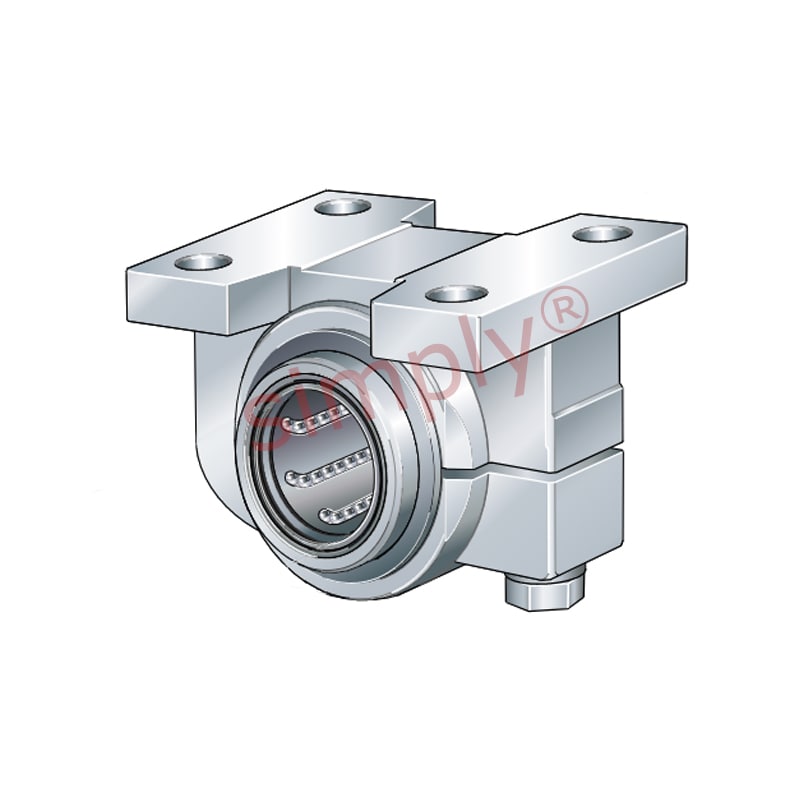

INA KGBA50100PPAS Linear Bearing
- Regular price
- €212.48 ex VAT
- Sale price
- €212,48
- Regular price
-
In stock
Quantity Price Breaks
10
€189.11
19
€178.48
29
€176.36
39
€174.23
49
€172.11
74
€169.98
99
€159.36
199
€157.24
249
€155.11
499
€152.99
999
€148.74
SKU:
KGBA50100PPAS-INA
INA KGBA50100PPAS Linear Bearing
- Regular price
- €212.48 ex VAT
- Sale price
- €212,48
- Regular price
-

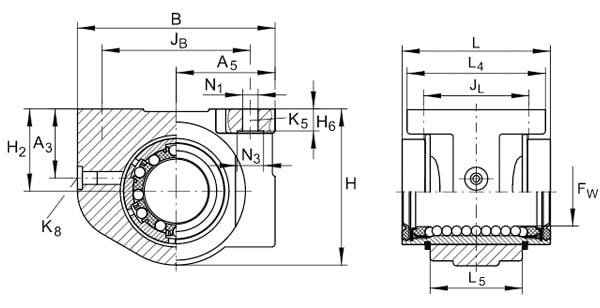

Technical
| Fw | = | 50mm (Tolerance: +0.013/-0.002) |
| H | = | 98mm |
| B | = | 130mm |
| L | = | 100mm (Tolerance: h12) |
| Number of rows of balls | = | 6 |
| A3 | = | 34mm |
| A5 | = | 65mm (Tolerance: +0.015/-0.015) |
| H2 | = | 50mm (Tolerance: +0.015/-0.015) |
| H6 | = | 12.5mm (Tolerance: 0/-0.5) |
| JB | = | 108mm (Tolerance: +0.2/-0.2) |
| JL | = | 50mm (Tolerance: +0.2/-0.2) |
| K5 | = | M8 (for fixing screws to ISO 4762-8.8< |
| br> | = | If there is a possibility of setting, the screws should be secured against rotation |
| K8 Lubrication nipple | = | NIPA2 |
| L4 | = | 70mm |
| L5 | = | 72mm |
| N1 | = | 9.2mm |
| N3 | = | 15mm |
| Mass | = | 1.88 kg |
| Dynamic load C | = | 8700 N< |
| br> | = | The basic load ratings are valid only for hardened (650 HV + 165 HV) and ground shaft raceways |
| Static load C0 | = | 6300 N< |
| br> | = | The basic load ratings are valid only for hardened (650 HV + 165 HV) and ground shaft raceways |
