SKU: KH1026-EU

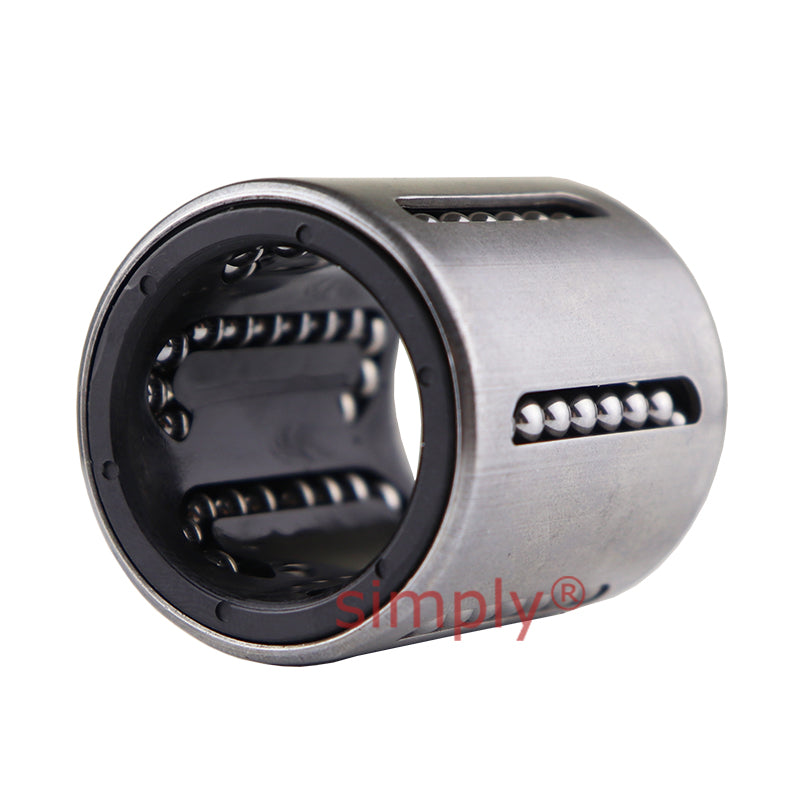

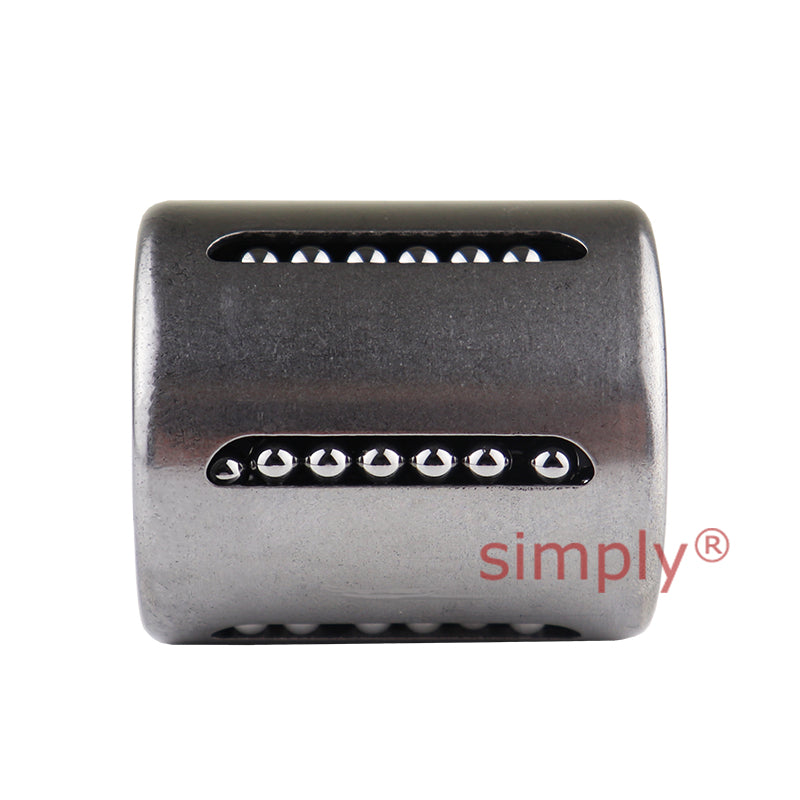

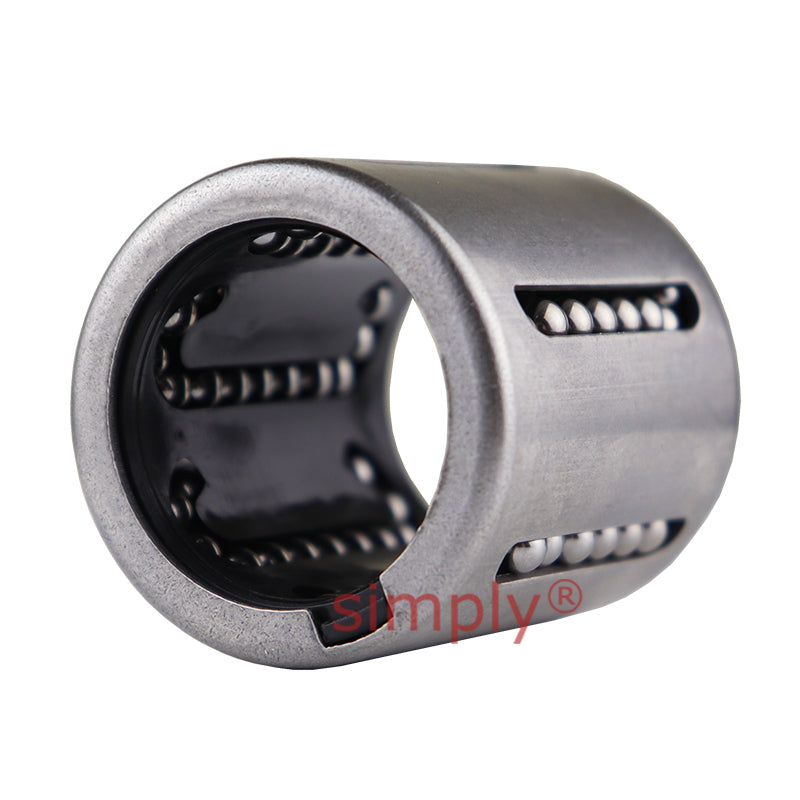

Budget KH10 Relubricatable Closed Linear Ball Bushing 10x17x26mm
- Regular price
- €8.39 ex VAT
- Sale price
- €8,39
- Regular price
-
Quantity Price Breaks
Budget KH10 Relubricatable Closed Linear Ball Bushing 10x17x26mm
- Regular price
- €8.39 ex VAT
- Sale price
- €8,39
- Regular price
-
Description
Quality Budget KH Linear Ball Bearings: These compact range linear ball bearings have a small radial design envelope and are particularly economical. The low radial section height makes them ideal for applications in which only a small amount of radial space is available. KH linear ball bearings have a closed design, making them suitable for use on shafts. The bearings are maintenance-free for many applications due to the initial greasing with high-quality grease. If necessary, they can be re-lubricated via the openings in the outer ring. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Economical, maintenance-free, re-lubricatable, suitable for applications with a small amount of available radial space.
Technical
| Fw | = | 10mm |
| D | = | 17mm |
| L | = | 26mm |
| JL4 | = | 6mm |
| N2 | = | 2.5mm |
| Mass | = | 0.0145 kg |
| Basic dynamic load rating | = | 510 N |
| Basic static load rating C0 min | = | 370 N |
| Basic dynamic load rating C max | = | 590 N |
| Basic static load rating C0 max | = | 520 N |
