SKU: KH5070-EU

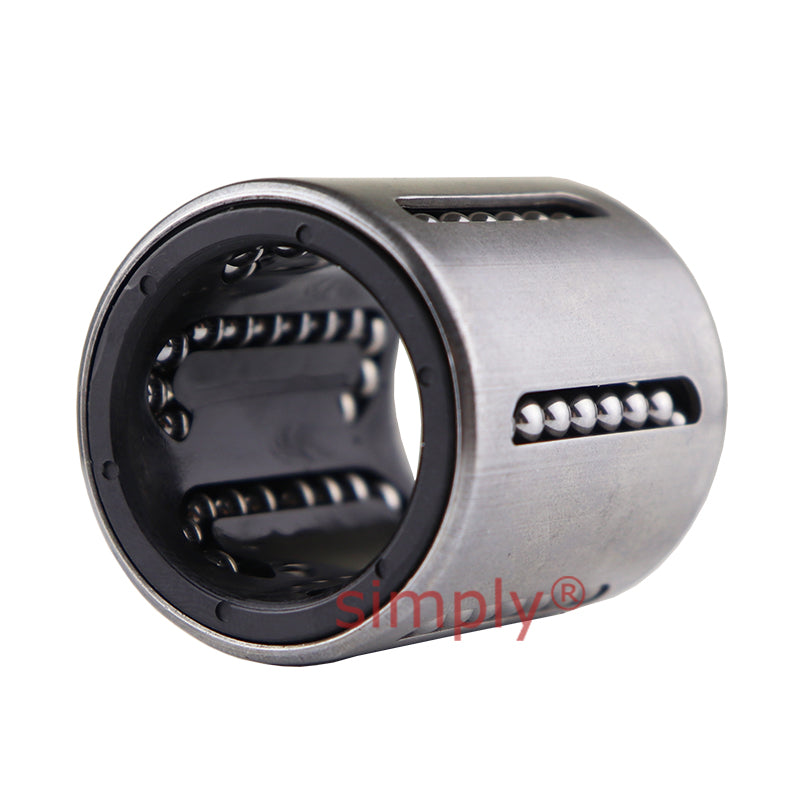

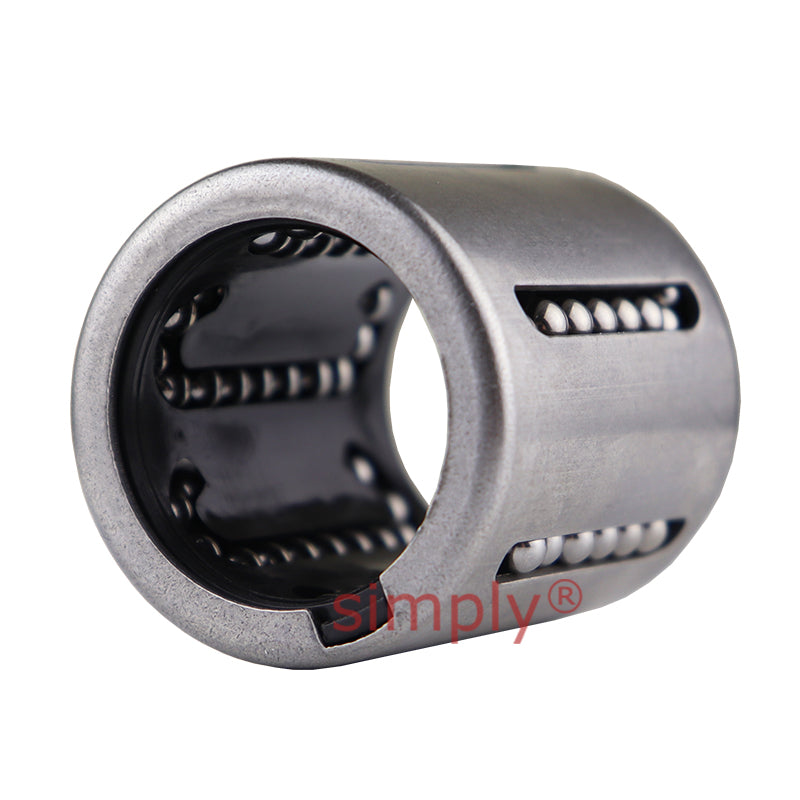

Budget KH50 Relubricatable Closed Linear Ball Bushing 50x62x70mm
- Regular price
- €27.53 ex VAT
- Sale price
- €27,53
- Regular price
-
Quantity Price Breaks
Budget KH50 Relubricatable Closed Linear Ball Bushing 50x62x70mm
- Regular price
- €27.53 ex VAT
- Sale price
- €27,53
- Regular price
-
Description
Quality Budget KH Linear Ball Bearings: These compact range linear ball bearings have a small radial design envelope and are particularly economical. The low radial section height makes them ideal for applications in which only a small amount of radial space is available. KH linear ball bearings have a closed design, making them suitable for use on shafts. The bearings are maintenance-free for many applications due to the initial greasing with high-quality grease. If necessary, they can be re-lubricated via the openings in the outer ring. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Economical, maintenance-free, re-lubricatable, suitable for applications with a small amount of available radial space.
Technical
| Fw | = | 50mm |
| D | = | 62mm |
| L | = | 70mm |
| JL4 | = | 9mm |
| N2 | = | 2.5mm |
| Mass | = | 0.252 kg |
| Basic dynamic load rating | = | 6800 N |
| Basic static load rating C0 min | = | 6300 N |
| Basic dynamic load rating C max | = | 6800 N |
| Basic static load rating C0 max | = | 7000 N |
