SKU: KM10-SKF

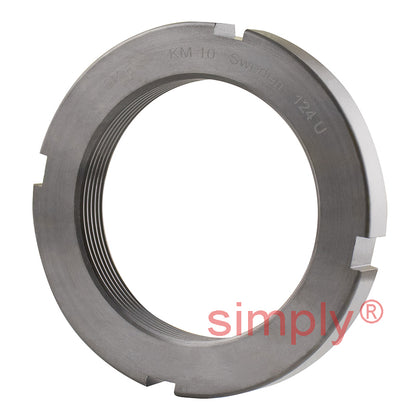

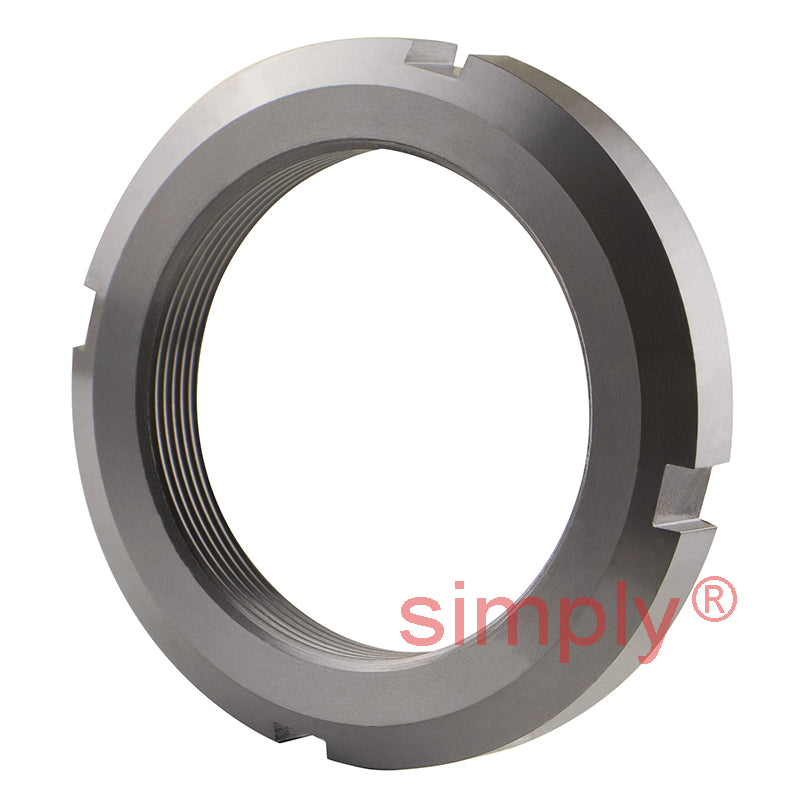

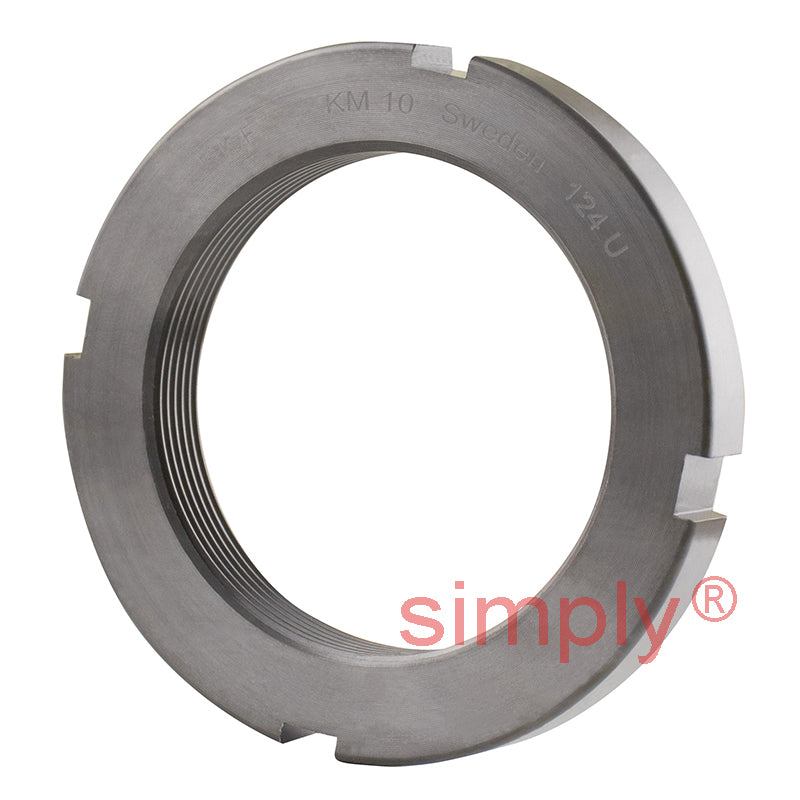

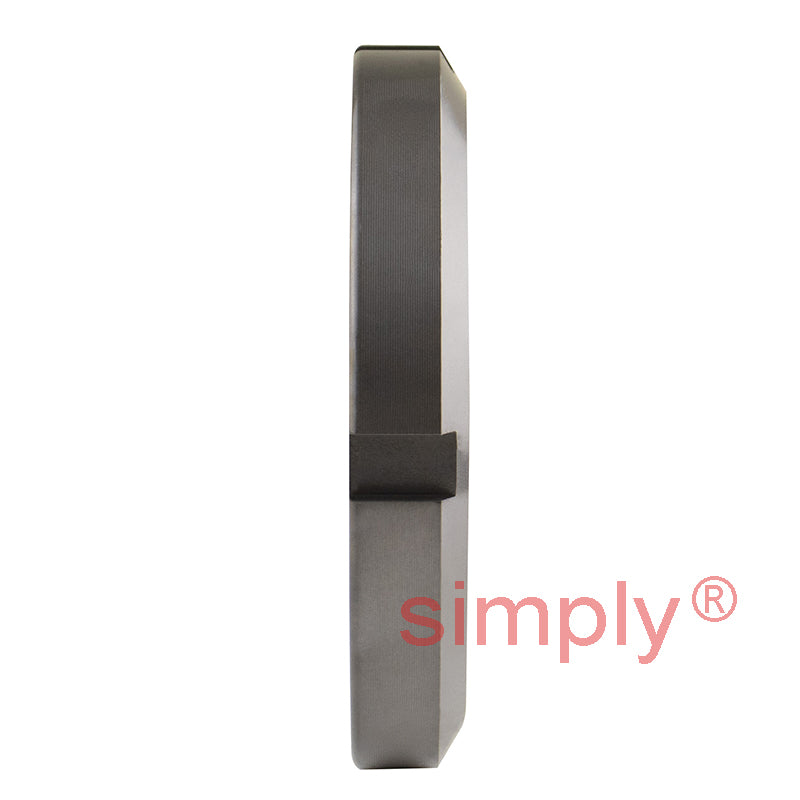

SKF KM10 Lock Nut (Lock Washer Type) M50x1.5mm
- Regular price
- €18.45 ex VAT
- Sale price
- €18,45
- Regular price
-
In stock
Quantity Price Breaks
10
€16.42
19
€15.50
29
€15.31
39
€15.13
49
€14.94
74
€14.76
99
€13.84
199
€13.65
249
€13.47
499
€13.28
999
€12.92
SKU:
KM10-SKF
SKF KM10 Lock Nut (Lock Washer Type) M50x1.5mm
- Regular price
- €18.45 ex VAT
- Sale price
- €18,45
- Regular price
-
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
Technical
| d1 | = | 61mm |
| d3 | = | 70mm |
| B | = | 11mm |
| b | = | 6mm |
| h | = | 2.5mm |
| Axial load capacity | = | 91.5 kN |
| Weight | = | 0.14 kg |
| G | = | M50x1.5 |
| Designation | = | KM10 |
| Washer | = | MB10 |
| Spanner | = | HN10 |
