SKU: KM11-NYLOC-EU

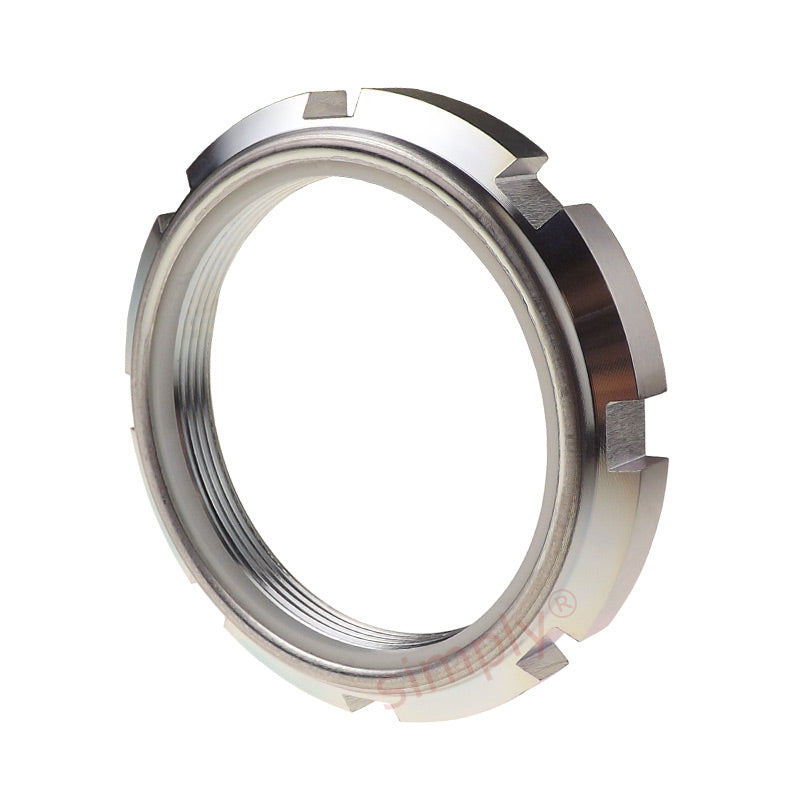

KM11 Nyloc Lock Nut (Lock Washer Type) M55x2mm
- Regular price
- €15.05 ex VAT
- Sale price
- €15,05
- Regular price
-
Not in stock
Quantity Price Breaks
10
€13.39
19
€12.64
29
€12.49
39
€12.34
49
€12.19
74
€12.04
99
€11.29
199
€11.14
249
€10.99
499
€10.84
999
€10.54
SKU:
KM11-NYLOC-EU
KM11 Nyloc Lock Nut (Lock Washer Type) M55x2mm
- Regular price
- €15.05 ex VAT
- Sale price
- €15,05
- Regular price
-
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |

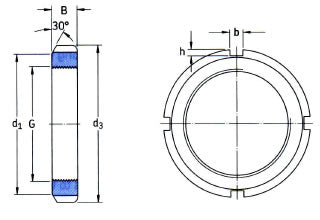

Technical
| G | = | M55x2mm |
| d1 | = | 67mm |
| d3 | = | 75mm |
| B | = | 11mm |
| b | = | 7mm |
| h | = | 3mm |
| Static axial load capacity | = | 91.5 kN |
| Weight | = | 0.15 kg |
| Lock nut | = | KM11 |
| Appropriate locking washer | = | MB11 |
| Appropriate spanner | = | HN11 |
