SKU: KR19PPSK-MB

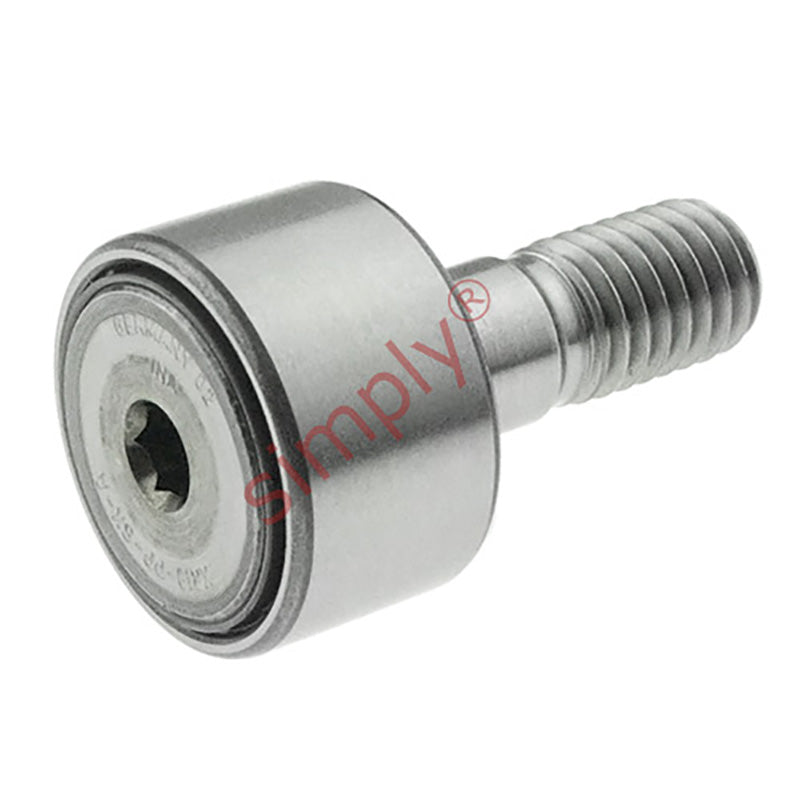

Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
- Regular price
- €38.88 ex VAT
- Sale price
- €38,88
- Regular price
-
In stock
Quantity Price Breaks
10
€34.60
19
€32.66
29
€32.27
39
€31.88
49
€31.49
74
€31.10
99
€29.16
199
€28.77
249
€28.38
499
€27.99
999
€27.22
SKU:
KR19PPSK-MB
Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
- Regular price
- €38.88 ex VAT
- Sale price
- €38,88
- Regular price
-
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Technical
| D | = | 19mm |
| C | = | 11mm |
| d (Stud Diameter) | = | 8mm |
| B | = | 32mm |
| B1 | = | 20mm |
| C1 | = | 0.6mm |
| d1 | = | 15mm |
| G | = | M8mm |
| G1 | = | 10mm |
| r min | = | 0.15mm |
| SW | = | 4mm |
| Dynamic load | = | 3470 N |
| Static load | = | 3800 N |
| Fatigue load limit Pu | = | 415 N |
| Radial dynamic load | = | 3800 N |
| Radial static load | = | 5500 N |
| Speed rating | = | 11000 rpm |
| Weight | = | 29 g |
