SKU: KR22B-MB

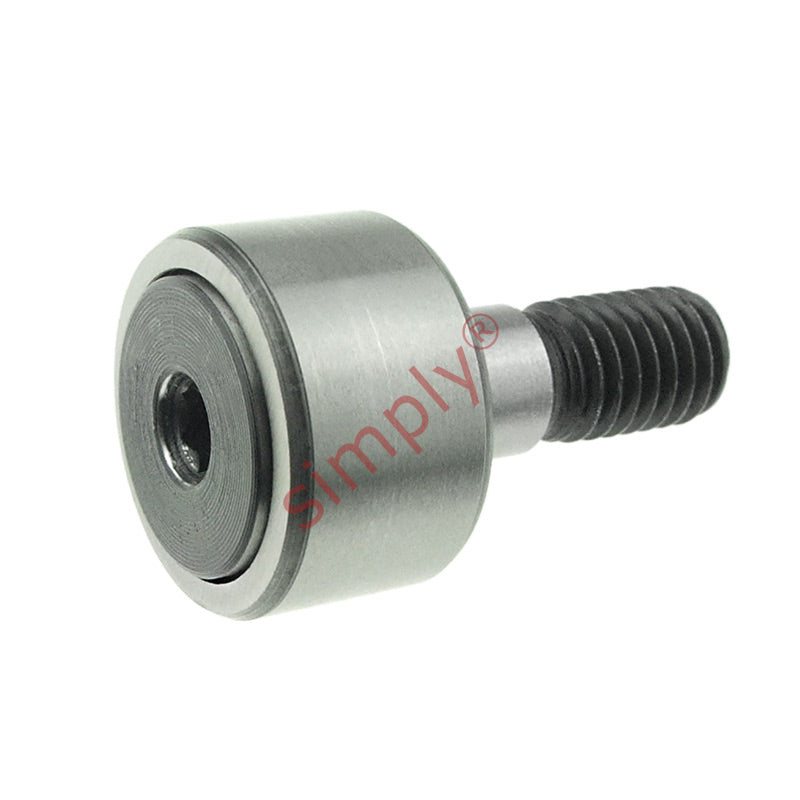

Major Brand KR22B Crowned Cam Follower 22x12x10 M10x1 Thread
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
In stock
Quantity Price Breaks
10
€32.77
19
€30.93
29
€30.56
39
€30.19
49
€29.82
74
€29.46
99
€27.62
199
€27.25
249
€26.88
499
€26.51
999
€25.77
SKU:
KR22B-MB
Major Brand KR22B Crowned Cam Follower 22x12x10 M10x1 Thread
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
Description
KR-B Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |

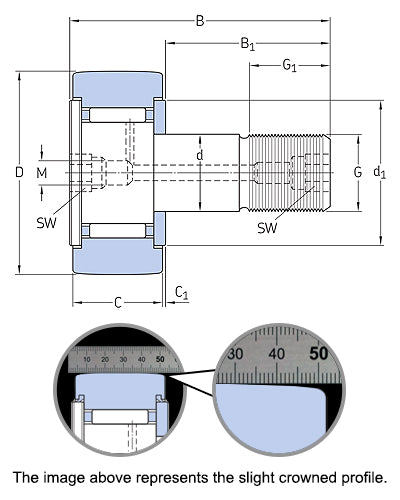

Technical
| D | = | 22mm |
| C | = | 12mm |
| d (Stud Diameter) | = | 10mm |
| B | = | 36mm |
| B1 | = | 23mm |
| C1 | = | 0.6mm |
| d1 | = | 17.5mm |
| G | = | M10x1mm |
| G1 | = | 12mm |
| r min | = | 0.3mm |
| SW | = | 5mm |
| Dynamic load | = | 4400 N |
| Static load | = | 5000 N |
| Fatigue load limit Pu | = | 560 N |
| Radial dynamic load | = | 4250 N |
| Radial static load | = | 6000 N |
| Speed rating | = | 8000 rpm |
| Weight | = | 45 g |
