SKU: KR26PPA-MB
Major Brand KR26PPA Contact Sealed Crowned Cam Follower 26x12x10 M10x1 Thread
- Regular price
- €48.89 ex VAT
- Sale price
- €48,89
- Regular price
-
Not in stock
Quantity Price Breaks
10
€43.51
19
€41.07
29
€40.58
39
€40.09
49
€39.60
74
€39.11
99
€36.67
199
€36.18
249
€35.69
499
€35.20
999
€34.22
SKU:
KR26PPA-MB
Major Brand KR26PPA Contact Sealed Crowned Cam Follower 26x12x10 M10x1 Thread
- Regular price
- €48.89 ex VAT
- Sale price
- €48,89
- Regular price
-
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |

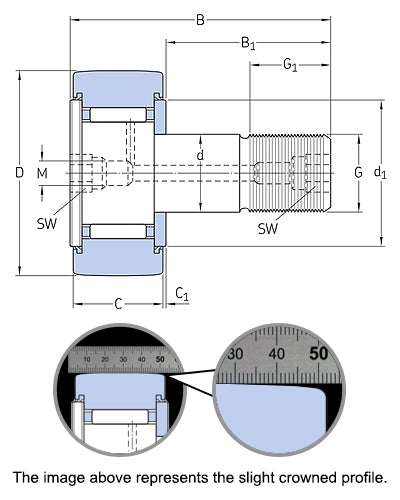

Technical
| D | = | 26mm |
| C | = | 12mm |
| d(Stud Diameter) | = | 10mm |
| B | = | 36mm |
| B1 | = | 23mm |
| C1 | = | 0.6mm |
| d1 | = | 17.5mm |
| G | = | M10x1 |
| G1 | = | 12mm |
| r min | = | 0.3mm |
| SW | = | 5mm |
| Dynamic load | = | 4840 N |
| Static load | = | 6000 N |
| Fatigue load limit Pu | = | 655 N |
| Radial dynamic load | = | 9300 N |
| Radial static load | = | 13200 N |
| Speed rating | = | 8000 rpm |
| Weight | = | 57 g |
