SKU: KR30PP-MB

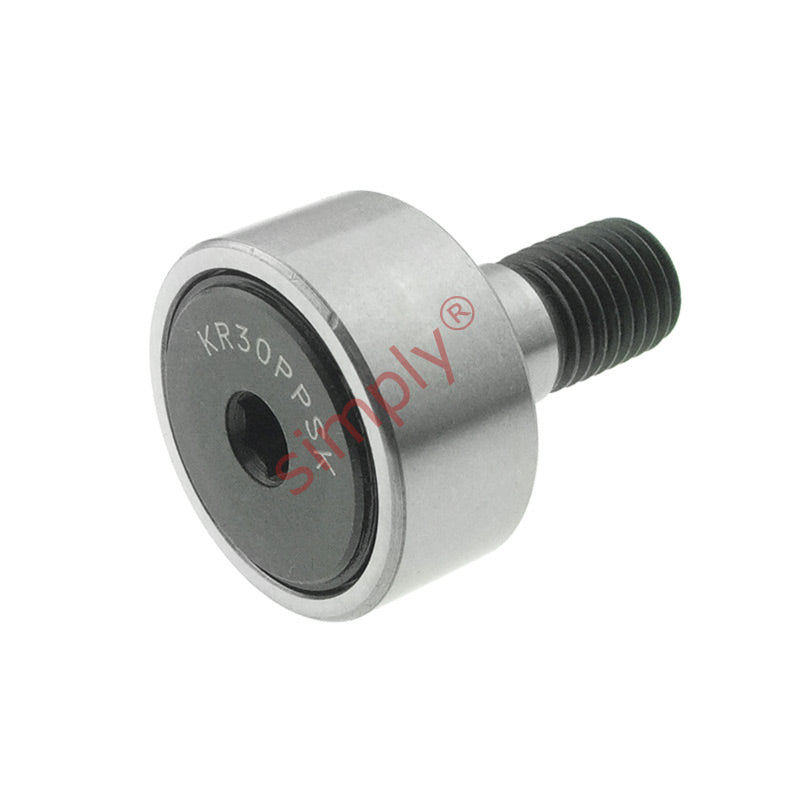

Major Brand KR30PP Contact Sealed Crowned Cam Follower 30x14x12 M12x1.5 Thread
- Regular price
- €44.65 ex VAT
- Sale price
- €44,65
- Regular price
-
In stock
Quantity Price Breaks
10
€39.74
19
€37.51
29
€37.06
39
€36.61
49
€36.17
74
€35.72
99
€33.49
199
€33.04
249
€32.59
499
€32.15
999
€31.26
SKU:
KR30PP-MB
Major Brand KR30PP Contact Sealed Crowned Cam Follower 30x14x12 M12x1.5 Thread
- Regular price
- €44.65 ex VAT
- Sale price
- €44,65
- Regular price
-
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Technical
| D | = | 30mm |
| C | = | 14mm |
| d(Stud Diameter) | = | 12mm |
| B | = | 40mm |
| B1 | = | 25mm |
| B2 | = | 6mm |
| C1 | = | 0.6mm |
| d1 | = | 23mm |
| G | = | M12x1.5 |
| G1 | = | 13mm |
| M | = | 6mm |
| M1 | = | 3mm |
| r min | = | 0.6mm |
| Dynamic load | = | 6440 N |
| Static load | = | 8000 N |
| Fatigue load limit Pu | = | 880 N |
| Radial dynamic load | = | 7800 N |
| Radial static load | = | 11200 N |
| Speed rating | = | 5500 rpm |
| Weight | = | 87 g |
