SKU: KR90PPA-MB

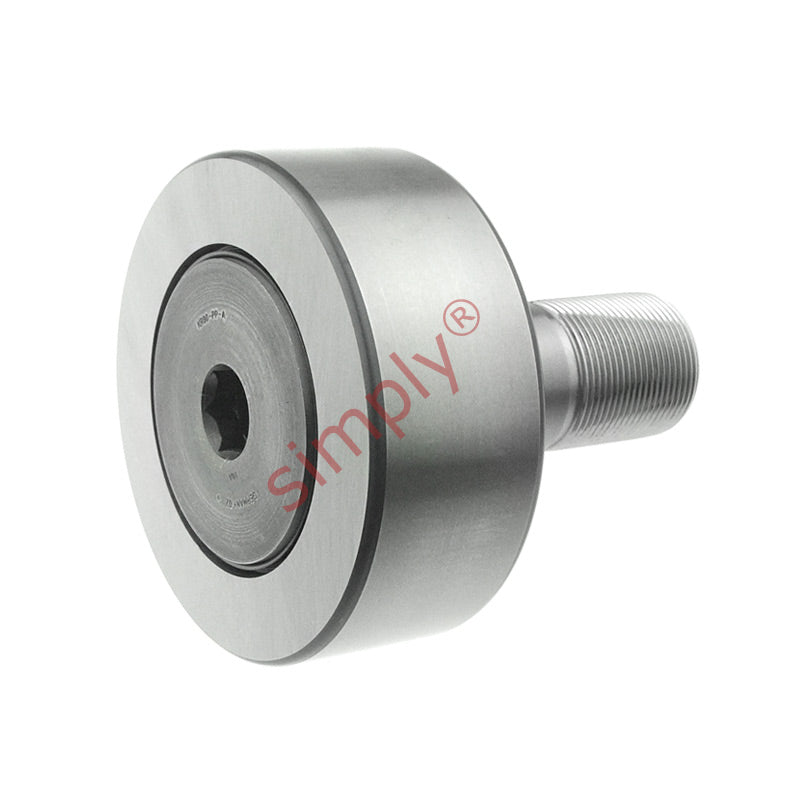

Major Brand KR90PPA Contact Sealed Crowned Cam Follower 90x35x30 M30x1.5 Thread
- Regular price
- €206.38 ex VAT
- Sale price
- €206,38
- Regular price
-
In stock
Quantity Price Breaks
10
€183.68
19
€173.36
29
€171.30
39
€169.23
49
€167.17
74
€165.10
99
€154.79
199
€152.72
249
€150.66
499
€148.59
999
€144.47
SKU:
KR90PPA-MB
Major Brand KR90PPA Contact Sealed Crowned Cam Follower 90x35x30 M30x1.5 Thread
- Regular price
- €206.38 ex VAT
- Sale price
- €206,38
- Regular price
-
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Technical
| D | = | 90mm |
| C | = | 35mm |
| d(Stud Diameter) | = | 30mm |
| B | = | 100mm |
| B1 | = | 63mm |
| B2 | = | 15mm |
| C1 | = | 1mm |
| d1 | = | 53mm |
| G | = | M30x1.5 |
| G1 | = | 32mm |
| M1 | = | 4mm |
| r min | = | 1.1mm |
| SW | = | 14mm |
| Dynamic load | = | 38000 N |
| Static load | = | 76500 N |
| Fatigue load limit Pu | = | 9500 N |
| Radial dynamic load | = | 160000 N |
| Radial static load | = | 228000 N |
| Speed rating | = | 1300 rpm |
| Weight | = | 1980 g |
