SKU: KRE32PPA-MB
Major Brand KRE32PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 32x14x15 M12x1.5 Thread
- Regular price
- €95.71 ex VAT
- Sale price
- €95,71
- Regular price
-
In stock
Quantity Price Breaks
10
€85.18
19
€80.40
29
€79.44
39
€78.48
49
€77.53
74
€76.57
99
€71.78
199
€70.83
249
€69.87
499
€68.91
999
€67.00
SKU:
KRE32PPA-MB
Major Brand KRE32PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 32x14x15 M12x1.5 Thread
- Regular price
- €95.71 ex VAT
- Sale price
- €95,71
- Regular price
-
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.

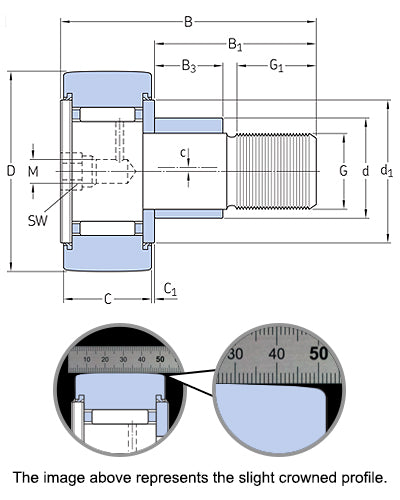

Technical
| D | = | 32mm |
| C | = | 14mm |
| d(Stud Diameter) | = | 15mm |
| B | = | 40mm |
| B1 | = | 25mm |
| C1 | = | 0.6mm |
| d1 | = | 23mm |
| G | = | M12x1.5 |
| G1 | = | 13mm |
| r min | = | 0.6mm |
| SW | = | 6mm |
| Eccentric stud c | = | 0.5mm |
| B3 | = | 11mm |
| Dynamic load | = | 6710 N |
| Static load | = | 8500 N |
| Fatigue load limit Pu | = | 950 N |
| Radial dynamic load | = | 10600 N |
| Radial static load | = | 15000 N |
| Speed rating | = | 1550 rpm |
| Weight | = | 100 g |
