SKU: KRV26PPA-MB

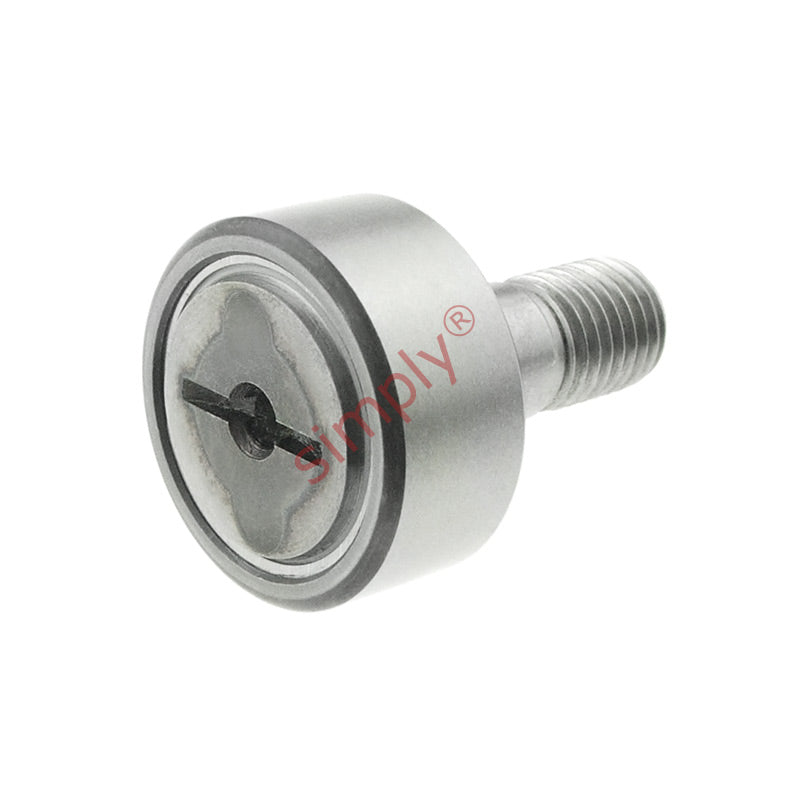

Major Brand KRV26PPA Contact Sealed Crowned Cam Follower 26x12x10 M10x1 Thread
- Regular price
- €42.69 ex VAT
- Sale price
- €42,69
- Regular price
-
Quantity Price Breaks
Major Brand KRV26PPA Contact Sealed Crowned Cam Follower 26x12x10 M10x1 Thread
- Regular price
- €42.69 ex VAT
- Sale price
- €42,69
- Regular price
-
Description
KRV-PP Series Crowned Cam Followers: These cam followers incorporate a full complement needle roller assembly allowing for maximum load support. Manufactured with a needle roller design that permits a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed-on side washer. Also, these cam followers are supplied with contact seals on both sides. Because of the high load tolerance, these cam followers cannot operate continuously at the same high speeds as the KR series. |
Technical
| D | = | 26mm |
| C | = | 12mm |
| d(Stud Diameter) | = | 10mm |
| B | = | 36mm |
| B1 | = | 23mm |
| C1 | = | 0.6mm |
| d1 | = | 17.5mm |
| G | = | M10x1 |
| G1 | = | 12mm |
| r min | = | 0.3mm |
| SW | = | 5mm |
| Dynamic load | = | 6820 N |
| Static load | = | 11000 N |
| Fatigue load limit Pu | = | 1250 N |
| Radial dynamic load | = | 11400 N |
| Radial static load | = | 16300 N |
| Speed rating | = | 2600 rpm |
| Weight | = | 59 g |
