SKU: LAZY/680
680mm Round Lazy Susan Rotating Aluminium Turntable Bearing
- Regular price
- €167.66 ex VAT
- Sale price
- €167,66
- Regular price
-
In stock
Quantity Price Breaks
10
€149.22
19
€140.83
29
€139.16
39
€137.48
49
€135.80
74
€134.13
99
€125.75
199
€124.07
249
€122.39
499
€120.72
999
€117.36
SKU:
LAZY/680
680mm Round Lazy Susan Rotating Aluminium Turntable Bearing
- Regular price
- €167.66 ex VAT
- Sale price
- €167,66
- Regular price
-
Description

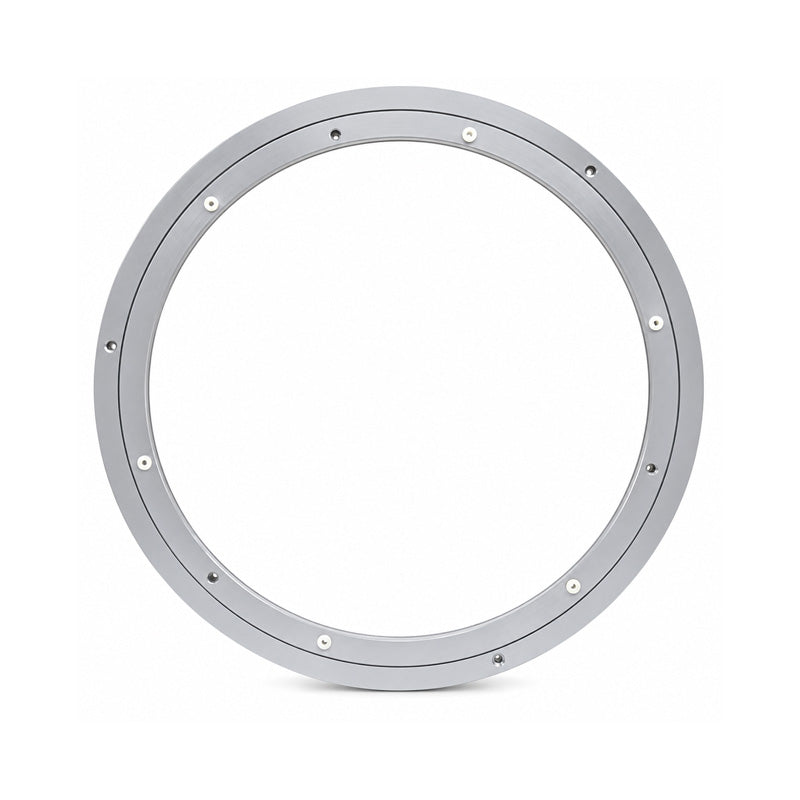

Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 460 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
Technical
| Nominal Inside Diameter | = | 600mm = 23.62 inch |
| Nominal Outside Diameter | = | 680mm = 26.77 inch |
| W | = | 14mm = 0.55 inch |
| W1 | = | 18mm = 0.71 inch |
| D1 | = | 19.5mm = 0.77 inch |
| D2 | = | 20.5mm = 0.81 inch |
| Bolt Hole Diameter | = | 7.5mm = 0.29 inch |
| Bolt Circle Diameter 1 | = | 609.75mm = 24.01 inch |
| Bolt Circle Diameter 2 | = | 669.75mm = 26.37 inch |
| Max Load Weight | = | 460 lbs |
| Weight | = | 3kg |
