SKU: LBB8-UU-OP-IKO

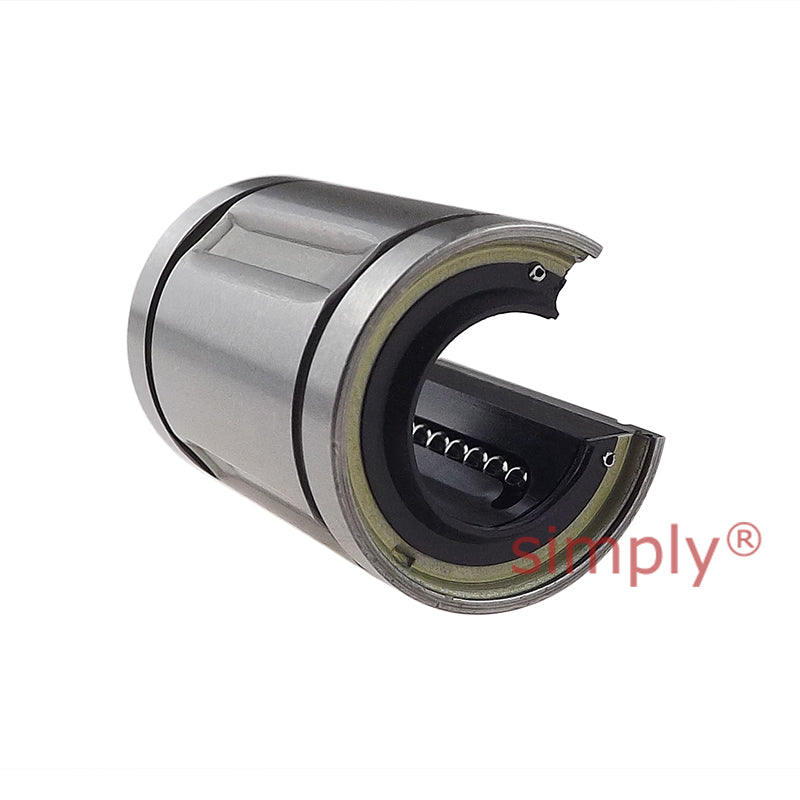

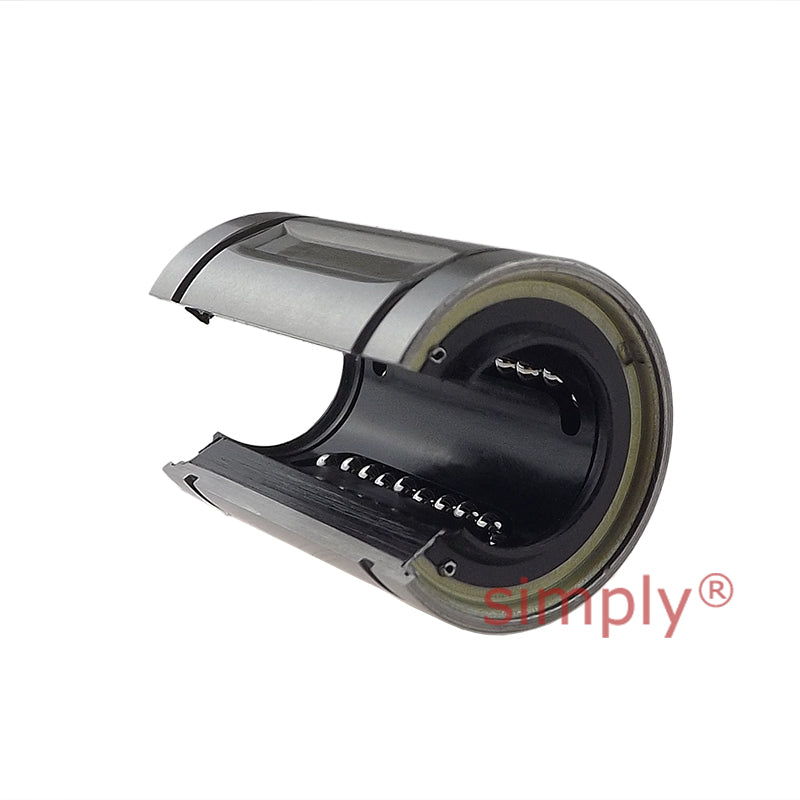

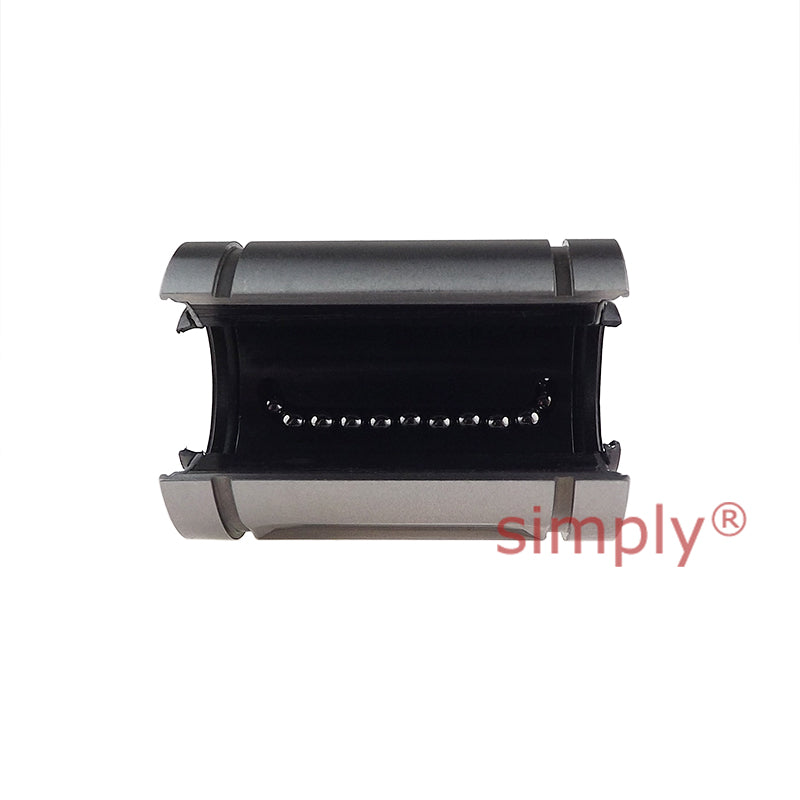

IKO LBB8UUOP Imperial Open Linear Ball Bushing 0.5x0.875x1.25 inches
- Regular price
- €29.64 ex VAT
- Sale price
- €29,64
- Regular price
-
ex VAT
Quantity Price Breaks
Description

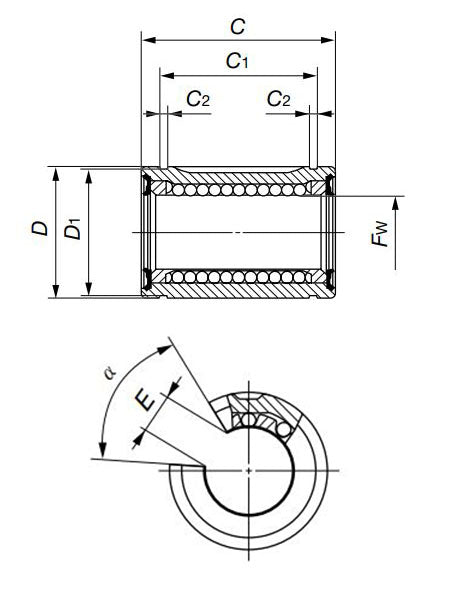

Open Linear Bushing: Linear Bushings are a high precision linear motion rolling guide which travels along a shaft to achieve endless linear motion. In the external cylinder, a retainer, steel balls, etc. are compactly incorporated. This open type has one or two fewer ball circuits than the standard type, creating an open section to allow clearance for shaft support. The open type bushing is commonly used with long shafts when one or more support blocks are needed to reduce shaft deflection or sag. The width of the support blocks can be determined to match the (E) dimension of the fan-shaped open section shown in the table of dimensions. The radial internal clearance can also be adjusted. This bushing also has two seals. The two seal types incorporate seals with superior dust protection performance at both ends of the external cylinder for preventing intrusion of foreign matter. The maximum allowable temperature for seals is 120°C.
