SKU: LBBR16-2LS-EWX

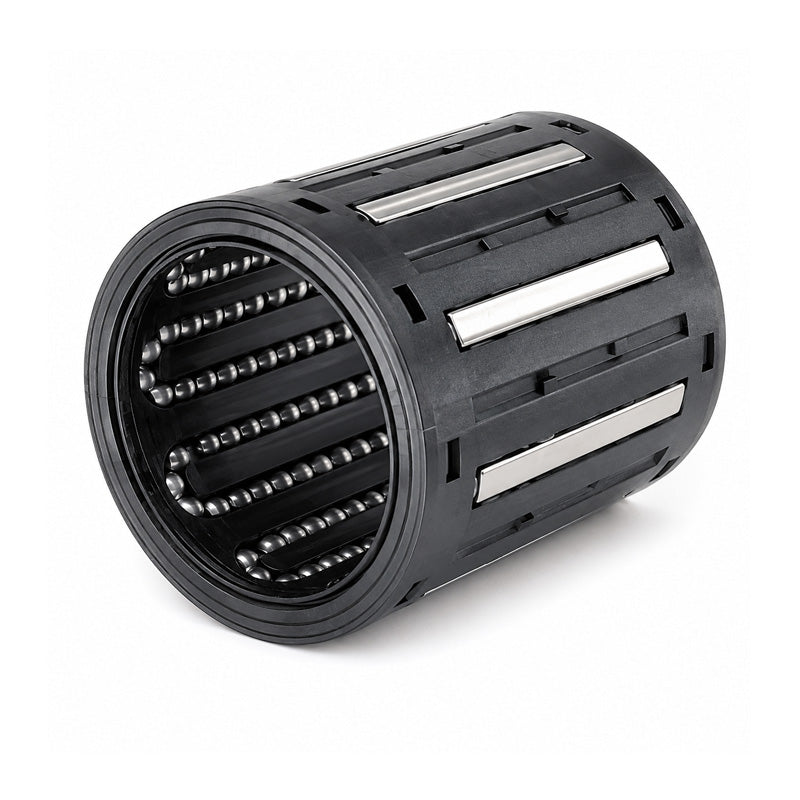

Ewellix LBBR16-2LS-EWX Closed Double Seal Linear Ball Bushing 16x24x30mm (SKF)
- Regular price
- €24.81 ex VAT
- Sale price
- €24,81
- Regular price
-
Quantity Price Breaks
Ewellix LBBR16-2LS-EWX Closed Double Seal Linear Ball Bushing 16x24x30mm (SKF)
- Regular price
- €24.81 ex VAT
- Sale price
- €24,81
- Regular price
-
Description
Ewellix Closed Linear Ball Bearings with Seals: These compact range linear ball bearings have a small radial design envelope and are particularly economical. The low radial section height makes them ideal for applications in which only a small amount of radial space is available. LBBR linear ball bearings have a closed design, making them suitable for use on shafts. The bearings are maintenance-free for many applications due to the initial greasing with high-quality grease. If necessary, they can be relubricated via the openings in the outer ring. This bearing has a lip seal on both sides of the bearing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Economical, maintenance-free, re-lubricatable, suitable for applications with a small amount of available radial space.
Technical
| F | = | 16mm |
| D | = | 24mm |
| C | = | 30mm |
| Number of Ball Rows | = | 5 |
| Dynamic Load C | = | 930 N |
| Static Load C | = | 630 N |
| Weight | = | 0.018kg |
