SKU: LFR.50/8-62RS.MB

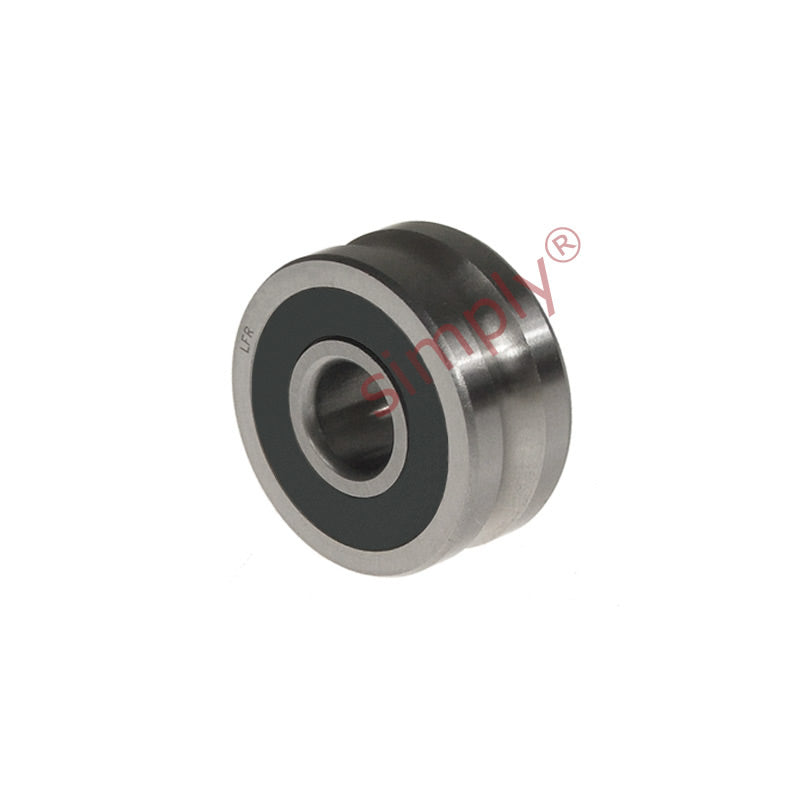

Major Brand LFR50/8-62RS Yoke Type Track Roller with U Groove 8x24x11mm
- Regular price
- €27.37 ex VAT
- Sale price
- €27,37
- Regular price
-
In stock
Quantity Price Breaks
10
€24.36
19
€22.99
29
€22.72
39
€22.44
49
€22.17
74
€21.90
99
€20.53
199
€20.25
249
€19.98
499
€19.71
999
€19.16
SKU:
LFR.50/8-62RS.MB
Major Brand LFR50/8-62RS Yoke Type Track Roller with U Groove 8x24x11mm
- Regular price
- €27.37 ex VAT
- Sale price
- €27,37
- Regular price
-
Description
|
Rubber Sealed U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with rubber seals inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The seal can be easily removed for applications that only require 1 seal. |
Technical
| d | = | 8mm |
| D max | = | 24mm |
| B | = | 11mm |
| AT | = | 14mm |
| C | = | 11mm |
| ds | = | 6mm |
| r min | = | 0.3mm |
| Dynamic load | = | 3670 N |
| Static load | = | 2280 N |
| Speed in grease | = | 1300 rpm |
| Speed in oil | = | 4560 rpm |
