SKU: LFR.5201-102RS.MB

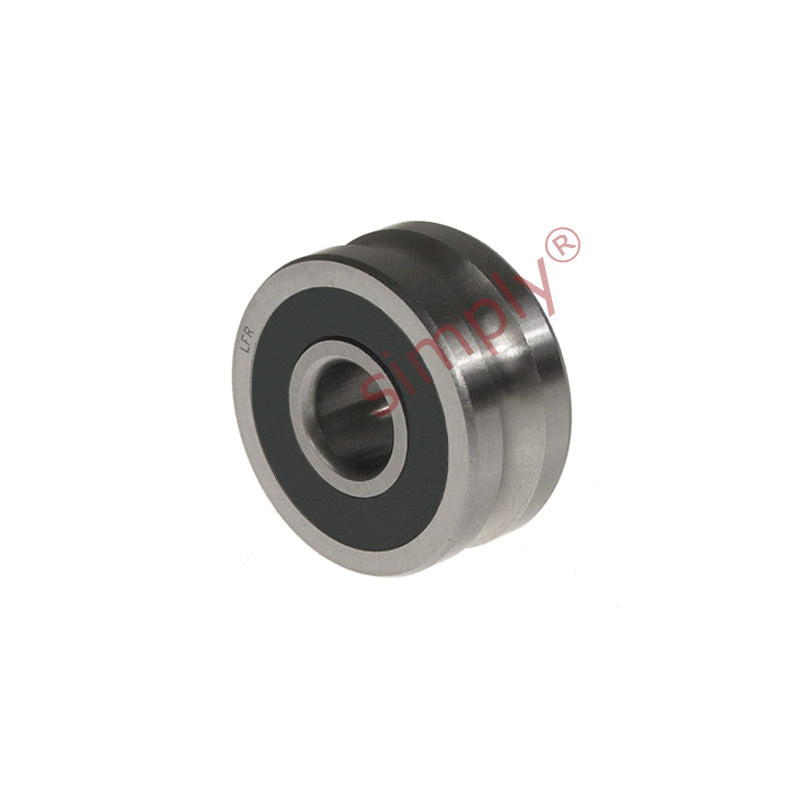

Major Brand LFR5201-102RS Yoke Type Track Roller with U Groove 12x35x15.9mm
- Regular price
- €61.04 ex VAT
- Sale price
- €61,04
- Regular price
-
Not in stock
Quantity Price Breaks
10
€54.33
19
€51.27
29
€50.66
39
€50.05
49
€49.44
74
€48.83
99
€45.78
199
€45.17
249
€44.56
499
€43.95
999
€42.73
SKU:
LFR.5201-102RS.MB
Major Brand LFR5201-102RS Yoke Type Track Roller with U Groove 12x35x15.9mm
- Regular price
- €61.04 ex VAT
- Sale price
- €61,04
- Regular price
-
Description
|
Rubber Sealed U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with rubber seals inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The seal can be easily removed for applications that only require 1 seal. |
Technical
| d | = | 12mm |
| D max | = | 35mm |
| B | = | 15.9mm |
| AT | = | 20.65mm |
| C | = | 15.9mm |
| ds | = | 10mm |
| r min | = | 0.3mm |
| Dynamic load | = | 8500 N |
| Static load | = | 5100 N |
| Speed in grease | = | 5100 rpm |
| Speed in oil | = | 10200 rpm |
