SKU: LFR.5206-202RS.MB

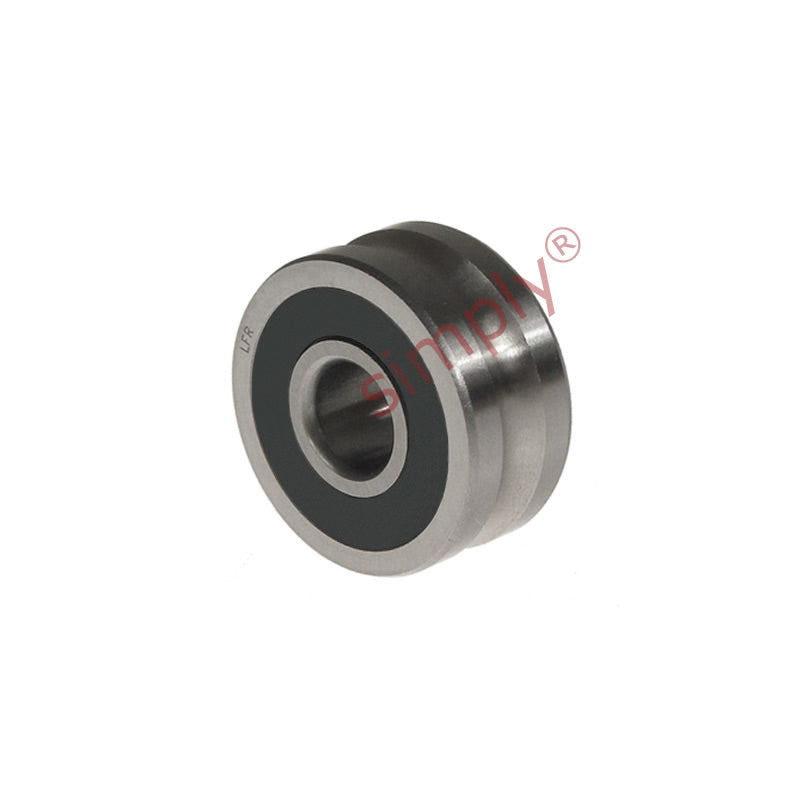

Major Brand LFR5206-202RS Yoke Type Track Roller with U Groove 25x72x23.8mm
- Regular price
- €61.04 ex VAT
- Sale price
- €61,04
- Regular price
-
In stock
Quantity Price Breaks
10
€54.33
19
€51.27
29
€50.66
39
€50.05
49
€49.44
74
€48.83
99
€45.78
199
€45.17
249
€44.56
499
€43.95
999
€42.73
SKU:
LFR.5206-202RS.MB
Major Brand LFR5206-202RS Yoke Type Track Roller with U Groove 25x72x23.8mm
- Regular price
- €61.04 ex VAT
- Sale price
- €61,04
- Regular price
-
Description
|
Rubber Sealed U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with rubber seals inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The seal can be easily removed for applications that only require 1 seal. |
Technical
| d | = | 25mm |
| D max | = | 72mm |
| B | = | 25.8mm |
| AT | = | 41mm |
| C | = | 23.8mm |
| ds | = | 20mm |
| r min | = | 0.6mm |
| Dynamic load | = | 29500 N |
| Static load | = | 16600 N |
| Speed in grease | = | 20700 rpm |
| Speed in oil | = | 33200 rpm |
