SKU: LFRI.50/8-62Z.MB

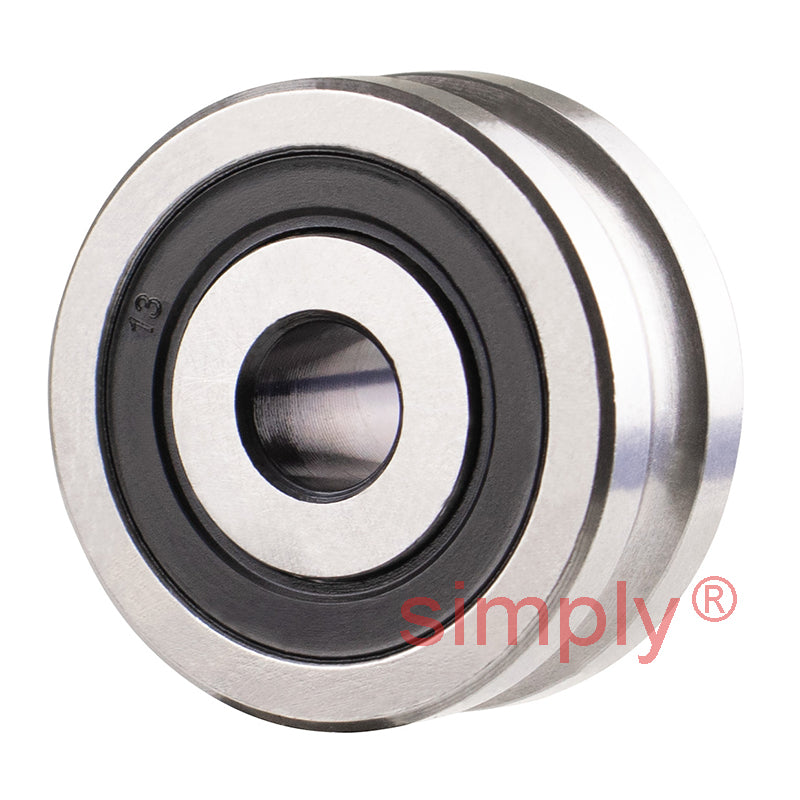

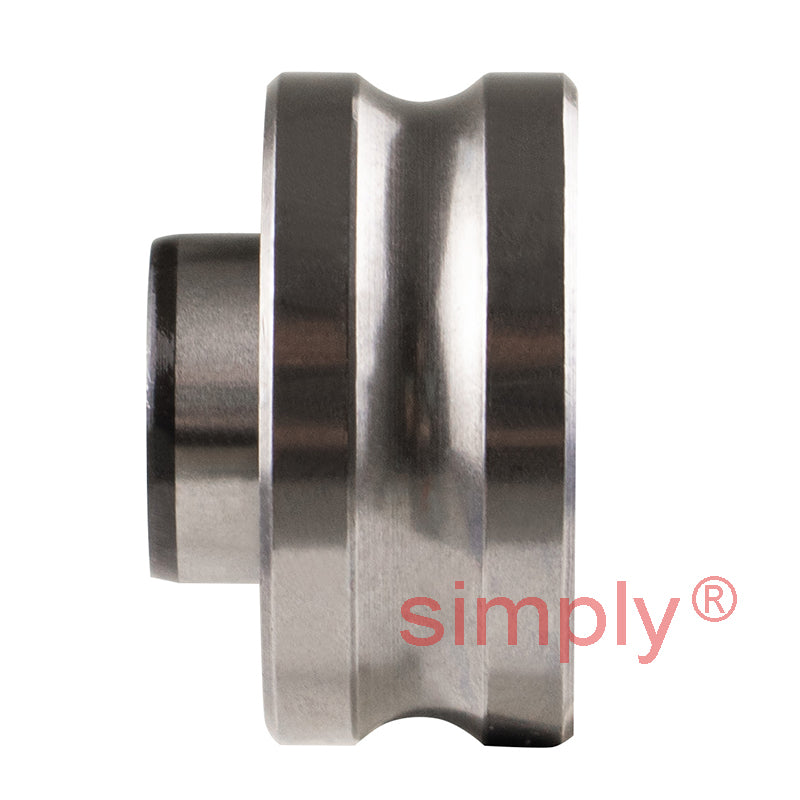

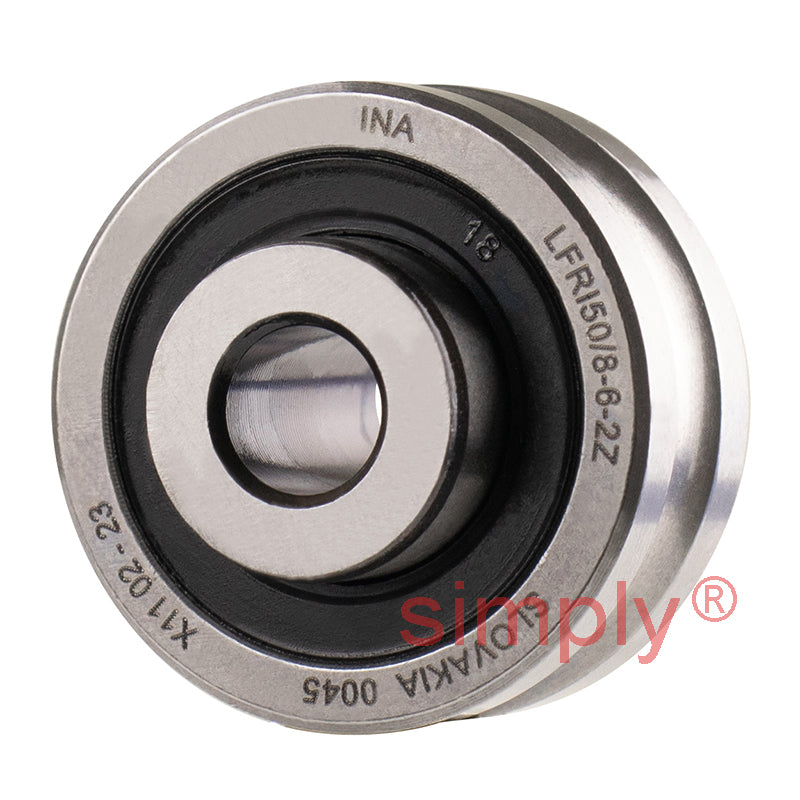

Major Brand LFRI50/8-62Z Yoke Type Track Roller with U Groove 6.1x24x11mm
- Regular price
- €24.22 ex VAT
- Sale price
- €24,22
- Regular price
-
Quantity Price Breaks
Major Brand LFRI50/8-62Z Yoke Type Track Roller with U Groove 6.1x24x11mm
- Regular price
- €24.22 ex VAT
- Sale price
- €24,22
- Regular price
-
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. The extended inner ring allows for fixation to any construction with use of a screw. |

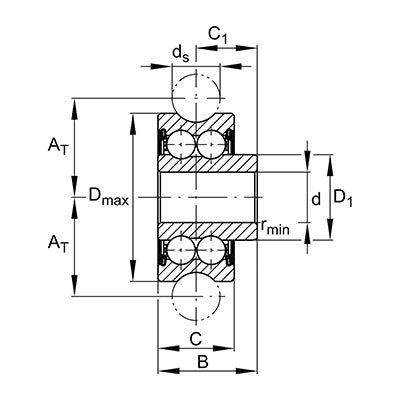

Technical
| d | = | 6.1mm |
| D max | = | 24mm |
| B | = | 15.1mm |
| AT | = | 14mm |
| C | = | 11mm |
| ds | = | 6mm |
| r min | = | 0.5mm |
| Dynamic load | = | 4100 N |
| Static load | = | 2300 N |
