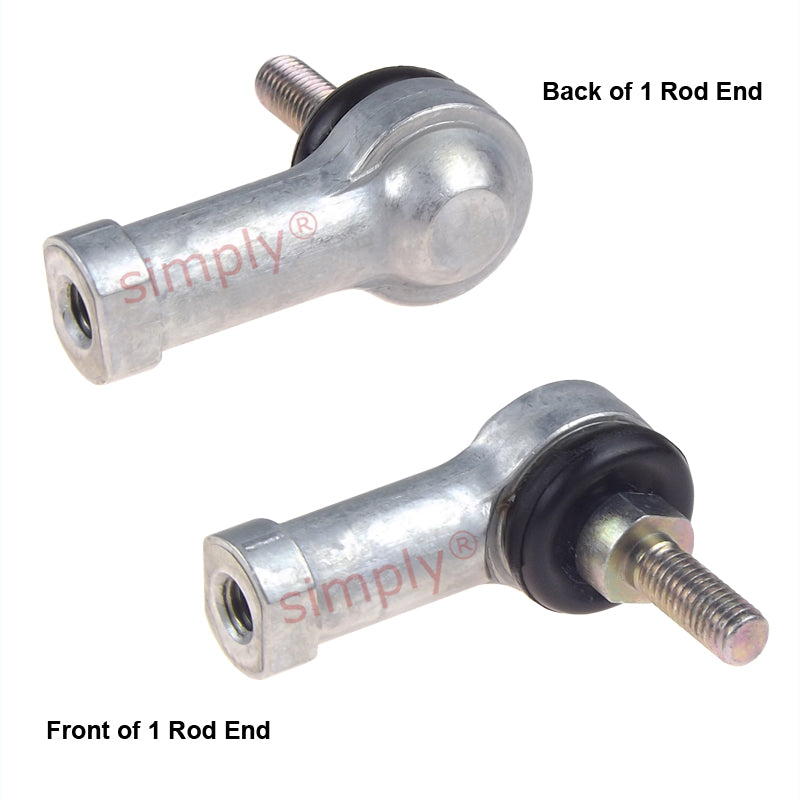

IKO LHSA6L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M6x1 Thread

SKU: LHSA-6L-IKO

IKO LHSA6L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M6x1 Thread

€14.46 ex VAT
€14,46
ex VAT
In stock

Quantity Price Breaks

10+ €12.87
19+ €12.15
29+ €12.00
39+ €11.86
49+ €11.71
74+ €11.57
99+ €10.85
199+ €10.70
249+ €10.56
499+ €10.41
999+ €10.12
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO LHSA6L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M6x1 Thread
SKU: LHSA-6L-IKO

IKO LHSA6L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M6x1 Thread

€14.46 ex VAT
€14,46
ex VAT

Description

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication
