SKU: LHSA14LSQL14-RS-1-EU

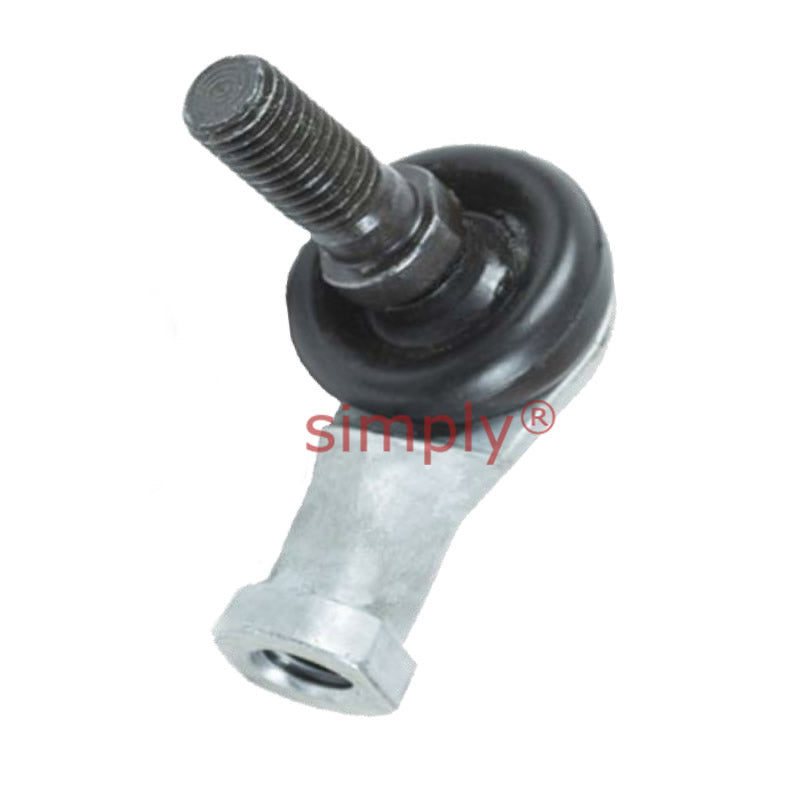

Premier Budget LHSA14L Left Hand Thread Studded Elbow L-Ball End Joint M14x2mm Thread
- Regular price
- €24.45 ex VAT
- Sale price
- €24,45
- Regular price
-
Quantity Price Breaks
Premier Budget LHSA14L Left Hand Thread Studded Elbow L-Ball End Joint M14x2mm Thread
- Regular price
- €24.45 ex VAT
- Sale price
- €24,45
- Regular price
-
Description
L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap-based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti-dust properties.
The ball studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication
Technical
| --- | = | Part Details |
| d | = | 14mm |
| d1 | = | M14x2mm |
| d2 | = | 19mm |
| d3 | = | 38mm |
| l | = | 79.5mm |
| l1 | = | 28mm |
| l2 | = | 21.5mm |
| l3 | = | 56mm |
| S1 | = | 17mm |
| L | = | 75mm |
| L1 | = | 57mm |
| L2 | = | 8mm |
| L3 | = | 26mm |
| D1 | = | 20mm |
| D2 | = | 25mm |
| D3 | = | 35mm |
| S2 | = | 22mm |
| --- | = | Angles and Loading |
| Deflection angle max a | = | 25degrees |
| Load Rating(kN) | = | 19kN |
| Weight(g) | = | 254g |
