SKU: LM.E.12.UU.OP.EU

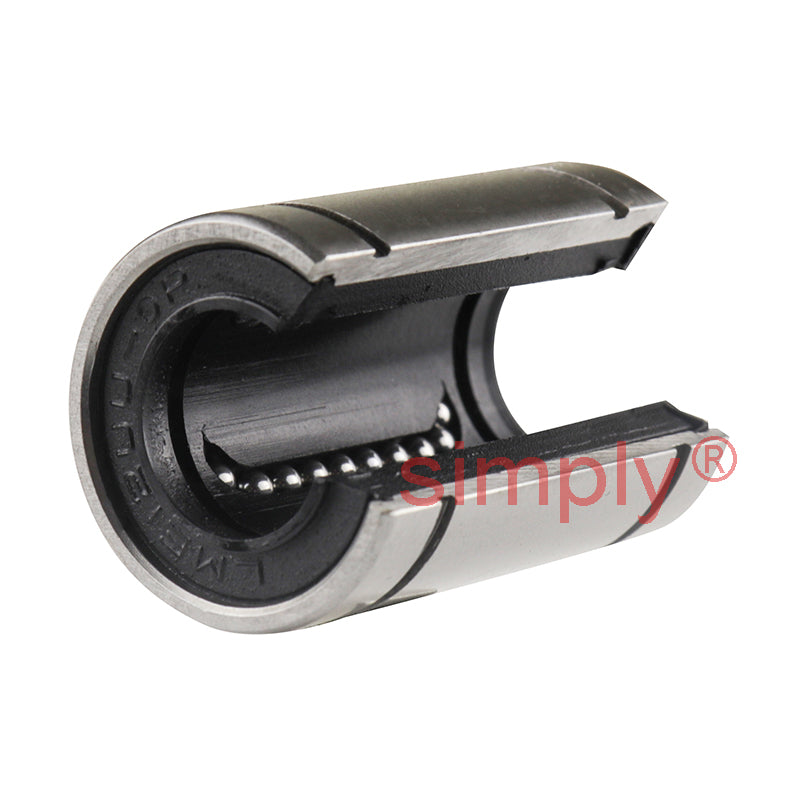

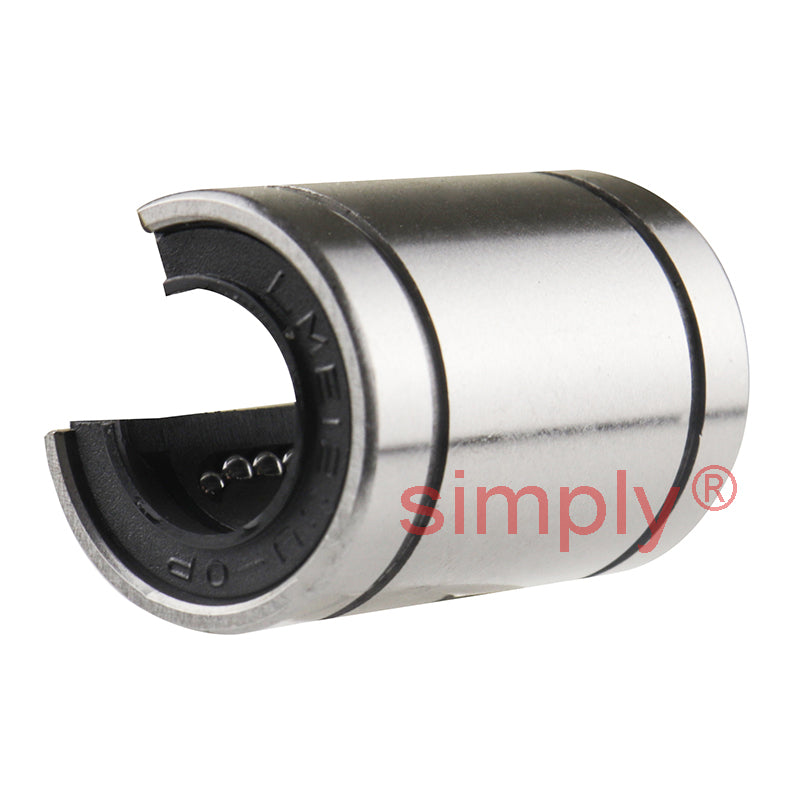

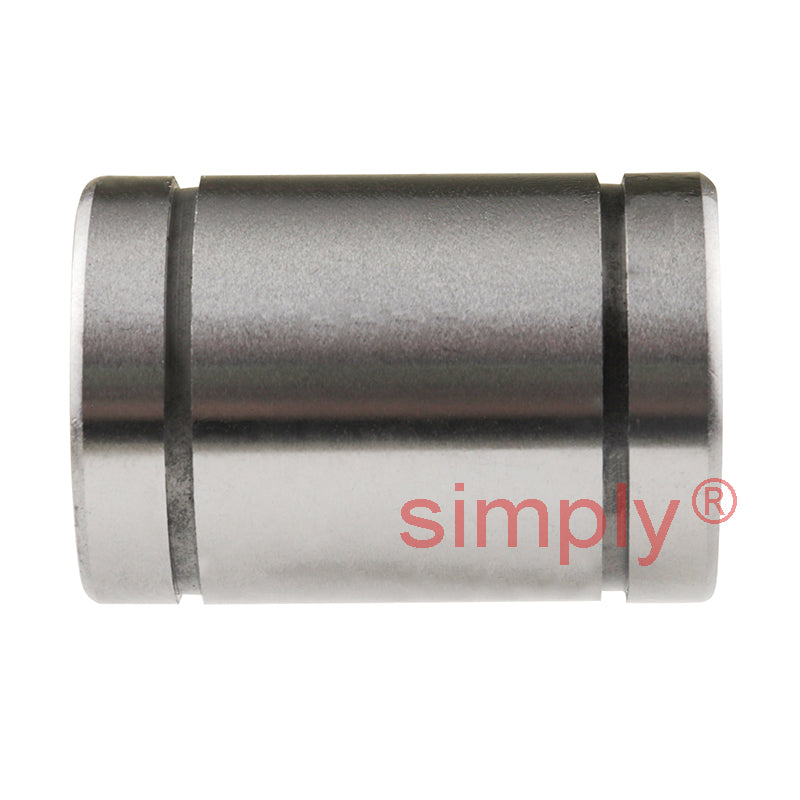

LME12UUOP Open Linear Ball Bushing with Rubber Seals 12x22x32mm
- Regular price
- €12.35 ex VAT
- Sale price
- €12,35
- Regular price
-
Quantity Price Breaks
LME12UUOP Open Linear Ball Bushing with Rubber Seals 12x22x32mm
- Regular price
- €12.35 ex VAT
- Sale price
- €12,35
- Regular price
-
Description
LME-OP European Metric Series Rubber Sealed Open Side Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Technical

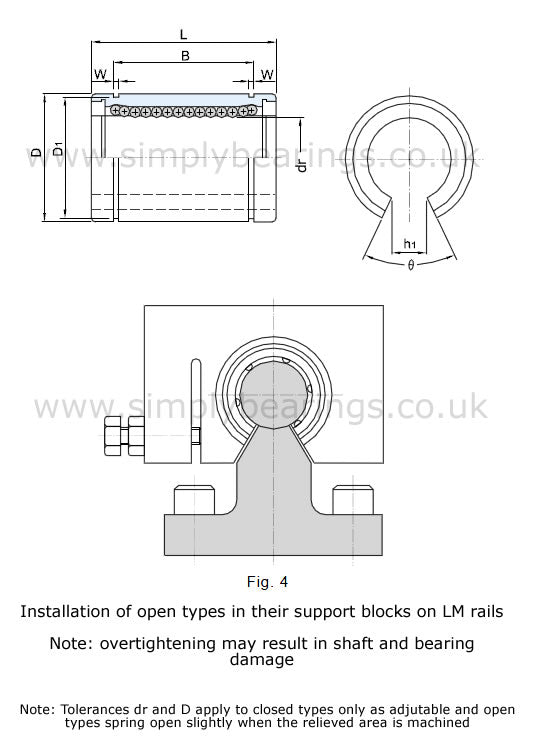

| Inside Diameter dr | = | 12mm Tol +8 to - 0& |
| micro | = | m |
| Outside Diameter D | = | 22mm Tol + 0 to - 9& |
| micro | = | m |
| Length L | = | 32mm Tol + 0 to - 200& |
| micro | = | m |
| W | = | 1.3mm |
| D1 | = | 21mm |
| B | = | 22.9mm |
| h1 | = | 7.5mm |
| Eccentricity | = | 12& |
| micro | = | m |
| Dynamic load C | = | 60 kgf |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 51 kgf | |
| Weight | = | 41 g |
| Number of ball rows | = | 3 |
| Tolerances dr & | = | D |
| Apply to closed type only | = | N/A |
