SKU: LR5205KDDU-INA

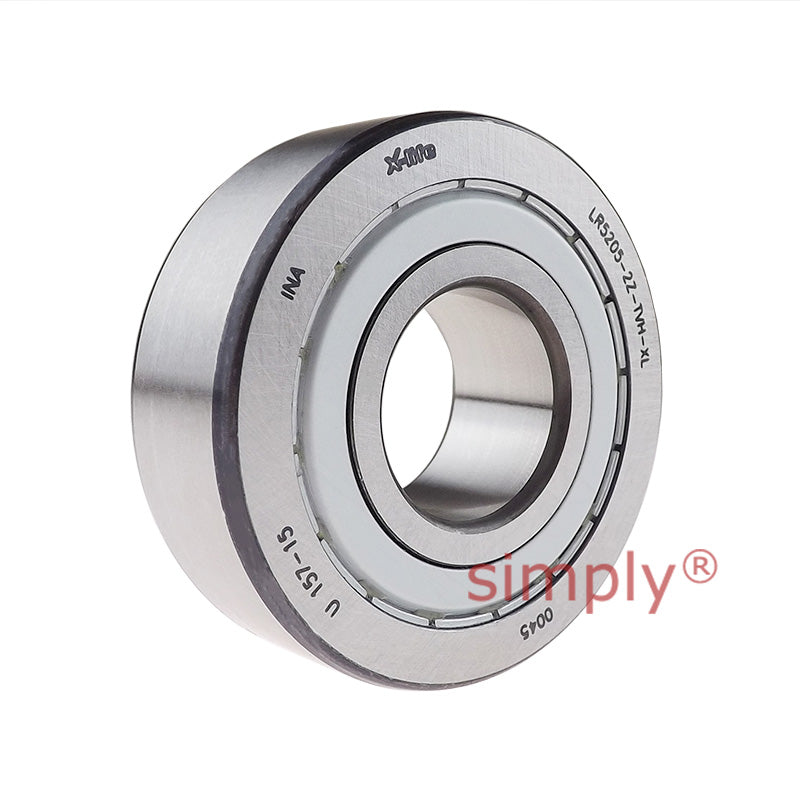

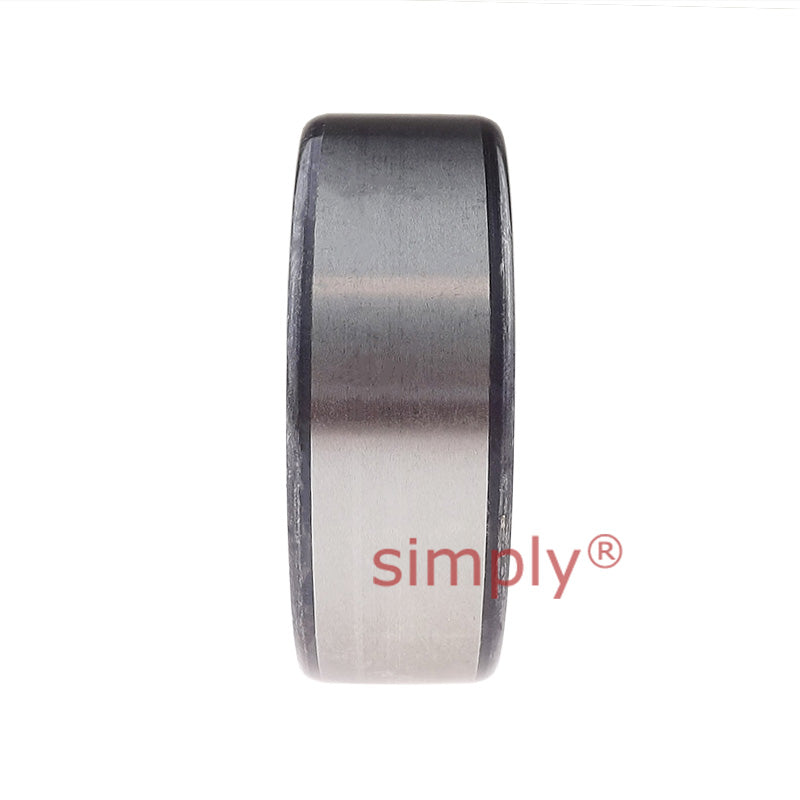

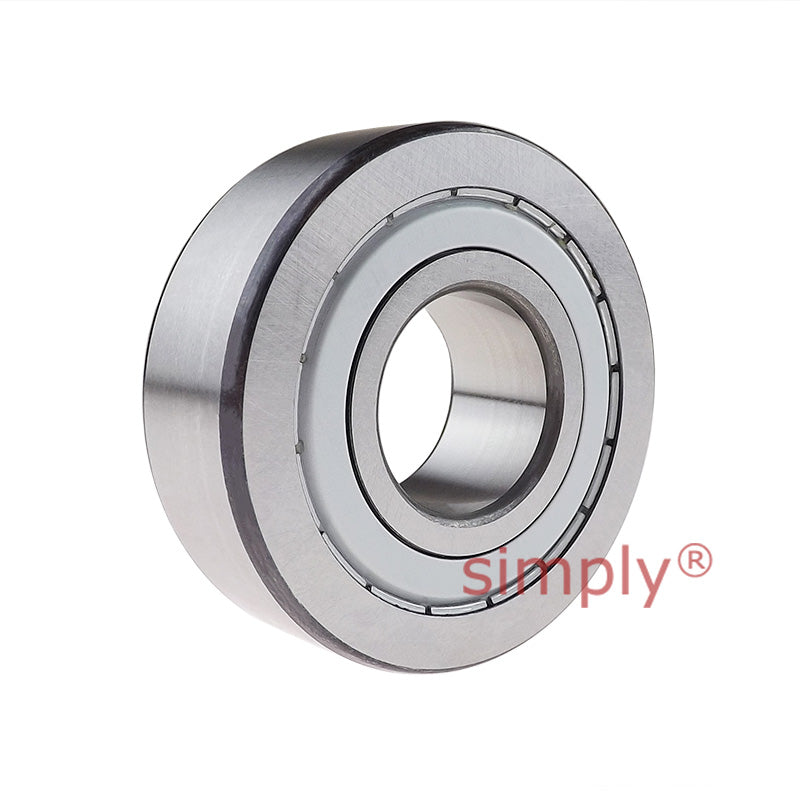

INA LR5205KDDU Double Row Metal Shielded Track Roller Bearing 25x62x20.6mm
- Regular price
- €68.14 ex VAT
- Sale price
- €68,14
- Regular price
-
In stock
Quantity Price Breaks
10
€60.64
19
€57.24
29
€56.56
39
€55.87
49
€55.19
74
€54.51
99
€51.11
199
€50.42
249
€49.74
499
€49.06
999
€47.70
SKU:
LR5205KDDU-INA
INA LR5205KDDU Double Row Metal Shielded Track Roller Bearing 25x62x20.6mm
- Regular price
- €68.14 ex VAT
- Sale price
- €68,14
- Regular price
-

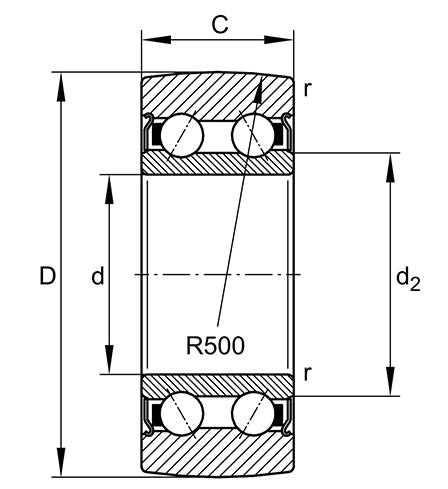

Technical
| D (Outside Diameter) | = | 62mm |
| d (Bore Diameter) | = | 25mm |
| C (Width) | = | 20.6mm |
| C< | = | sub> |
| r w< | = | /sub> |
| (Basic dynamic load rating, radial) | = | 19,700 N |
| C< | = | sub> |
| 0r w< | = | /sub> |
| (Basic static load rating, radial) | = | 15,900 N |
| C< | = | sub> |
| ur w< | = | /sub> |
| (Fatigue load limit, radial) | = | 820 N |
| n< | = | sub> |
| D G< | = | /sub> |
| (Speed on permanent grease lubrication) | = | 6,500 1/min |
| F< | = | sub> |
| r per< | = | /sub> |
| (Permissible dynamic load outer ring, radial) | = | 15,900 N |
| d< | = | sub> |
| 2< | = | /sub> |
| (Diameter of thrust washer) | = | 34.2mm |
| r< | = | sub> |
| min< | = | /sub> |
| (Minimum chamfer dimension) | = | 1 mm |
| R (Radius of outer ring outside profile) | = | 500 mm |
| Weight | = | 0.34 kg |
