SKU: LS100135-MB

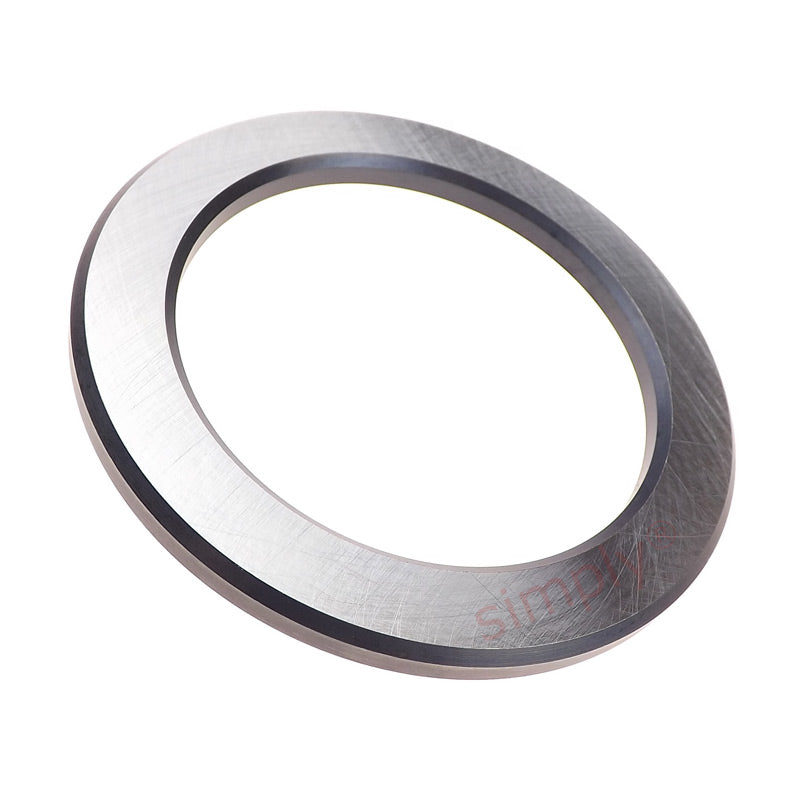

LS100135 Major Brand Raceway Washer Series LS 100x135x7mm
- Regular price
- €56.93 ex VAT
- Sale price
- €56,93
- Regular price
-
Not in stock
Quantity Price Breaks
10
€50.67
19
€47.82
29
€47.25
39
€46.68
49
€46.11
74
€45.54
99
€42.70
199
€42.13
249
€41.56
499
€40.99
999
€39.85
SKU:
LS100135-MB
LS100135 Major Brand Raceway Washer Series LS 100x135x7mm
- Regular price
- €56.93 ex VAT
- Sale price
- €56,93
- Regular price
-
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 100mm |
| d1 | = | 135mm |
| D | = | 135mm |
| D1 | = | 102mm |
| B | = | 7mm |
| r1r2 | = | 1mm |
| Weight | = | 350 g |
