SKU: LS150190-MB

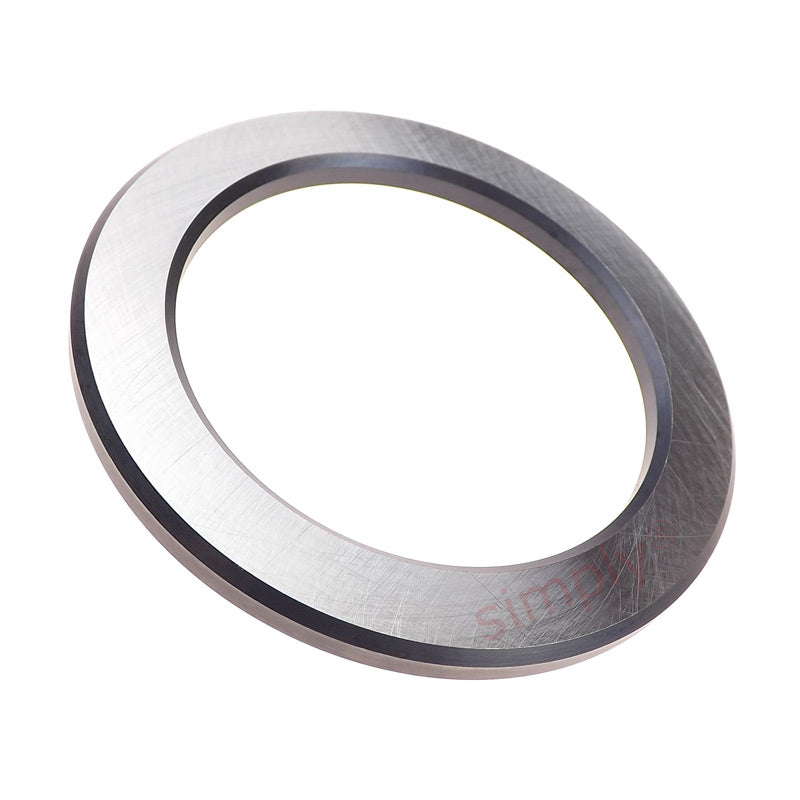

LS150190 Major Brand Raceway Washer Series LS 150x190x9.5mm
- Regular price
- €114.39 ex VAT
- Sale price
- €114,39
- Regular price
-
Not in stock
Quantity Price Breaks
10
€101.81
19
€96.09
29
€94.94
39
€93.80
49
€92.66
74
€91.51
99
€85.79
199
€84.65
249
€83.50
499
€82.36
999
€80.07
SKU:
LS150190-MB
LS150190 Major Brand Raceway Washer Series LS 150x190x9.5mm
- Regular price
- €114.39 ex VAT
- Sale price
- €114,39
- Regular price
-
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 150mm |
| d1 | = | 188mm |
| D | = | 190mm |
| D1 | = | 152mm |
| B | = | 9.5mm |
| r1r2 | = | 1mm |
| Weight | = | 795 g |
