SKU: LS90120-MB

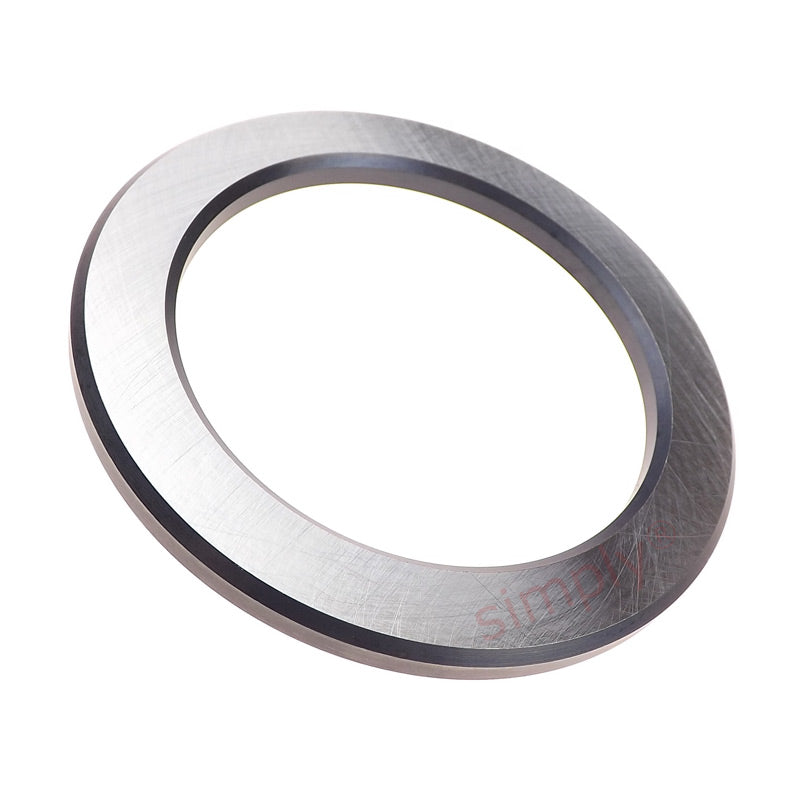

LS90120 Major Brand Raceway Washer Series LS 90x120x6.5mm
- Regular price
- €40.37 ex VAT
- Sale price
- €40,37
- Regular price
-
In stock
Quantity Price Breaks
10
€35.93
19
€33.91
29
€33.51
39
€33.10
49
€32.70
74
€32.30
99
€30.28
199
€29.87
249
€29.47
499
€29.07
999
€28.26
SKU:
LS90120-MB
LS90120 Major Brand Raceway Washer Series LS 90x120x6.5mm
- Regular price
- €40.37 ex VAT
- Sale price
- €40,37
- Regular price
-
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 90mm |
| d1 | = | 120mm |
| D | = | 120mm |
| D1 | = | 92mm |
| B | = | 6.5mm |
| r1r2 | = | 1mm |
| Weight | = | 235 g |
