SKU: M-ASPFL202-NTN

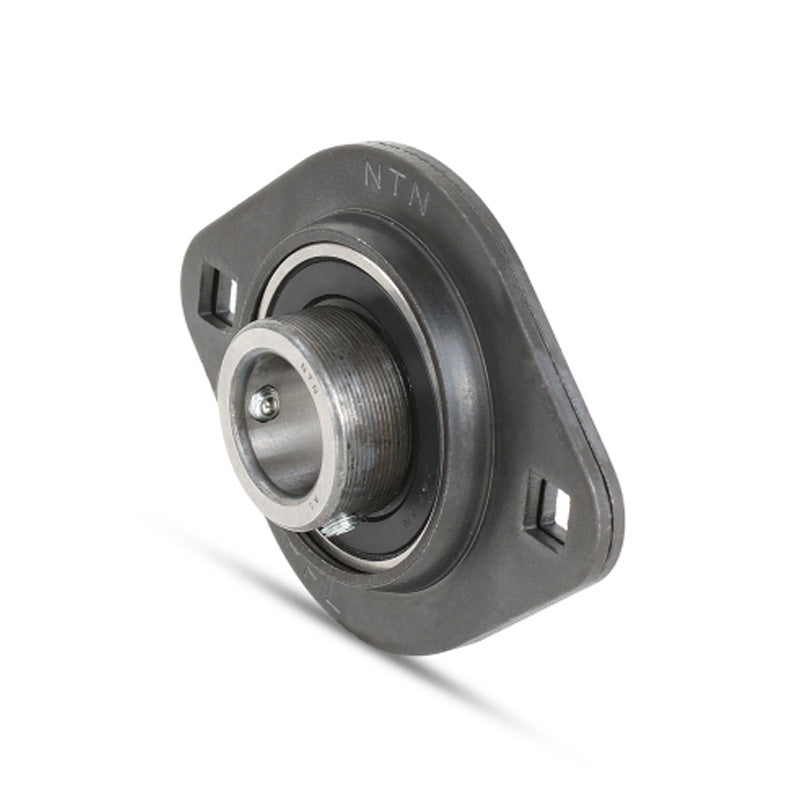

NTN M-ASPFL202 Oval 2 Bolt Pressed Steel Bearing Housing with 15mm Insert - Allow 2-3 Days
- Regular price
- €13.93 ex VAT
- Sale price
- €13,93
- Regular price
-
Not in stock
Quantity Price Breaks
3
€12.40
4
€11.70
9
€11.56
19
€11.42
49
€11.28
99
€11.14
499
€10.45
999
€10.31
1999
€10.17
2999
€10.03
4999
€9.75
SKU:
M-ASPFL202-NTN
NTN M-ASPFL202 Oval 2 Bolt Pressed Steel Bearing Housing with 15mm Insert - Allow 2-3 Days
- Regular price
- €13.93 ex VAT
- Sale price
- €13,93
- Regular price
-
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 15mm |
| H | = | 81mm |
| J | = | 63.5mm |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 4mm | |
| N | = | 7.1mm |
| A | = | 14mm |
| L | = | 59mm |
| B | = | 22mm |
| S | = | 6mm |
| H< | = | sub> |
| 1< | = | /sub> |
| min | = | 49mm |
| Fixing bolt | = | M6 |
| --- | = | Load rating |
| Max load recommended radial | = | 2700 N |
| Max load recommended axial | = | 1350 N |
| --- | = | Unit information |
| Mass | = | 0.2 kg |
